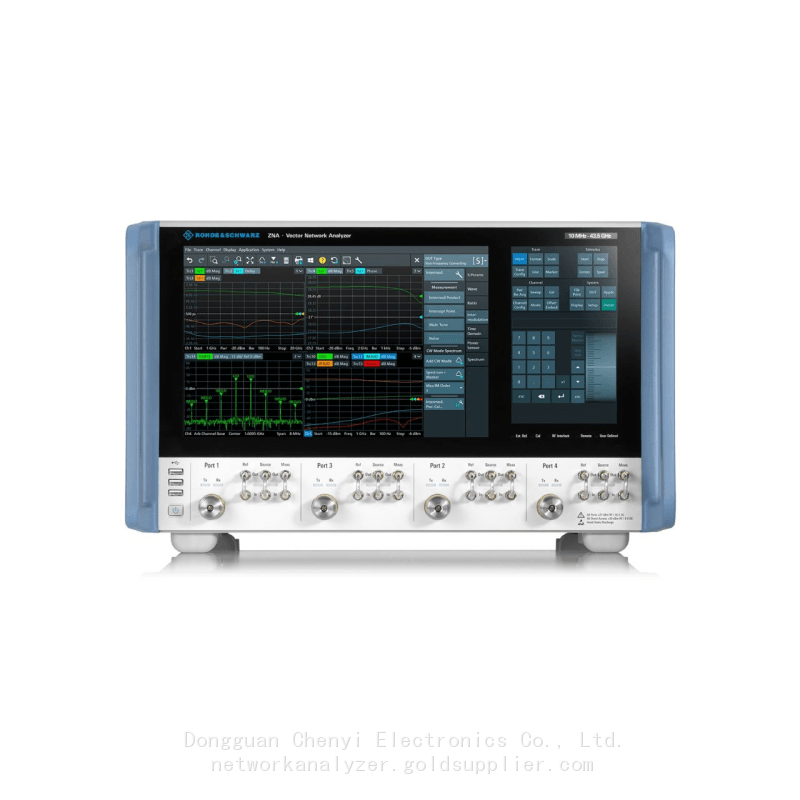

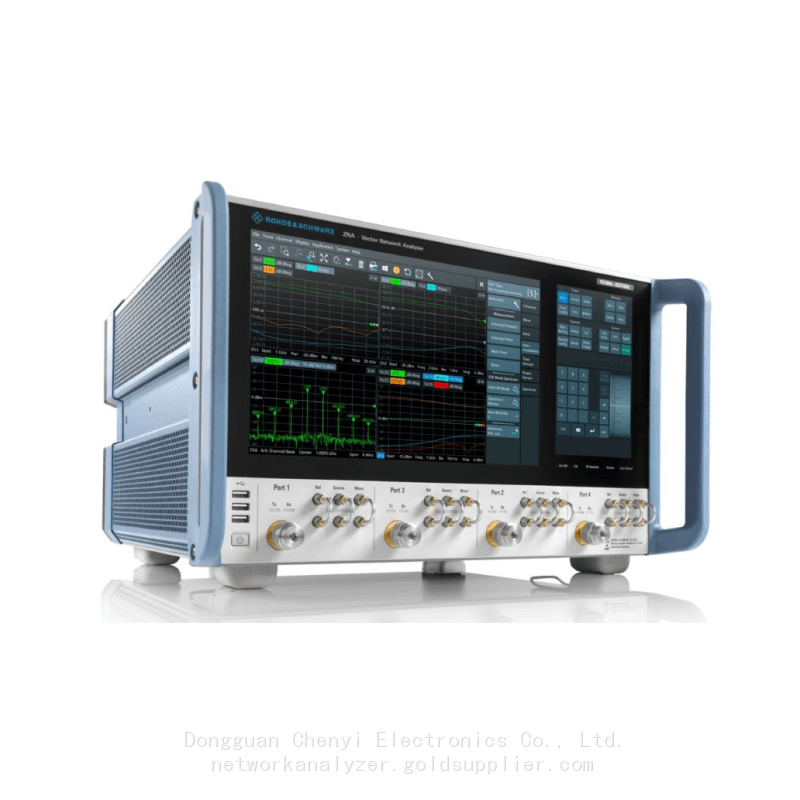

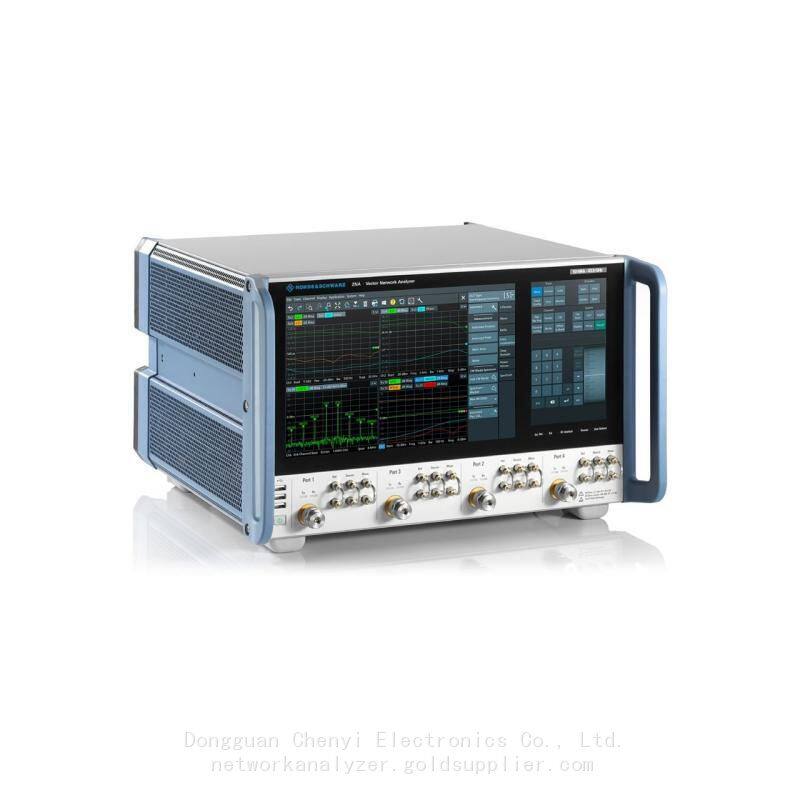

rohde schwarz ZNA50 Vector network analyzers，10 MHz to 50 GHz
rohde schwarz ZNA50 Vector network analyzers，10 MHz to 50 GHz
Key Features:
▶ Frequency Range: 10 MHz ~ 50 GHz
▶ Full Touchscreen
▶ Intuitive and Easy to Use
▶ DUT-Centric Test Wizard
▶ Built-in 4 Signal Source Modes
▶ Configurable Second Local Oscillator for Enhanced Stability
Key facts
10 MHz to 26.5/43.5/50/67 GHz (R&S®ZNA26/43/50/67) 10 MHz to 110 GHz (R&S®ZNA67EXT)
Two or four port models available
Excellent RF-performance
Up to four integrated sources

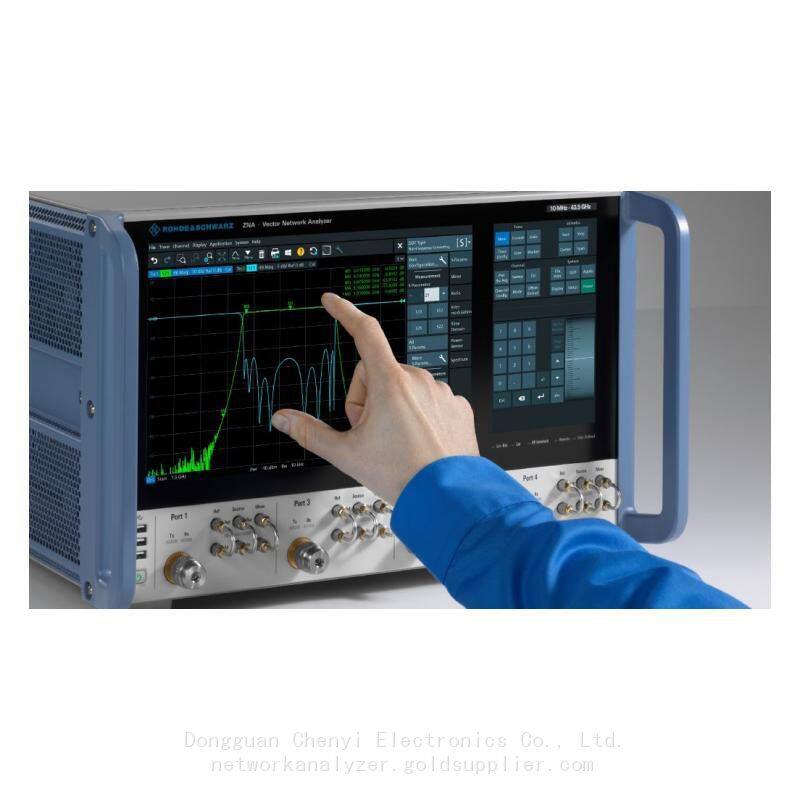

Unique and intuitive touch-only operation
Masters the most challenging measurement tasks
The R&S®ZNA vector network analyzers are the high-end series in the Rohde & Schwarz VNA portfolio: excellent RF-performance is combined with a wide range of software features and a unique hardware concept. The touch-only operation together with the DUT-centric approach makes the R&S®ZNA a powerful, universal and compact measurement system for characterizing passive and active devices.
Available models
Models：R&S®ZNA26 Order number 1332.4500.22
Ports： 2 ports
Frequency：10 MHz to 26.5 GHz
Connectors：3.5 mm(m)
Models：R&S®ZNA26 Order number 1332.4500.24
Ports： 4 ports
Frequency：10 MHz to 26.5 GHz
Connectors：3.5 mm(m)
Models：R&S®ZNA43 Order number 1332.4500.42
Ports： 2 ports
Frequency：10 MHz to 43.5 GHz
Connectors：2.92 mm(m)
Models：R&S®ZNA43 Order number 1332.4500.43
Ports： 2 ports
Frequency：10 MHz to 43.5 GHz
Connectors：2.4 mm(m)
Models：R&S®ZNA43 Order number 1332.4500.44
Ports： 4 ports
Frequency：10 MHz to 43.5 GHz
Connectors：2.92 mm(m)
Models：R&S®ZNA43 Order number 1332.4500.45
Ports： 4 ports
Frequency：10 MHz to 43.5 GHz
Connectors：2.4 mm(m)
Models：R&S®ZNA50 Order number 1332.4500.52
Ports： 2 ports
Frequency：10 MHz to 50 GHz
Connectors：2.4 mm(m)
