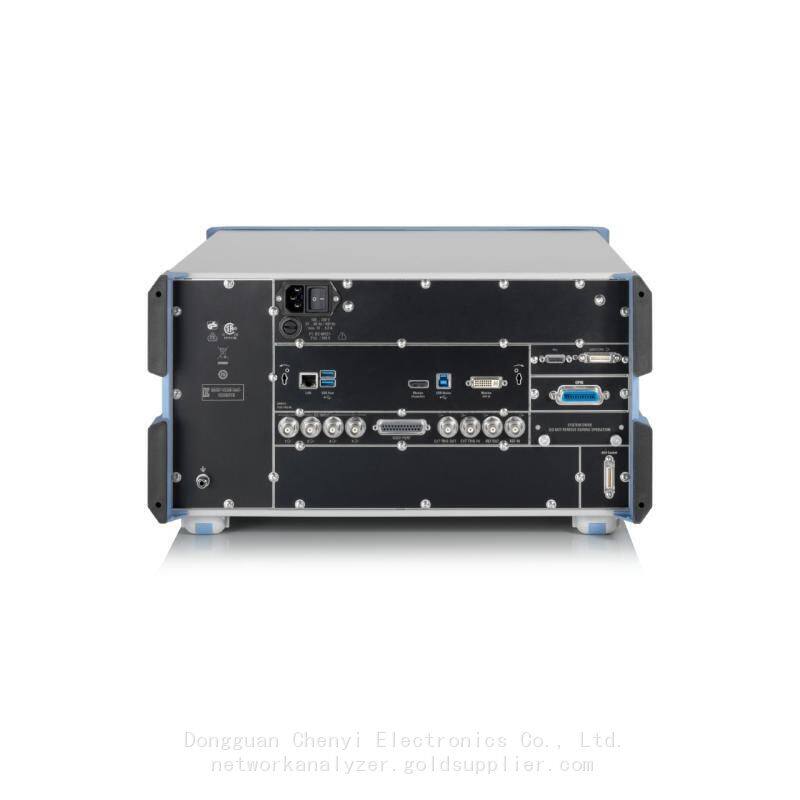

rohde schwarz ZNBT26 Vector network analyzer，100 kHz to 26.5 GHz, 8 ports
rohde schwarz ZNBT26 Vector network analyzer，100 kHz to 26.5 GHz, 8 ports
Main Features
▶ Frequency Range:100 kHz to 26.5 GHz
▶ Number of Ports: 4 ports ~ maximum 24 ports
▶ Can measure multiple devices simultaneously in parallel measurement mode
▶ Complex measurements are performed automatically via dedicated software
▶ Supports automatic calibration for up to 24 ports
Key facts
Frequency range: 9 kHz to 8.5 GHz or 100 kHz to 20/26.5/40 GHz
Up to 24 ports with fully phase coherent receivers
Dynamic range of up to 140 dB
Short sweep times of 2.5 ms (R&S®ZNBT8) for a sweep across 201 points
Network analysis with up to 24 test ports A true multiport vector network analyzer
The R&S®ZNBT is a multiport vector network analyzer with up to 24 fully integrated test ports. The instrument can simultaneously test multiple DUTs or measure one DUT with up to 24 ports. The fully integrated test ports make the R&S®ZNBT a true multiport vector network analyzer, which includes a wide dynamic range, high output power levels and fast measurements. Frequency ranges up to 40 GHz are available.
Available models
Models： R&S®ZNBT8 Order number 1318.7006.24
Ports： 4 to 24
Frequency：9 kHz to 8.5 GHz
Connectors：N (f)
Models： R&S®ZNBT20 Order number 1332.9002.64
Ports： 8 to 24
Frequency：100 kHz to 20 GHz
Connectors：3.5 mm (m)
Models： R&S®ZNBT26 Order number 1332.9002.34
Ports： 8 to 24
Frequency：100 kHz to 26.5 GHz
Connectors：2.92 mm (m)
Models： R&S®ZNBT40 Order number 1332.9002.44
Ports： 8 to 24
Frequency：100 kHz to 40 GHz
Connectors：2.92 mm (m)
