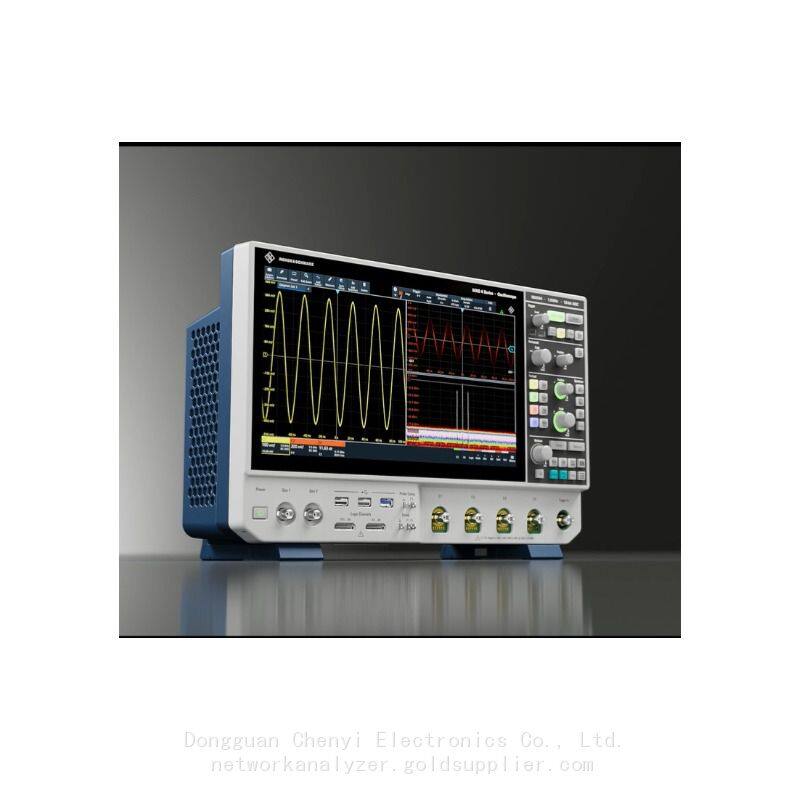

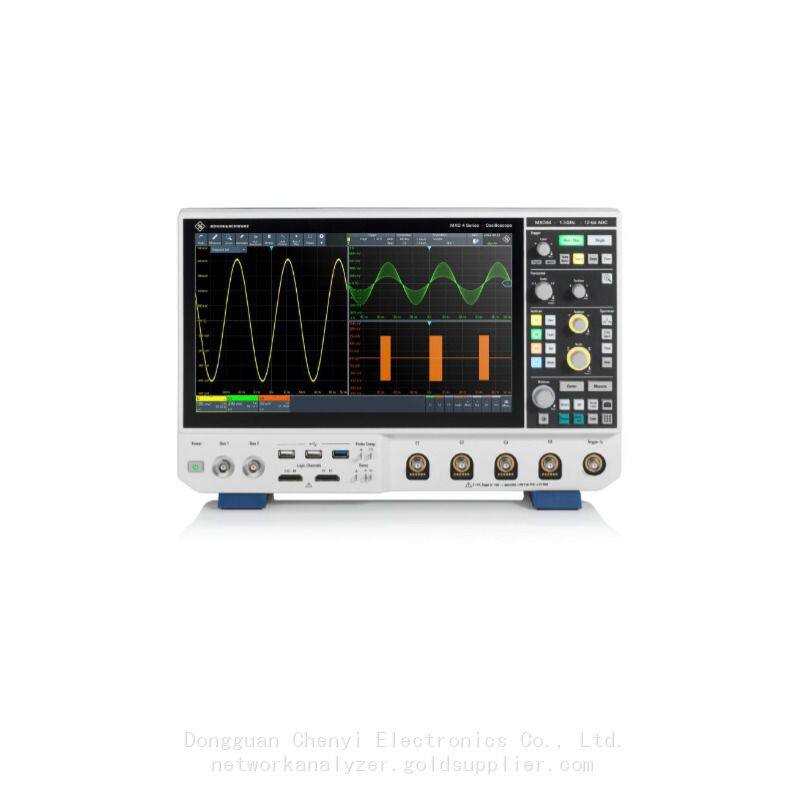

rohde schwarz MXO44 Oscilloscope Option MXO44-245： 500 MHz 4 Channels

rohde schwarz  MXO44 Oscilloscope Option  MXO44-245： 500 MHz 4 Channels

Option  MXO44-242：  200 MHz

Option  MXO44-243：  350MHz

Option  MXO44-245：  500 MHz

Option  MXO44-2410：1 GHz

Option  MXO44-2415：1.5 GHz

Key facts

▶Bandwidth: 200 MHz - 1.5 GHz

▶World’s first oscilloscope with an update rate > 4.5 million waveforms per second and industry leading ▶spectrum acquisition rate of 45,000 FFT/s, with up to 4 spectra

▶Industry-leading system architecture: 18-bit vertical resolution/12-bit ADC, 10-bit ENOB

▶Zone trigger on analog, spectrum and math

▶Deepest in class standard memory: 400 Mpoints

NEXT GENERATION TECHNOLOGY

The R&S®MXO 4 series is the first of a new generation of oscilloscopes that excels in both performance and value. The instruments deliver a once-in-a-decade engineering breakthrough for accelerated insight.

They have the world’s fastest real-time update rate of 4.5 million waveforms/s, meaning engineers can see more infrequent events than with any other instrument. The 12-bit ADC in the R&S®MXO 4 series has 16 times the resolution of traditional 8-bit oscilloscopes at all sample rates for more precise measurements without any compromises. A standard 400 Mpoint acquisition memory on all four channels and an optional 800 Mpoint interleaved memory provide the instrument with up to 100 times the standard memory of comparable instruments.

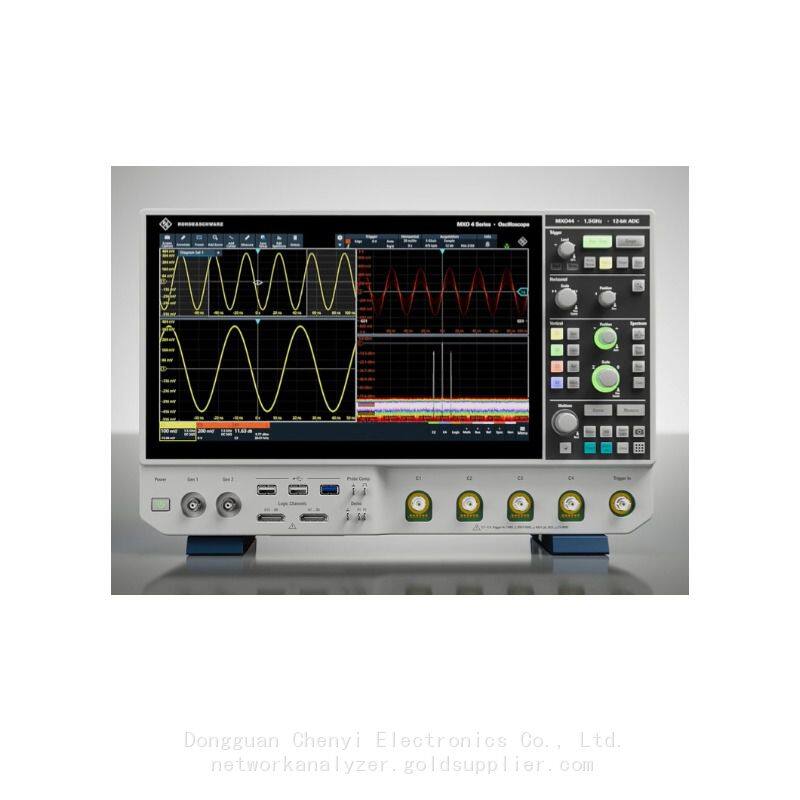

A class above similar oscilloscopes, R&S®MXO 4 series oscilloscopes sport an impressive 13.3" Full HD capacitive touchscreen and an intuitive user interface with a learning curve of less than 15 minutes.

Find signal anomalies quickly

... with unparalleled update rate

▶7>4.5 million waveforms/s.

▶7Up to 90 % real-time signal capture

▶7Fast performance with active automatic measurements, FFT or cursor measurements

▶7Quickly and reliably detect sporadic signal faults

See your signals accurately

...with lowest measurement noise and highest vertical resolution

▶12 bit ADC vertical resolution at all sample rates without compromise

▶18 bit architecture with HD mode

▶Vertical scaling down to 500 μV/div at full bandwidth

▶Industry's highest available offset range of ±5 V at 500 uV/div

Capture more time

with the deepest standard memory

▶Industry's deepest memory of 400 Mpoints per channel

▶Standard segmented memory with 10,000 segments

▶Standard history mode with 10,000 acquisitions

Isolate events

... with high-precision digital trigger

▶Industry's most sensitive trigger. 1/10,000 vertical division

▶Best in class trigger jitter of just 1 ps

▶World's fastest trigger rearm time of <21 ns

▶Adjustable digital trigger filters and hysteresis

▶Zone trigger capability on analog, spectrum and math waveforms

Superior user experience

... with advanced usability designed for touch

▶Quick access to important tools and menu settings

▶R&SeSmartGrid for individual waveform layouts with drag and drop

▶Enhanced touch sensitivity when changing important parameter values

▶Find features and functions faster with the new search menu

▶Remote control access wherever and whenever you need it

Powerful spectrum analysis

... with dedicated RF controls

▶Obtain RF insights into your measurements with up to 45,000 FFT/s

▶Pristine RF characteristics for great spectrum performance

▶Setup and analysis made easy with dedicated RF controls

▶Spectrum and time domain views, all time-correlated with independent controls

▶Automatic measurements such as peak lists,max./min. hold
