Ceyear 1433H Signal Generator 1MHz to 50GHz

Ceyear 1433H Signal Generator 1MHz  to  50GHz

 Signal Generator 1433D  :  1MHz   to  20GHz

 Signal Generator 1433E   :  1MHz   to  26.5GHz

 Signal Generator 1433F   :  1MHz   to   40GHz

 Signal Generator 1433H  :  1MHz   to   50GHz

Product Features

▶ Wider frequency coverage: from 1MHz to 50 GHz

▶ Higher frequency resolution: 0.1Hz

▶ Excellent phase noise performance: -110dBc/Hz@10kHz frequency offset @10GHz carrier(typical）

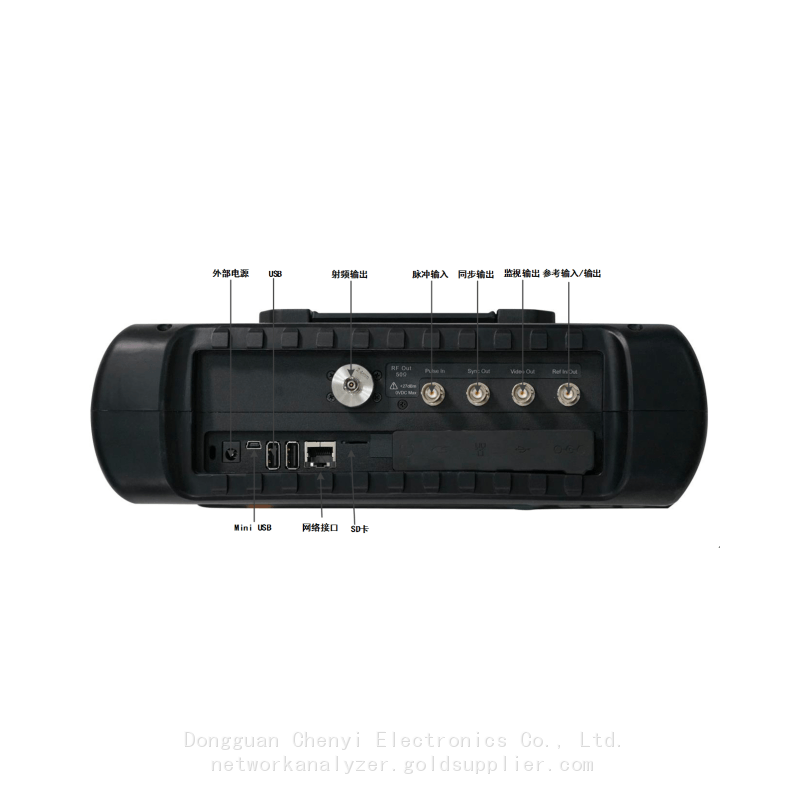

▶ Various auxiliary test interfaces: reference input/output, pulse input, monitoring output, synchronization output etc.

▶ Convenient and fast user operation experience: 8.4-inch large screen with bright LCD, convenient capacitive touch screen operation, integrated design of LCD and touch screen

▶ Strong environmental adaptability: the working temperature range is -10℃~50℃

▶ Flexible power supply mode: can be powered by battery or power adapter

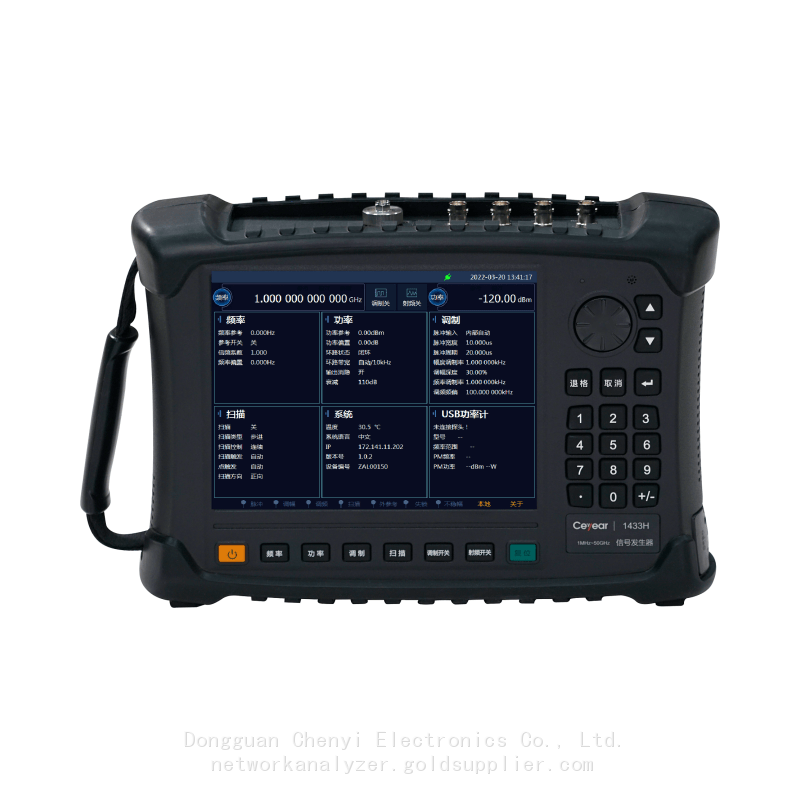

Product Overview

1433 Series signal generator is a hand-held instrument specially designed for field testing by

Ceyear Technology Co., Ltd. It has the functions of CW signal output, FM/AM/Pulse/PM

modulation, large dynamic range amplitude adjustment, step/list sweep etc. The integrated

design of 8.4-inch large capacitive touch screen is convenient for users’ operation.

1433 series signal generator has the characteristics of small size, flexible power supply and

good working environment adaptability, which is very suitable for on-site use. It can be applied

to the field installation, debugging and daily maintenance of fault diagnosis of electronic

integrated system, receiver performance test, communication, navigation and other equipment

test.

Wider frequency coverage

The frequency range of 1433 series signal generator is 1MHz to

20GHz/26.5GHz/40GHz/50GHz, the serialization minimum frequency is as low as 1MHz, and

the highest frequency is as high as 50GHz, which can meet the needs of wide-band testing.

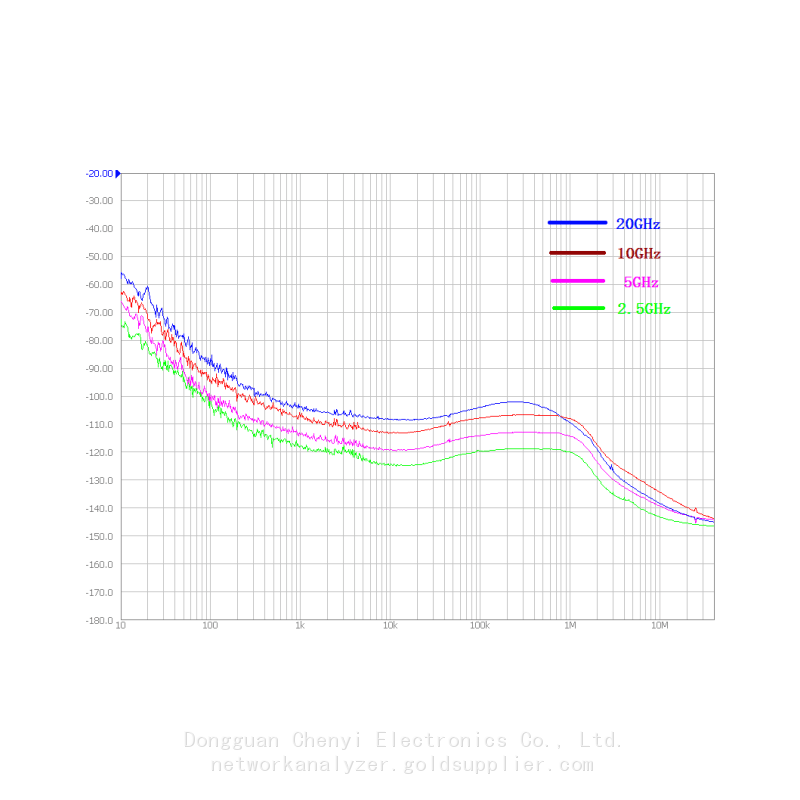

Excellent phase noise performance

1433 Series signal generator SSB phase noise is better than -110dBc/Hz@10kHz frequency

offset @10GHz carrier(typical）, which can meet the test requirements of most application

scenarios.

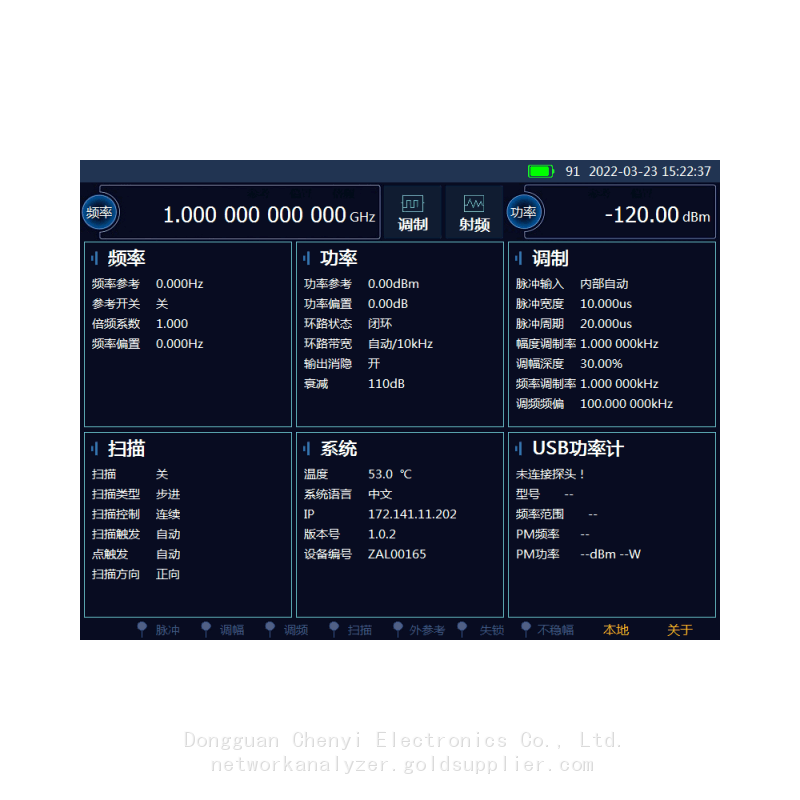

Convenient and fast user operation experience

8.4-inch large screen with high-brightness LCD, 800×600 pixel resolution, convenient

capacitive touch screen operation, multi-window display, clear display of instrument setting

parameters and status information, providing convenient and fast user operation experience.

Typical Application

Electronic system anti- interference performance test

The 1433 series signal generator has a wide output frequency and power range, and has a

variety of analog modulation functions. It can simulate and generate jamming signals in the

actual combat environment during the test of the anti-jamming performance of the electronic

system, which can be used for the test of the anti-jamming performance of the electronic

system.

Receiver performance test and fault troubleshooting

For radar and other electronic equipment receiving performance testing and troubleshooting

applications, 1433 series signal generators provide CW, analog modulated signal output, and

can provide excitation signal simulation.

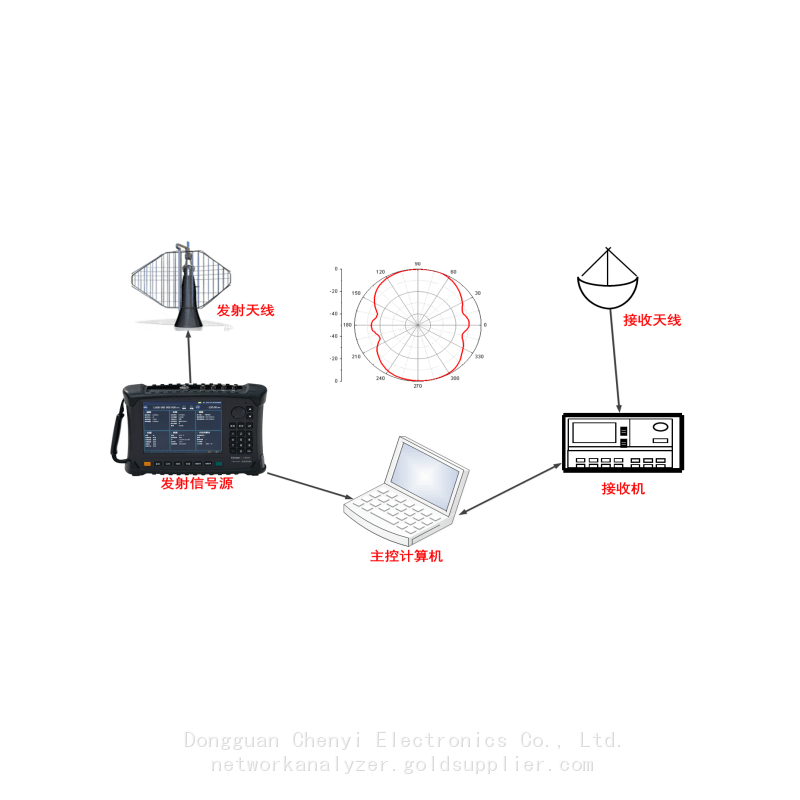

Antenna pattern field test

Receiver under test Demod.

For the field test application of the antenna pattern, the 1433 series signal generator outputs a

signal with known fixed amplitude, which is used to test the indicator of the transmitting

antenna pattern.
