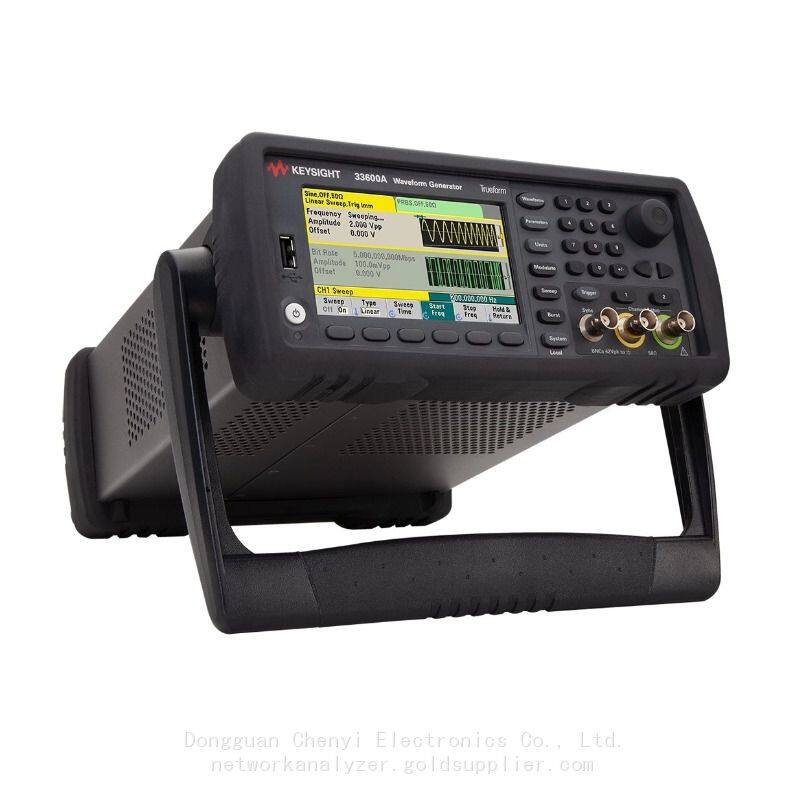

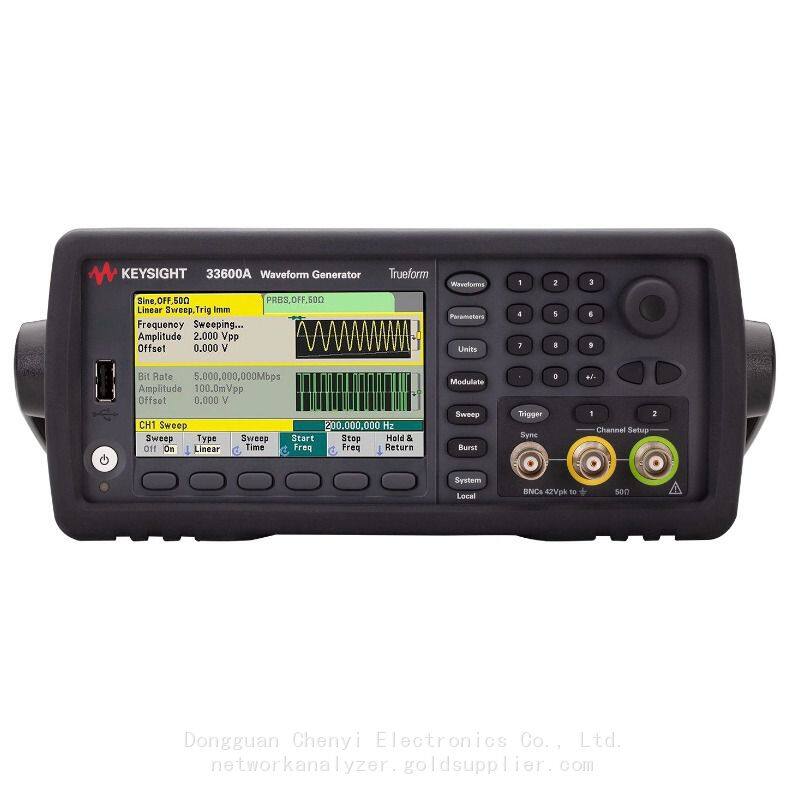

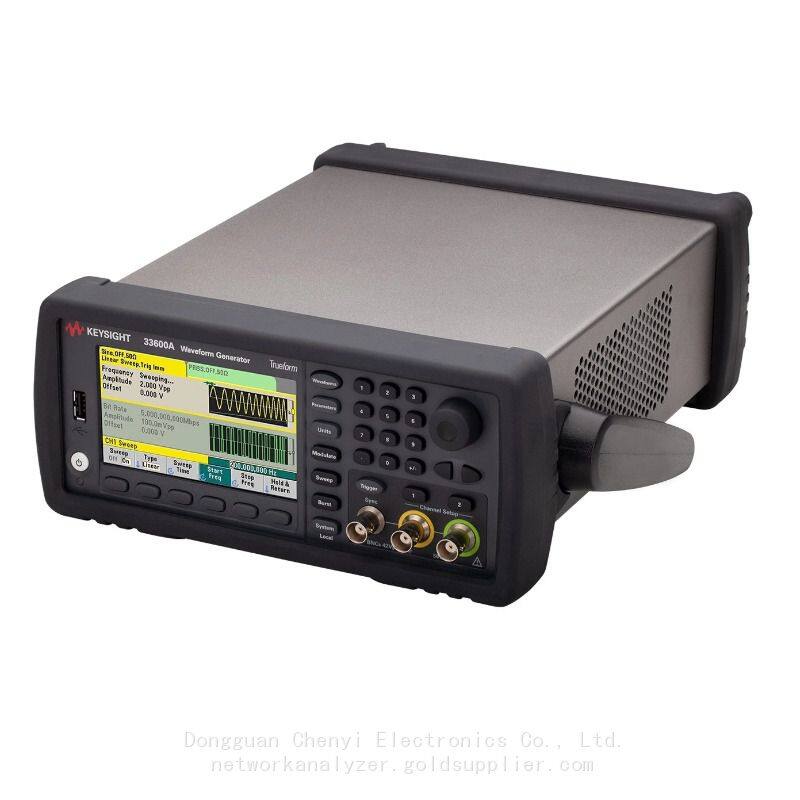

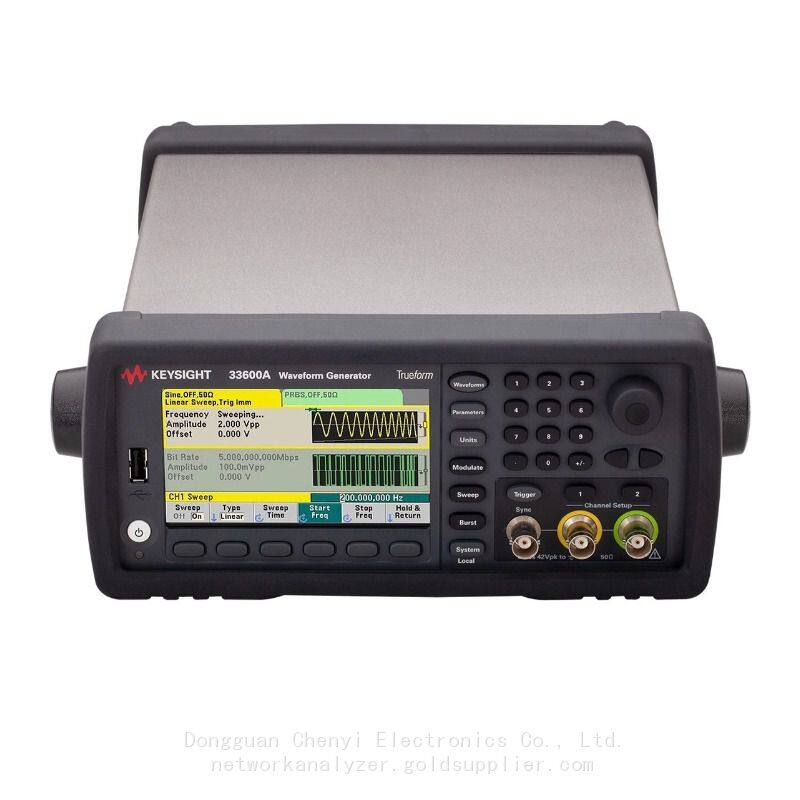

The 33622A provides Keysight’s exclusive Trueform technology that offers unmatched capabilities for

generating a full range of signals for your most demanding measurements.

Highlights

Generate Trueform arbitrary waveforms with less jitter, more fidelity and greater resolution

Exclusive Trueform technology

▶Unmatched capabilities for generating a full range of signals for your most demanding measurements

▶Sine waves with 5x lower harmonic distortion for more pure signals

▶Pulses up to 100 MHz with <1 ps jitter for more precise timing

▶Trueform arbitrary waveforms with sequencing for more accurate representation of user-defined signals

Instrument features

▶1 GSa/s sampling rate for higher time resolution arbitrary waveforms

▶14-bit resolution with 1 mVpp to 10 Vpp amplitude for greater amplitude accuracy

▶4 MSa/channel standard waveform memory, optional 64 MSa/channel for your longest waveforms

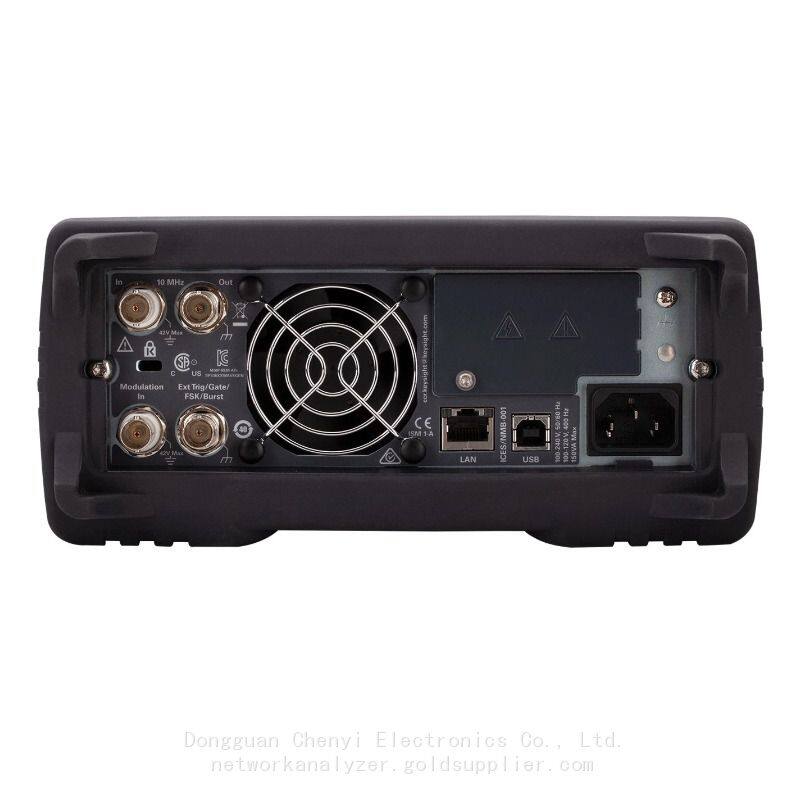

▶USB, LAN (LXI-Core), GPIB optional for quick and easy connectivity to PC or network

Waveform creation and editing

▶Create a waveform from the front panel using the built-in editor

▶Capture a waveform from an oscilloscope and download it to the generator

▶Create a waveform in MATLAB or Microsoft Excel and download it to the generator

▶Download BenchVue Basic app for free to control your instruments

Keysight 33600A Series waveform generators with exclusive Trueform signal generation technology offer more

capability, fidelity, and flexibility than previous generation DDS generators. Easily generate the full range of signals

 you need with confidence that the signal generator is outputting the signals you expect.

The 33622A can be easily upgraded as your needs change.

Modulation and built-in waveforms

17 arbitrary waveforms built-in, including standard waveforms such as sine, square, ramp, PRBS and Gaussian

Noise. As well as specialty waveforms: Cardiac, Haversine, and Lorentz. Built-in modulations include AM, FM,

PM FSK and PWM.

Waveform summing and combining capability

Add noise to your signal for margin and distortion testing using only a single channel. You can create dual-tone

multi-frequency signals without a dual-channel generator, which means you can preserve your budget for other

test needs. On a two-channel model, you can sum and combine up to four signals.

Signal Integrity: Outputting the Signals You Expect

If your generator is introducing spurious signals or harmonics, you’ll have a hard time producing reliable designs.

To be successful, you need to test with clean, precise, low-noise signals. Keysight Trueform function / arbitrary waveform

generators offer the highest signal fidelity so you can generate the exact waveforms you need for your most challenging

 measurements. You can be confident you are seeing your design’s characteristics, and not that

of your waveform generator, in your measurements.

Lowest jitter

With jitter as low as 1 ps, Trueform function / arbitrary waveform generators offer exceptional edge stability. You

can even use them as a system clock for timing and triggering your other instruments. With better jitter performance,

you can place edges more accurately, helping you reduce timing errors in your circuit design.

Lowest harmonic distortion

With total harmonic distortion of just 0.03%, Trueform waveform generators offer up to 5x better fidelity than other

 generators. Clean, spurious-free signals don’t introduce noise or artifacts. See your design’s characteristics, not the

 waveform generator’s, in your measurements.

Trueform Arbs: Generating a Full Range of Signals for the Most Demanding Requirements

Trueform function / arbitrary waveform generators use a technology that plays every point in your signal exactly

as you designed it. That means to test the robustness of your design, you can create a specific signal with noise,

overshoots, spikes and dropouts just where you need them.

Non aliasing

Define any waveform shape and any waveform length using the Trueform arbitrary waveform capability. Play your

 signals as defined, at your exact sample rate, without the chance of missing short-duration anomalies that are critical

 for testing device reliability.

Standard deep memory

If you want to test your design with long, complex waveforms with a variety of anomalies, you need to make sure

your waveform generator has sufficient memory. The 33500B and 33600A Series come standard with 1 M Samples

and 4 M Samples deep memory respectively. Typical DDS generators offer only a fraction of that capacity. In

addition to this, higher memory options up to 64 MSamples are available to handle your most complex waveforms.

Pulse Generator with Fast Edge Times

Create pulses up to 100 MHz with the Trueform function / arbitrary waveform generators. Most DDS-based generators

 offer reduced bandwidth when generating pulses. Trueform waveform generators produce higher harmonic content,

 allowing for rapid transitions. Like a dedicated pulse generator, edge times can be set independently down to 2.9 ns,

which is twice as fast as a typical function generator.

Channel Coupling with Baseband Generation Capability

Channel coupling simplifies the operation of a two-channel function generator. Both channels can be controlled

with a single parameter for phase, amplitude, or frequency, making it simple to create differential or tracking

signals. In addition, IQ signal generation has now been made easier with the IQ Baseband Signal Player for

Trueform function / arbitrary waveform generators.

The IQ Baseband Signal Player configures and controls both channels as if they were a single channel.

It also keepsthe phase of each channel in nominal IQ range. Quickly, go from simulation to signal generation to

test your RF component or system design.

Select the Capabilities You Need Now, Then Upgrade Easily When Your Needs Change

With most waveform generators, you get what you pay for when you buy your instrument. However, with the

33500B and 33600A Series function / arbitrary waveform generators, there are four different models to choose

from so you can purchase the capability you need now and simply upgrade later when your project needs change.

Your investment in test equipment is protected. If you need deeper memory for generating more complex signals,

you can easily add the capability later with software upgrades. And there’s no price penalty for adding the capability later.
