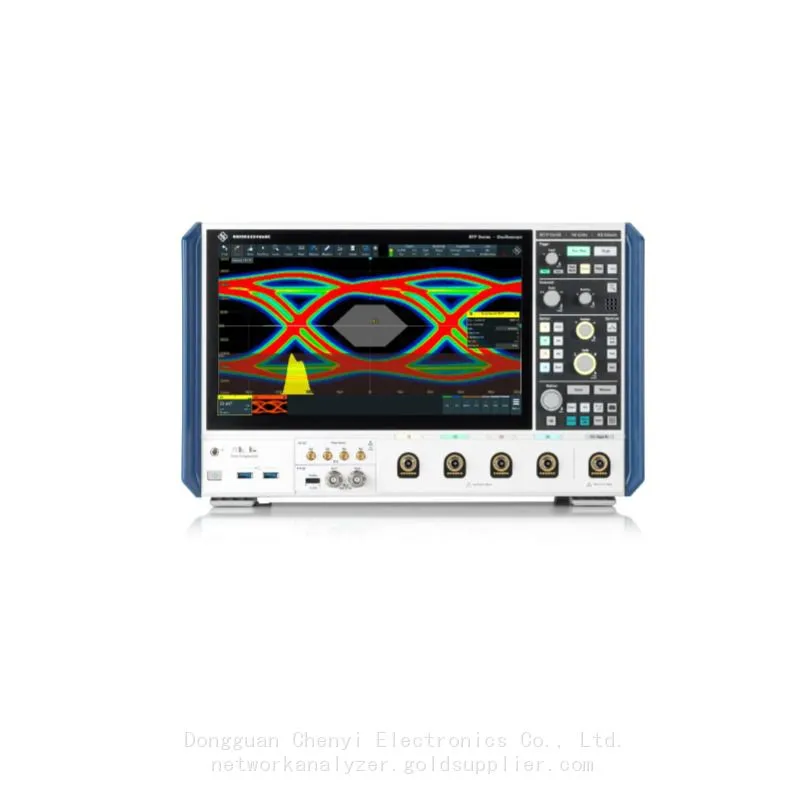

Rohde & Schwarz RTP044B: Redefining High‑Performance Oscilloscopy

In the fast‑paced world of high‑speed digital and RF design, engineers demand oscilloscopes that deliver exceptional signal integrity, ultra‑fast acquisition, and deep analysis capabilities. The Rohde & Schwarz RTP044B stands out as a flagship 4 GHz high‑performance oscilloscope, blending cutting‑edge hardware, real‑time processing, and a user‑centric design to address the most demanding measurement challenges.

1. Core Specifications: Power and Precision

The RTP044B (order number: 1803.7000.04) is the entry model in the RTP‑B series, engineered to balance bandwidth, speed, and resolution.

• Analog Bandwidth: 4 GHz (4 channels)

• Maximum Sample Rate: 40 GSa/s (on all channels)

• Vertical Resolution: 8 bits (up to 16 bits in HD mode)

• Max. Memory Depth: 3 Gpoints per channel

• Display: 13.3‑inch Full HD (1920×1080) capacitive touchscreen

• Impedance: 50 Ω (standard for high‑frequency signals)

2. Key Technological Advantages

Unmatched Signal Integrity

At the heart of the RTP044B is a custom‑designed frontend ASIC and real‑time processing hardware. It maintains a flat frequency response of ±0.25 dB across the entire bandwidth, ensuring accurate signal capture without distortion. A standout feature is real‑time deembedding, which compensates for losses in cables, fixtures, or probes during triggering and acquisition—critical for high‑speed designs where even minor signal degradation can lead to faulty measurements.

Ultra‑Fast Waveform Capture

Time is critical when debugging intermittent faults. The RTP044B delivers a waveform acquisition rate of 750,000 waveforms per second, with a blind time of less than 350 ns between captures. This speed enables engineers to quickly spot rare glitches, noise, or timing errors that slower oscilloscopes might miss.

High‑Definition (HD) Mode

For low‑amplitude signals or noise‑sensitive applications, the 16‑bit HD mode (via digital filtering) reduces noise and increases measurement precision. Unlike traditional oscilloscopes, the RTP044B uses these high‑resolution signals directly for triggering, ensuring that even faint anomalies are detected.

Future‑Proof and Flexible

The RTP044B is built as a scalable platform. It features 4 hardware option slots and supports software upgrades, bandwidth enhancements, and memory expansions. An optional MSO (Mixed‑Signal Oscilloscope) module adds 16 digital channels (400 MHz bandwidth, 5 GSa/s sample rate), enabling simultaneous analysis of analog and digital signals in embedded systems.

User‑Friendly Operation

The 13.3‑inch touchscreen, paired with Rohde & Schwarz’s intuitive GUI, simplifies complex measurements. The compact, silent design saves lab space and fits seamlessly into any workspace, while the unified interface reduces the learning curve for new users.

3. Typical Applications

The RTP044B excels in industries requiring high‑speed and high‑frequency testing:

• High‑Speed Digital Design: Debugging DDR4, USB4, PCIe, and other high‑speed serial buses with protocol decoding and timing analysis.

• RF and Wireless Communication: Testing 5G NR, Wi‑Fi 6/7, and IoT devices with real‑time spectrum analysis and I/Q modulation (via RTP‑K11 option).

• Semiconductor Testing: Validating high‑speed ICs, FPGAs, and SoCs with precise jitter, eye‑diagram, and noise measurements.

• Power Electronics: Analyzing switching transients, voltage/current ripple, and efficiency in high‑power converters and inverters.

4. Conclusion

The Rohde & Schwarz RTP044B is more than an oscilloscope—it is a comprehensive signal integrity solution for modern electronic design. By combining 4 GHz bandwidth, 40 GSa/s sampling, real‑time deembedding, and 16‑bit resolution, it empowers engineers to tackle the most complex measurement tasks with confidence. Whether for lab debugging, production testing, or research, the RTP044B delivers the performance, flexibility, and reliability that Rohde & Schwarz is renowned for.
