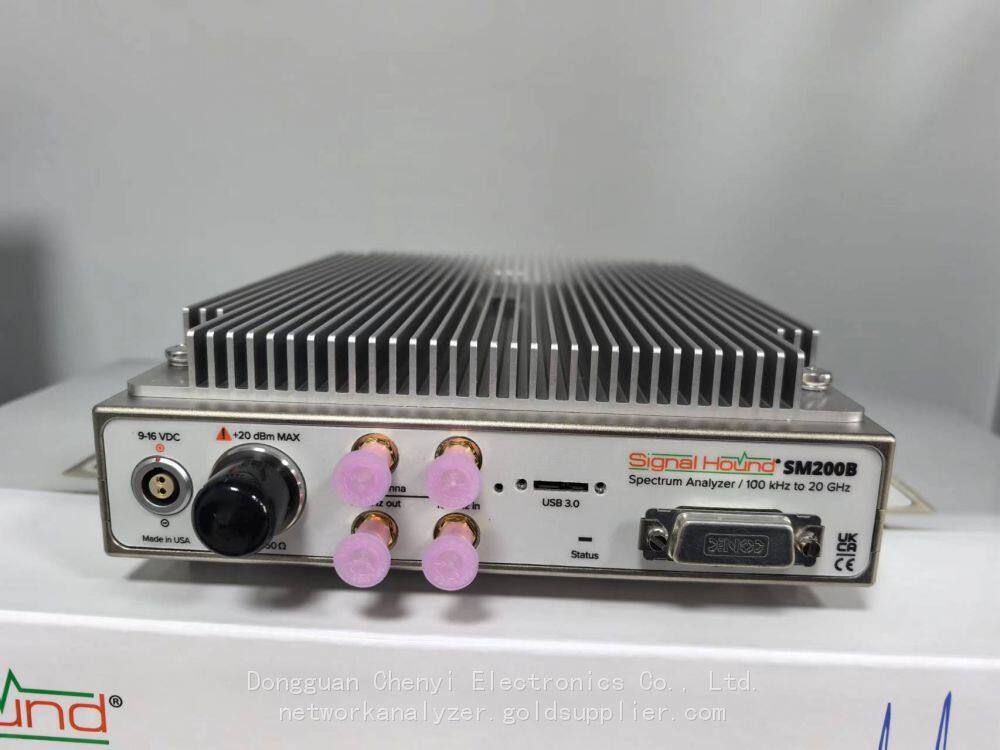

Signal Hound SM200B Real-time Spectrum Analyzer Monitoring Receivers High cost-performance ratio

Affordable Real-Time Spectrum Analysis: Unleashing the Power of the Signal Hound SM200B

I. A Budget-Friendly Game-Changer for Entry-Level RF Testing

For engineers, hobbyists, and small-to-medium enterprises (SMEs) entering the world of RF testing, the barrier to entry has long been high: professional spectrum analyzers often come with prohibitive price tags, while low-cost alternatives sacrifice critical performance. The Signal Hound SM200B Real-Time Spectrum Analyzer changes the game by delivering core real-time analysis capabilities at a fraction of the cost of mid-range competitors. Covering 9kHz to 6GHz (with optional expansion to 8GHz), boasting 40MHz Instantaneous Bandwidth (IBW), and weighing just 2.8kg, this compact instrument makes professional RF testing accessible to everyone from R&D teams to field technicians.

“Our goal with the SM200B was to democratize real-time spectrum analysis,” says Bruce Devine, CEO of Signal Hound. “We focused on the features that matter most for everyday testing—fast capture, reliable measurements, and intuitive software—without overloading users with unnecessary bells and whistles that drive up costs.”

II. Core Specifications That Deliver Real-World Value

1. Versatile Frequency Coverage & Real-Time Capture

• Frequency Range: Standard 9kHz–6GHz (Option 8GHz upgrade available), covering key bands like 2.4GHz/5GHz Wi-Fi, Bluetooth, cellular (4G/LTE), and IoT (LoRa, NB-IoT)

• Real-Time Bandwidth: 40MHz IBW with 1-second I/Q buffer, enabling seamless capture of transient signals (e.g., burst transmissions, interference spikes)

• Scan Speed: Up to 500GHz/s at 30kHz RBW (Hanning window), 5x faster than traditional swept analyzers, ideal for hunting down intermittent issues

2. Reliable Measurement Performance

3. User-Friendly Design & Flexibility

• Software Integration: Works seamlessly with Signal Hound’s Spike software (free download), offering real-time spectrum displays, waterfall plots, and basic modulation analysis

• Connectivity: USB 3.0 for high-speed data transfer to PCs/laptops; no external power supply needed (bus-powered) for on-the-go testing

• Automation Support: Basic API for Python/Matlab scripting, enabling simple automated test sequences for production lines or repetitive lab tasks

• Compact Form Factor: 2.8kg weight and 1U rack-mountable design (with optional kit) make it suitable for lab benches, fieldwork, or small test setups

III. Practical Applications Across Industries

1. IoT Device Development & Testing

For IoT engineers working on LoRa or NB-IoT sensors, the SM200B’s 40MHz IBW and low noise figure enable reliable signal validation. A startup developing smart agriculture sensors reported: “We use the SM200B to test our sensor’s transmission power and modulation quality—its results match our lab’s higher-end analyzer, but we can afford to equip every engineer’s desk with one.” The instrument’s ability to capture short burst signals also helps identify interference from nearby Wi-Fi or cellular networks.

2. Wi-Fi/Bluetooth Troubleshooting

IT teams and network installers rely on the SM200B for on-site RF interference hunting. A managed service provider noted: “When troubleshooting Wi-Fi dead zones, the SM200B’s real-time waterfall plot quickly shows overlapping channels or external interference (e.g., microwave ovens, Bluetooth speakers). It’s lightweight enough to carry through buildings, and the USB power means we don’t need to haul a generator.”

3. Educational & Hobbyist Use

Universities and technical schools increasingly adopt the SM200B for RF engineering courses. A professor of electrical engineering explained: “The SM200B’s balance of performance and affordability lets students experiment with real spectrum analysis—something that was impossible with $50k+ instruments. They learn to identify signals, measure power, and troubleshoot interference, which prepares them for industry jobs.”

4. Small-Scale Production Testing

SMEs manufacturing low-cost RF devices (e.g., Bluetooth earbuds, remote controls) use the SM200B for basic production line testing. The instrument’s simple API allows integration with automated test fixtures, ensuring consistent power output and modulation quality across units—without the cost of a full ATE system.

IV. Buying Guide: Is the SM200B Right for You?

✅ Ideal for:

• IoT, Wi-Fi, and Bluetooth device R&D/testing

• RF hobbyists and educational institutions

• Field technicians and network troubleshooters

• SMEs with budget constraints for lab/test equipment

• Production lines requiring basic pass/fail RF testing

  Consider Upgrading If:

• You need >40MHz IBW (opt for SM435B/SM435C)

• High-precision phase noise or EVM analysis is required (e.g., 5G millimeter-wave)

• You need 24/7 operation in extreme temperatures (SM435B with Option1)

• Advanced EMI/EMC pre-compliance testing is needed (SM435B + EMC software)

V. Usage Tips for Optimal Performance

1. Power Management: For maximum stability, use a powered USB 3.0 hub (instead of bus power) when capturing long I/Q data streams

2. Calibration: Perform a quick self-calibration (via Spike software) before critical tests to ensure amplitude accuracy

3. Software Updates: Regularly update Spike software (free) to access new features—2024’s V2.2 update added improved IoT signal decoding for LoRa

4. Accessories: Pair with a low-loss RF cable (e.g., RG-316) and basic attenuator (for high-power signals) to protect the instrument and improve measurement accuracy

Conclusion

The Signal Hound SM200B fills a critical gap in the RF testing market: an affordable, easy-to-use real-time spectrum analyzer that doesn’t compromise on core performance. It’s not designed to replace high-end instruments for cutting-edge millimeter-wave or aerospace testing—but for the vast majority of everyday RF tasks (IoT development, Wi-Fi troubleshooting, education, small-scale production), it delivers professional-grade results at a price point that’s accessible to teams of all sizes.

Whether you’re an engineer building your first RF device, a technician troubleshooting on-site, or an educator teaching the next generation of RF specialists, the SM200B proves that you don’t need to spend six figures to get reliable, real-time spectrum analysis. It’s a tool that empowers innovation by making RF testing available to everyone.
