1. Introduction

1.1 Overview

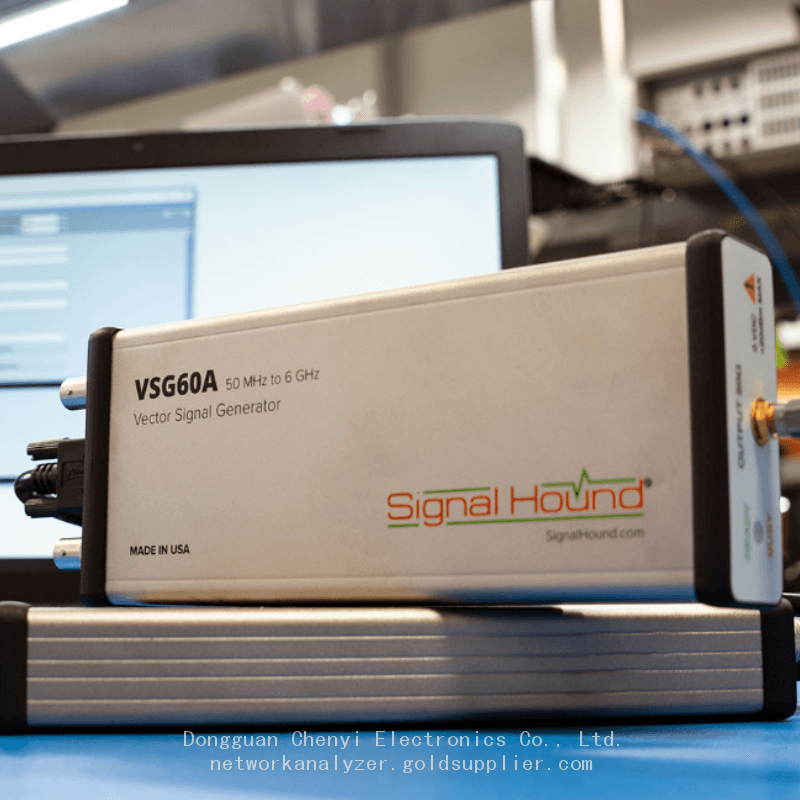

The Signal Hound VSG60A is a high-performance, compact vector signal generator designed to meet the rigorous demands of advanced RF and millimeter-wave (mmWave) testing, research, and development. Covering an extended frequency range of 9 kHz to 60 GHz with a 2 GHz real-time bandwidth (RTBW), the VSG60A delivers professional-grade signal generation capabilities for emerging technologies such as 5G FR2, automotive radar (77/81 GHz), satellite communications, and aerospace/defense systems. Its USB-powered design, seamless integration with Spike® RF analysis software, and exceptional signal fidelity make it an ideal solution for both lab-based R&D and field testing applications.

1.2 Scope of This Manual

This manual provides comprehensive information on the VSG60A, including technical specifications, key features, hardware installation, software setup, basic operation, application scenarios, maintenance, and troubleshooting. It is intended for engineers, technicians, researchers, and educators who use the VSG60A for RF/microwave signal generation and testing.

1.3 Safety Information

• Before operating the VSG60A, read all safety instructions and specifications to avoid equipment damage or personal injury.

• Operate the device only within the specified environmental conditions (temperature: -10°C to 55°C; humidity: 10% to 90% non-condensing).

• Use only the recommended power sources (USB 3.2 or optional 12V DC power supply) to prevent electrical damage.

• Avoid exposing the device to extreme temperatures, moisture, dust, or physical shock.

• Do not disassemble the device without authorization; contact Signal Hound technical support for repairs.

• When connecting RF cables, ensure proper mating to avoid damage to the RF connectors. Use external attenuators when testing high-power devices to protect the VSG60A’s RF front end.

2. Technical Specifications

3. Key Features

3.1 Extended Frequency Coverage for mmWave Applications

The VSG60A covers 9 kHz to 60 GHz, enabling comprehensive testing across conventional RF bands and critical mmWave spectrums (e.g., 5G FR2, 77/81 GHz automotive radar, Ka/Q/V-band satellite communications). It maintains stable performance and consistent signal quality across the entire frequency range, eliminating the need for multiple specialized signal generators.

3.2 High Real-Time Bandwidth for Wideband Signals

With a 2 GHz RTBW, the VSG60A generates high-fidelity wideband signals required for modern standards and complex systems. It supports 5G FR2 signals with 400 MHz channel bandwidth (per 3GPP) and wideband radar waveforms (e.g., FMCW with large chirp bandwidths), ensuring minimal distortion for accurate simulation of real-world operating conditions.

3.3 Exceptional Signal Fidelity

Ultra-low phase noise and low harmonic distortion (<-50 dBc typical) ensure precise signal generation, critical for testing sensitive receivers and characterizing RF components (amplifiers, filters, mixers). High power accuracy guarantees reliable and repeatable test results.

3.4 Comprehensive Modulation Capabilities

Supports a full suite of analog and digital modulation formats, as well as custom IQ waveform playback. Pre-defined templates for 5G NR, Wi-Fi 7, and automotive radar simplify setup for common testing scenarios. The 16 GSamples waveform memory enables playback of pre-recorded real-world signals for realistic scenario simulation.

3.5 Compact, Portable Design

USB-powered and lightweight (1.2 lbs), the VSG60A is ideal for field testing (e.g., 5G FR2 base station deployment, outdoor radar propagation studies) where traditional benchtop equipment is impractical. Its rugged enclosure withstands transportation and harsh testing environments.

3.6 Seamless Integration with Spike Software

Fully integrated with Signal Hound’s Spike RF analysis software, providing a unified interface for signal generation and spectrum analysis (when paired with Signal Hound spectrum analyzers). Spike offers intuitive tools for signal configuration, waveform editing, and real-time monitoring. Support for Signal Hound’s SDK enables custom automation in Python, C/C++, or .NET.

4. Hardware Installation

4.1 Unpacking and Inspection

Upon receiving the VSG60A, carefully unpack the package and verify that all components are present and undamaged. The standard package includes:

• Signal Hound VSG60A vector signal generator

• USB 3.2 Type-C cable

• Quick Start Guide

• Calibration Certificate

If any components are missing or damaged, contact Signal Hound customer support immediately.

4.2 Hardware Connections

1. Power Connection: Connect the USB 3.2 Type-C cable to the VSG60A’s USB port and the other end to a compatible laptop or USB power adapter. For extended field use, use an optional 12V DC power supply.

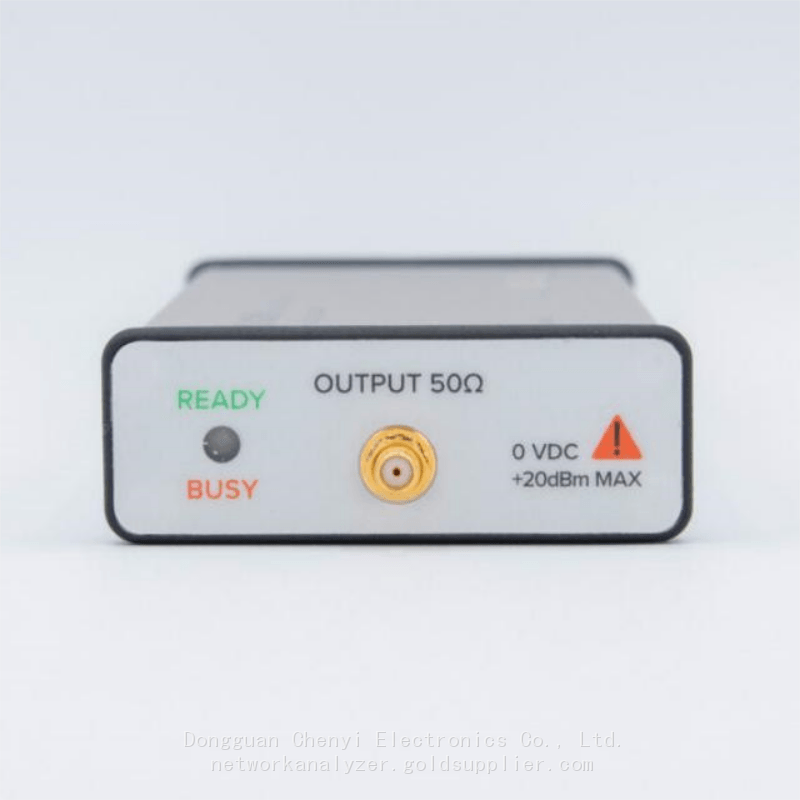

2. RF Connection: Connect an RF cable (SMA male) to the VSG60A’s RF Output port. Use an external attenuator if connecting to high-power devices to protect the VSG60A’s RF front end.

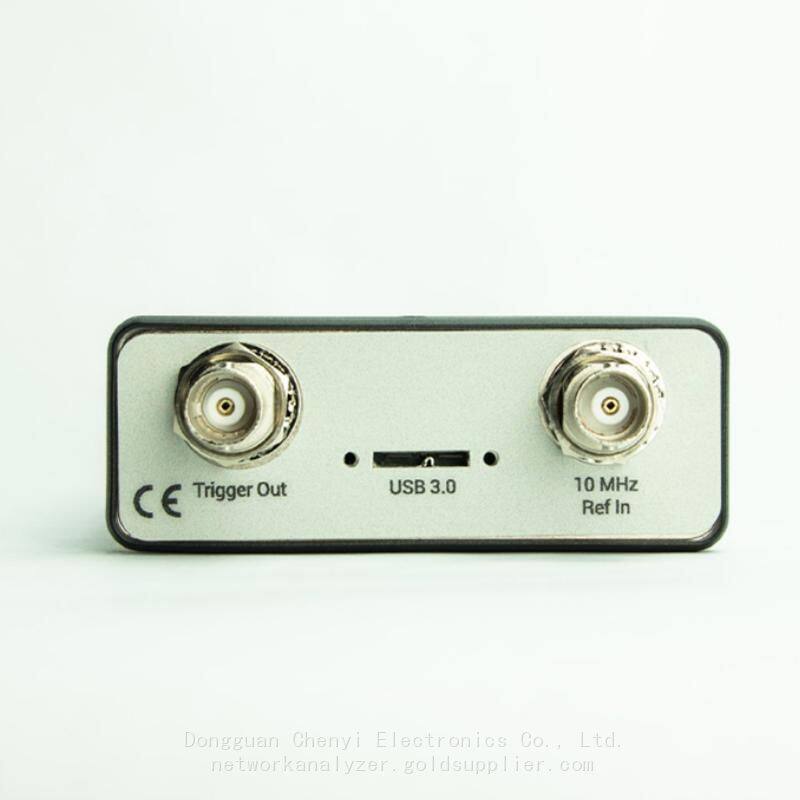

3. Reference Connection (Optional): For enhanced frequency stability, connect an external 10 MHz reference source to the 10 MHz Reference In port. To share the VSG60A’s internal reference, connect the 10 MHz Reference Out port to other test equipment.

4. Device Under Test (DUT) Connection: Connect the other end of the RF cable to the DUT’s RF input port. Ensure all connections are secure to avoid signal loss or reflection.

4.3 Environmental Requirements

Operate the VSG60A in a clean, dry environment with adequate ventilation. Avoid direct sunlight, extreme temperatures, and high humidity. Ensure the device is placed on a stable surface to prevent physical damage.

5. Software Setup

5.1 System Requirements

To run Spike software and control the VSG60A, your computer must meet the following minimum requirements:

• Operating System: Windows 10/11 (64-bit) or Linux (Ubuntu 20.04 LTS or later, 64-bit)

• Processor: Intel Core i5 or equivalent

• RAM: 8 GB or more

• USB Port: USB 3.2 Type-C (for communication and power)

• Hard Disk Space: 10 GB or more free space

5.2 Installing Spike Software

5. Download the latest version of Spike software from the Signal Hound website (www.signalhound.com).

6. Run the installer and follow the on-screen instructions to complete the installation. For Linux users, follow the terminal commands provided in the download package.

7. Restart your computer after installation to ensure all drivers are properly loaded.

5.3 Connecting VSG60A to Spike Software

8. Power on the VSG60A by connecting it to your computer via the USB 3.2 Type-C cable.

9. Launch Spike software. The software will automatically detect the VSG60A. If not detected, click "Tools" > "Device Manager" and select "VSG60A" from the list of available devices.

10. Once connected, the VSG60A status will be displayed as "Ready" in the Spike interface, indicating successful communication.

6. Basic Operation

6.1 Navigating the Spike Interface for VSG60A

The Spike interface for VSG60A consists of four main sections:

• Device Control Panel: Displays VSG60A status, frequency, power, and modulation settings.

• Waveform Editor: Used to create or import custom IQ waveforms.

• Modulation Settings: Configures analog/digital modulation parameters.

• Signal Monitor: Displays real-time signal waveform and spectrum (when paired with a Signal Hound spectrum analyzer).

6.2 Generating a Basic CW Signal

11. In Spike, select "Signal Generation" > "CW" from the main menu.

12. Set the desired frequency (e.g., 28 GHz) in the "Frequency" field.

13. Set the output power (e.g., 0 dBm) in the "Power" field. Adjust the attenuator if needed.

14. Click the "Start" button to generate the CW signal. The status indicator will turn green, confirming signal generation.

15. To stop the signal, click the "Stop" button.

6.3 Configuring Digital Modulation (e.g., 5G NR)

16. Select "Signal Generation" > "Digital Modulation" > "5G NR" from the main menu.

17. In the 5G NR configuration window, set the band (e.g., n257 for 28 GHz), channel bandwidth (e.g., 400 MHz), modulation type (e.g., 256QAM), and other parameters per 3GPP specifications.

18. Verify the settings and click "Apply" to save.

19. Click "Start" to generate the 5G NR signal. Use the Signal Monitor to view the signal waveform and spectrum.

6.4 Playing Back a Custom IQ Waveform

20. Select "Signal Generation" > "IQ Waveform Playback" from the main menu.

21. Click "Import" to load a custom IQ waveform file (supported formats: .wav, .iq, .bin).

22. Set the playback sample rate and repeat mode (single shot or continuous).

23. Adjust the output power and click "Start" to begin waveform playback.

7. Application Scenarios

7.1 5G FR2 (Millimeter-Wave) Testing

Ideal for 5G FR2 terminal device R&D (smartphones, CPEs), base station component testing (antenna arrays, beamforming modules), and network deployment optimization. Generates compliant 5G NR signals to verify receiver sensitivity, EVM, and spectral compliance.

7.2 Automotive Radar Testing

Supports 77/81 GHz automotive radar receiver testing, multi-target simulation, and anti-interference performance verification. Generates high-fidelity FMCW signals with large chirp bandwidths to test distance measurement accuracy and speed resolution.

7.3 Satellite & Space Communication Testing

Used for testing satellite-borne transceivers, ground station equipment, and space communication protocols (Ka/Q/V bands). Simulates satellite downlink/uplink signals to verify receiving sensitivity and transmission quality.

7.4 Aerospace & Defense Applications

Suitable for military communication system testing, UAV-borne radar/communication testing, and electronic warfare (EW) simulation. Generates encrypted, anti-jamming, and jamming signals to test equipment reliability in complex electromagnetic environments.

7.5 Academic Research & Education

A cost-effective platform for 6G precursor research, RF/microwave education, and student innovation projects. Enables hands-on experiments on mmWave signal generation, modulation, and propagation.

8. Maintenance & Calibration

8.1 Routine Maintenance

• Keep the VSG60A clean and free of dust. Use a dry, lint-free cloth to wipe the exterior periodically.

• Inspect RF connectors regularly for damage or wear. Replace damaged cables or connectors immediately.

• Avoid exposing the device to liquids or corrosive substances.

• Store the device in a dry, temperature-controlled environment when not in use.

8.2 Calibration

To ensure optimal performance, the VSG60A should be calibrated annually by Signal Hound or an authorized calibration service provider. Calibration includes verification of frequency accuracy, power accuracy, phase noise, and modulation performance. A calibration certificate will be provided upon completion.

9. Troubleshooting

If the issue persists after following the above solutions, contact Signal Hound technical support.

10. Technical Support & Warranty

10.1 Technical Support

Signal Hound provides comprehensive technical support for the VSG60A. For assistance, contact us via:

• Website: www.signalhound.com/support

• Email: support@signalhound.com

• Phone: +1 (503) 533-5800 (Monday–Friday, 8:00 AM–5:00 PM PST)

10.2 Warranty

The Signal Hound VSG60A comes with a 2-year limited warranty from the date of purchase. The warranty covers defects in materials and workmanship. It does not cover damage caused by improper use, abuse, unauthorized modification, or environmental factors. For warranty claims, contact Signal Hound with your product serial number and proof of purchase.
