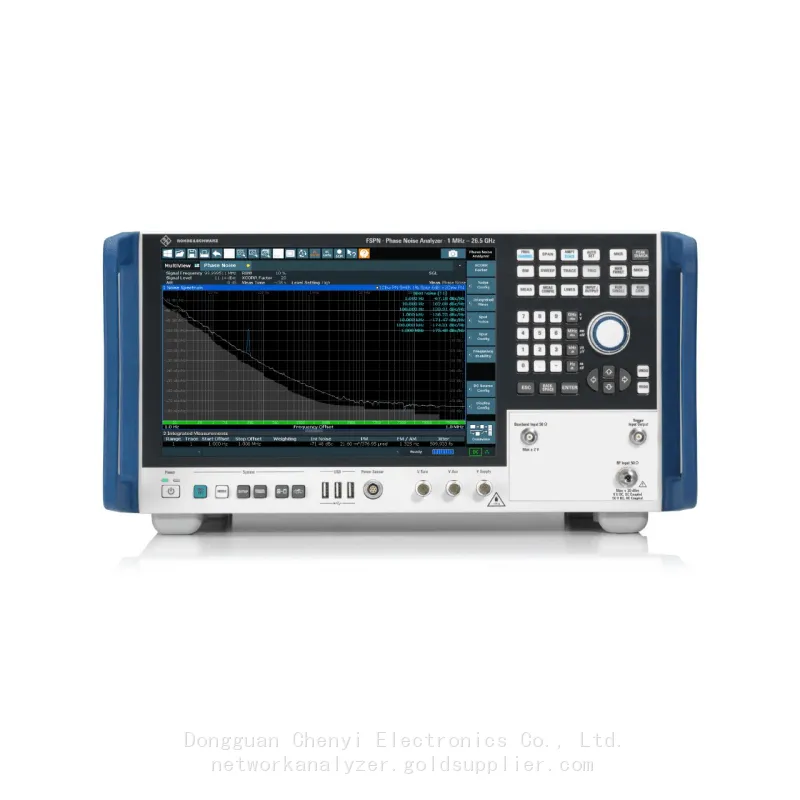

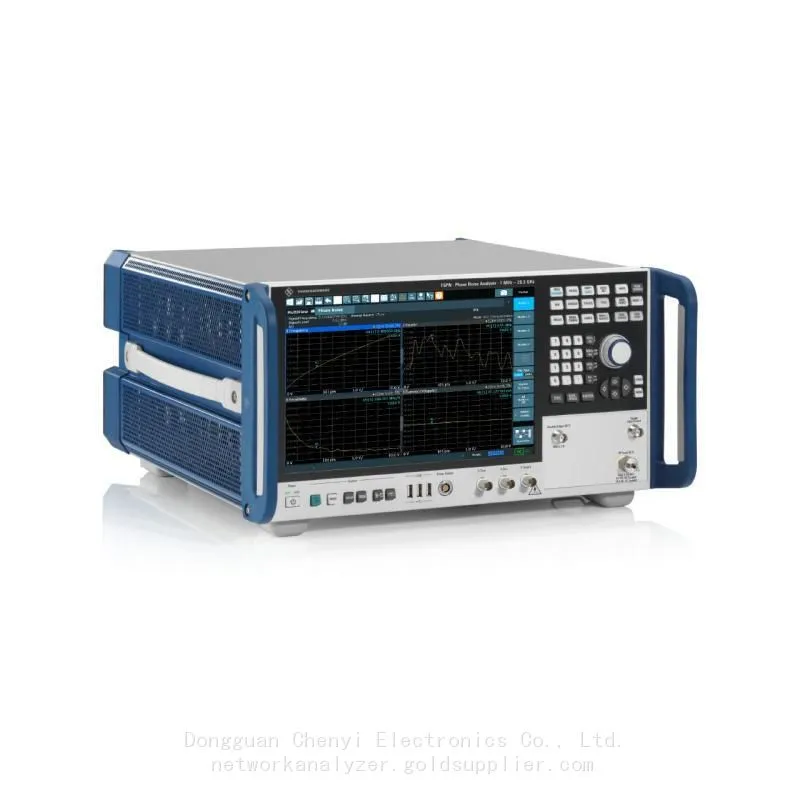

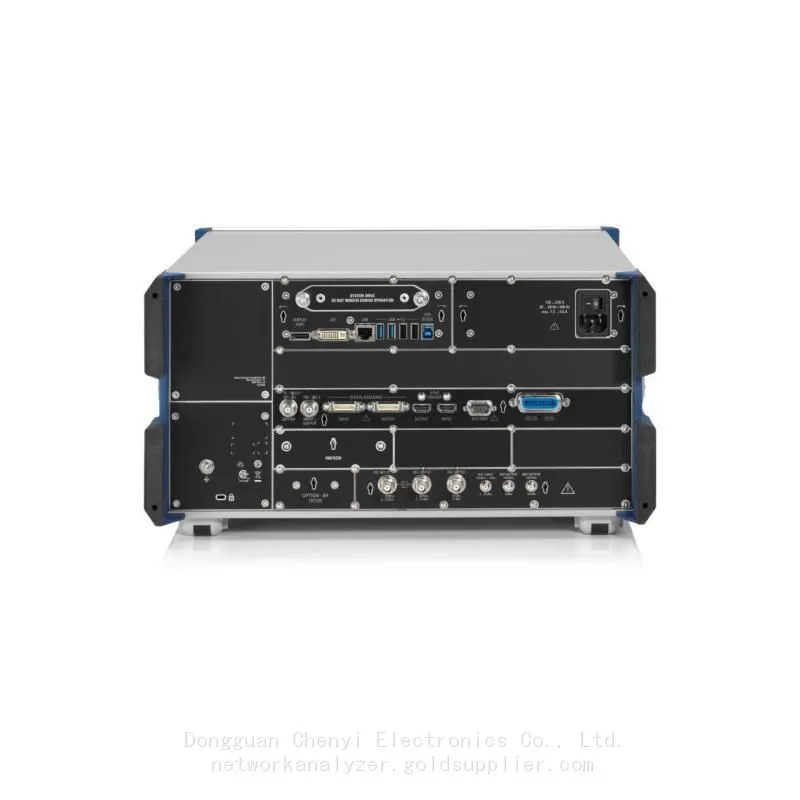

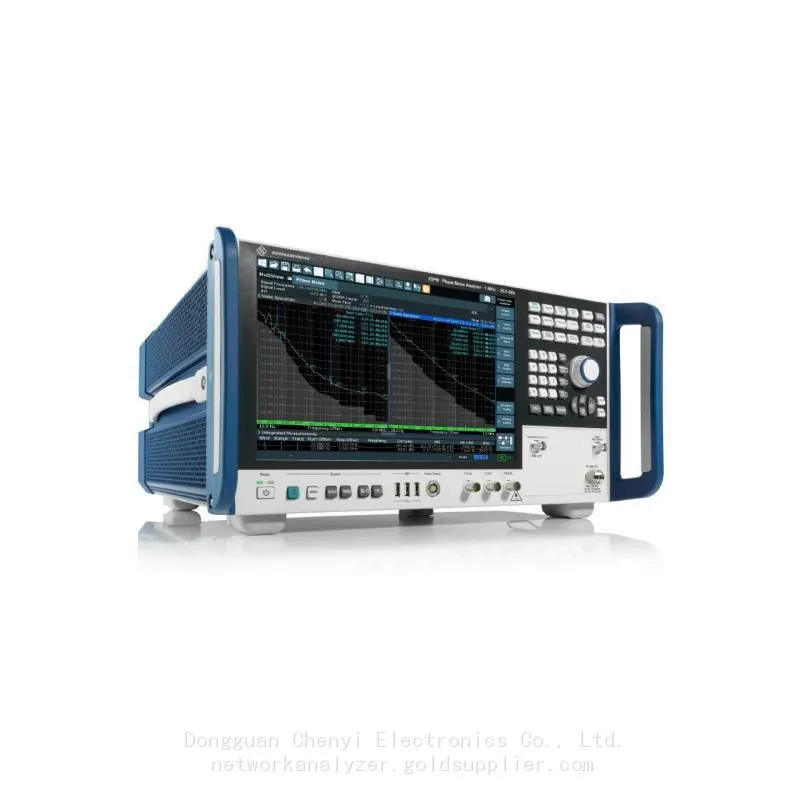

rohde schwarz FSPN26 Phase noise analyzer and VCO tester，1 MHz to 26.5 GHz
rohde schwarz FSPN26 Phase noise analyzer and VCO tester，1 MHz to 26.5 GHz
Key Features
▶ Frequency Range: 1 MHz ~ 26.5 GHz
▶ High-Sensitivity Phase Noise Measurement via Dual-Frequency Synthesis and Cross-Correlation:
-163 dBc/Hz (Typical, 1 GHz Frequency, 10 kHz Offset)
▶ Built-in Ultra-Low Noise DC Source for Automatic VCO Characterization Evaluation
▶ Standard Hardware Cross-Correlation for Fast Measurement
▶ Ability to Evaluate Phase Noise and Amplitude Noise Simultaneously
Key facts
Pure phase noise analyzer and VCO tester with high measurement speed
Simultaneous measurement of phase noise and amplitude noise
Frequency range from 1 MHz to 50 GHz
Extremely low‑noise internal DC sources for automatic VCO characterization
Automatic SCPI recording and 100% compatible with R&S®FSWP
Increased efficiency and reproducibility, from lab to production
The R&S®FSPN phase noise analyzer and VCO tester is very sensitive with high measurement speeds for characterizing sources such as synthesizers, VCOs, OCXOs and DROs. It is ideal for demanding phase noise and VCO analysis in development and production . Equipped with two low phase noise synthesizers and a real-time cross correlation engine for increased measurement sensitivity, just a few correlations are needed to measure very high-quality oscillators, synthesizers or VCOs in production. Increase the number of correlations to characterize the most sensitive commercially available synthesizers and oscillators in R&D.
Available models
Models：R&S®FSPN8 Phase noise analyzer and VCO tester Order number 1322.8003.07
Frequency range：1 MHz - 8 GHz
Phase noise： <–163 dBc (1 Hz)(f = 1 GHz, 10 kHz offset)
Instrument type：Phase noise analyzer and VCO tester
Models：R&S®FSPN26 Phase noise analyzer and VCO tester Order number 1322.8003.25
Frequency range：1 MHz - 26.5 GHz
Phase noise：<–163 dBc (1 Hz) (f = 1 GHz, 10 kHz offset)
Instrument type：Phase noise analyzer and VCO tester
Models：R&S®FSPN50 Phase noise analyzer and VCO tester Order number 1322.8003.49
Frequency range：1 MHz - 50 GHz
Phase noise： <–163 dBc (1 Hz) (f = 1 GHz, 10 kHz offset)
Instrument type：Phase noise analyzer and VCO tester
