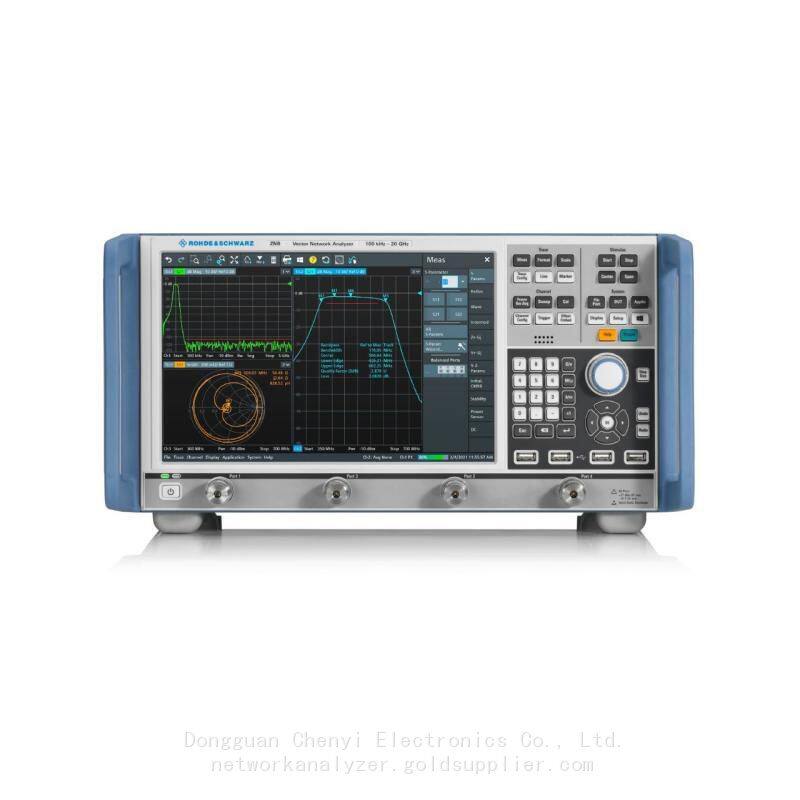

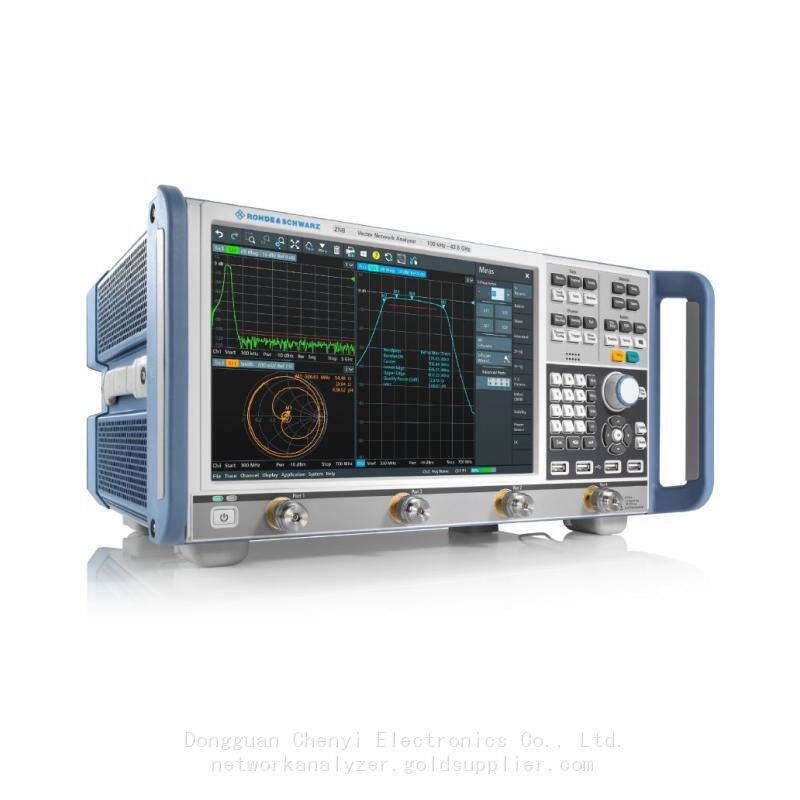

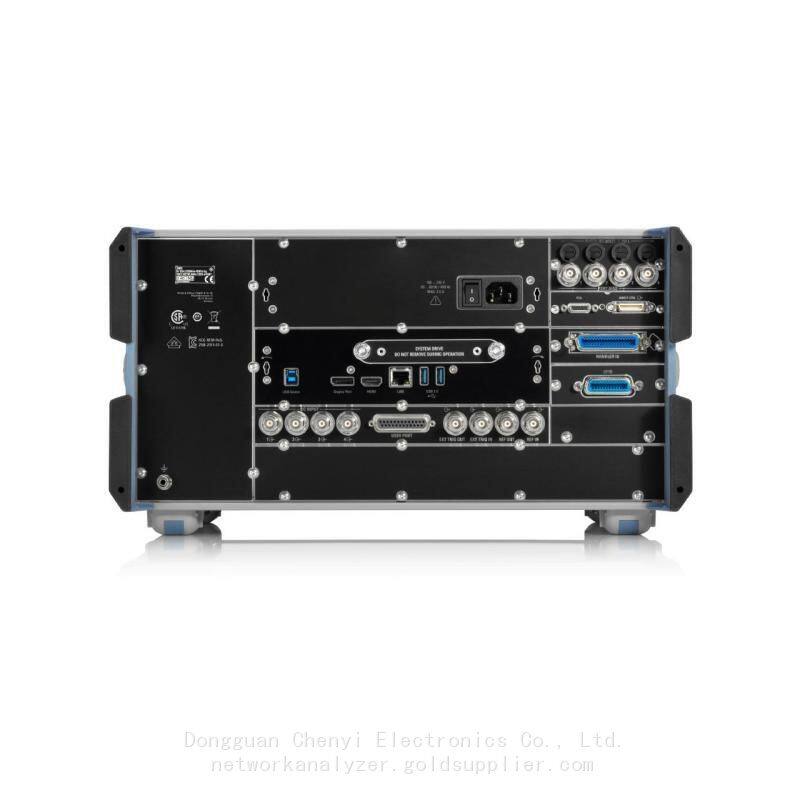

rohde schwarz ZNB8 vector network analyzer，9 kHz to 8.5 GHz
rohde schwarz ZNB8 vector network analyzer，9 kHz to 8.5 GHz
Main Features
▶ Frequency Range: 9 kHz ~ 8.5 GHz
▶ 2-Port / 4-Port
▶ Dynamic Range: 140 dB (Typical)
▶ High-Speed Scanning: <2.5 μs/point
▶ Supports Chinese Menu
Key facts
Frequency range from 9 kHz to 43.5 GHz
Two or four ports
Wide dynamic range of up to 140 dB
Short sweep times of 4 ms for 401 points
Wide power sweep range of 98 dB
Leading in speed, dynamic range and ease of operation
Versatile instrument for multiple applications
With frequency ranges of 9 kHz to 4.5/8.5 GHz and 100 kHz to 20/26.5/40/43.5 GHz, the network analyzers are designed for mobile radio, electronic goods as well as aerospace and defense applications and can also be used in high-speed printed circuit board designs. The R&S®ZNB is ideal for developing, producing and servicing RF components such as amplifiers, mixers, filters and cables.
Available models
Models：R&S®ZNB43 Order number 1334.3330.92
Ports： 2 ports
Frequency：43.5 GHz
Connectors：2.92 mm (m)
Models：R&S®ZNB43 Order number 1334.3330.93
Ports： 2 ports
Frequency：43.5 GHz
Connectors：2.4 mm (m)
Models：R&S®ZNB43 Order number 1334.3330.94
Ports： 4 ports
Frequency：43.5 GHz
Connectors：2.92 mm (m)
Models：R&S®ZNB43 Order number 1334.3330.95
Ports： 4 ports
Frequency：43.5 GHz
Connectors：2.4 mm (m)
