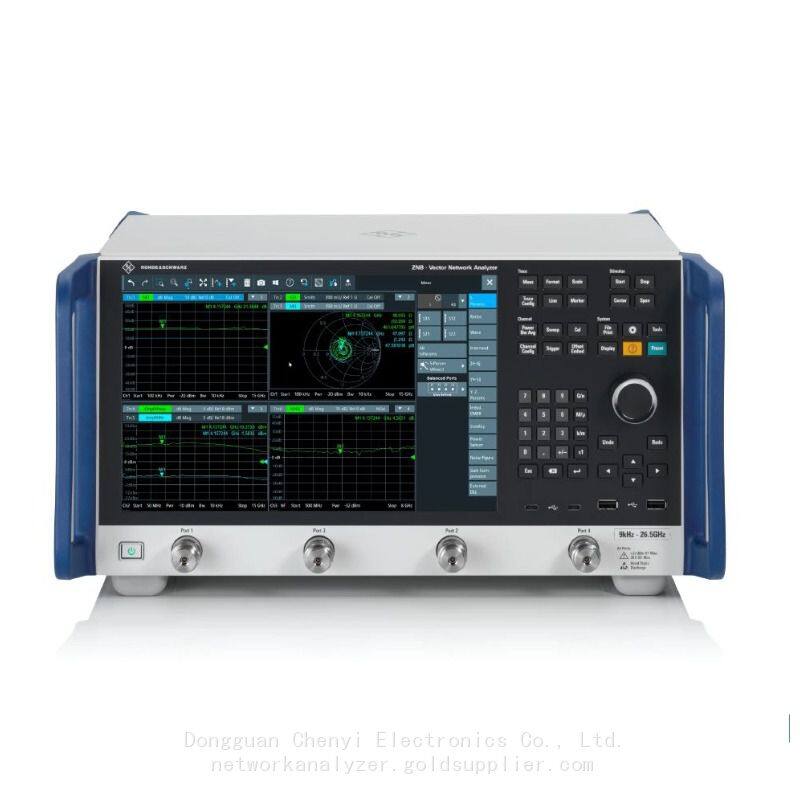

rohde schwarz ZNB3004 vector network analyzer，2/4-Port, 9 kHz to 9 GHz (N)
rohde schwarz ZNB3004 vector network analyzer，2/4-Port, 9 kHz to 9 GHz (N)
Key facts
Frequency ranges from 9 kHz up to 54 GHz
Two or four ports
Wide dynamic range of up to 150 dB
Ultrafast sweep cycle times of 11.8 ms (1601 points, 1 MHz to 26.5 GHz)
High output power: 11 dBm @ 26.5 GHz
Fast forward to results
Maximum throughput with ultrafast measurement cycles
With frequency ranges from 9 kHz to 4.5 GHz, 9 GHz, 20 GHz, 26.5 GHz, 32 GHz, 43.5 GHz and 54 GHz the R&S®ZNB3000 vector network analyzers are ideal for applications in the communications, aerospace and defense industries. High-volume production of RF components and short ramp-up times is the environment where the R&S®ZNB3000 shines and delivers maximum results. The R&S®ZNB3000 has a flexible upgrade concept to rapidly scale up and adapt to your requirements. The measurement speed, stability, outstanding RF performance and extended functions make the R&S®ZNB3000 the instrument to get the job done.
Available models
ZNB3044：R&S®ZNB3004 Order number 1351.5050.02
Ports： 2 Port
Frequency：4.5 GHz / upgradable to 9 GHz
Connectors：N (f)
ZNB3044：R&S®ZNB3004 Order number 1351.5050.04
Ports： 4 Port
Frequency：4.5 GHz / upgradable to 9 GHz
Connectors：N (f)
ZNB3044：R&S®ZNB3020 Order number 1351.5050.22
Ports： 2 Port
Frequency：20 GHz / upgradable to 26.5 GHz
Connectors：3.5 mm (m)
ZNB3044：R&S®ZNB3020 Order number 1351.5050.24
Ports： 4 Port
Frequency：20 GHz / upgradable to 26.5 GHz
Connectors：3.5 mm (m)
ZNB3044：R&S®ZNB3044 Order number 1351.5050.42
Ports： 2 Port
Frequency：43.5 GHz / upgradable up to 54 GHz
Connectors：1.85 mm (m)
