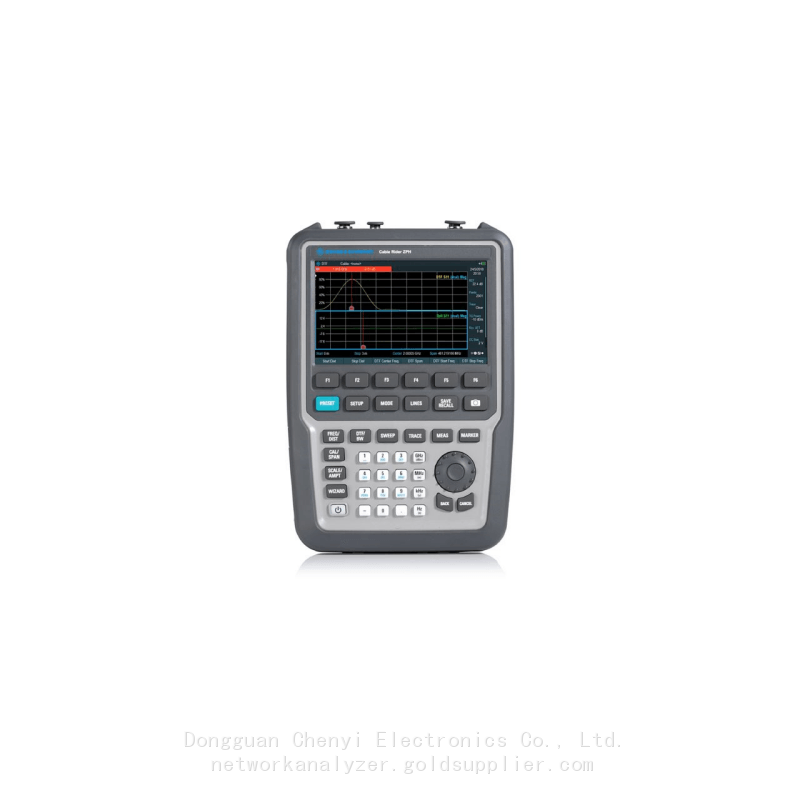

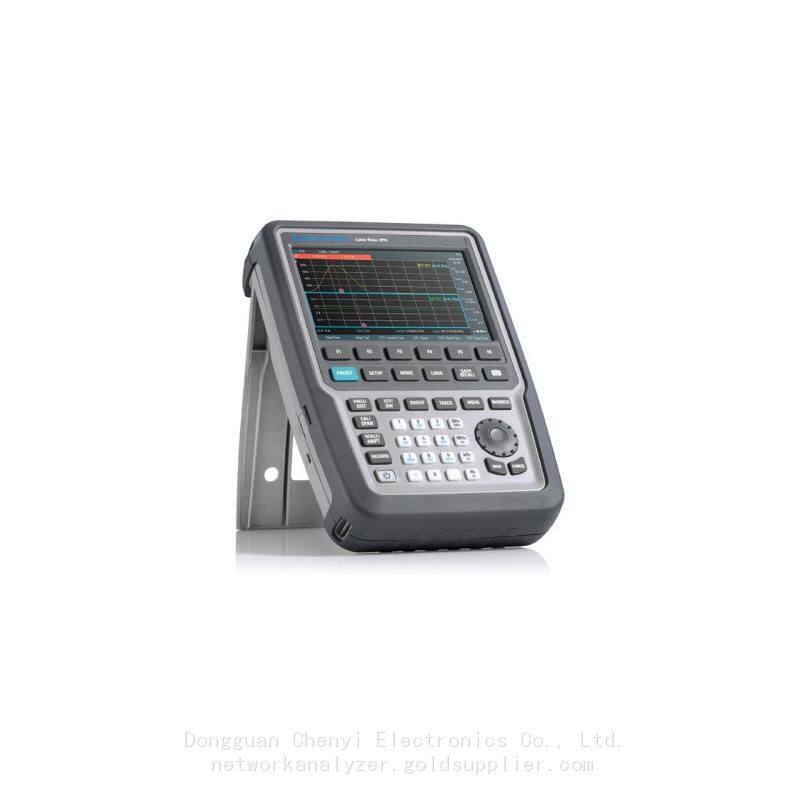

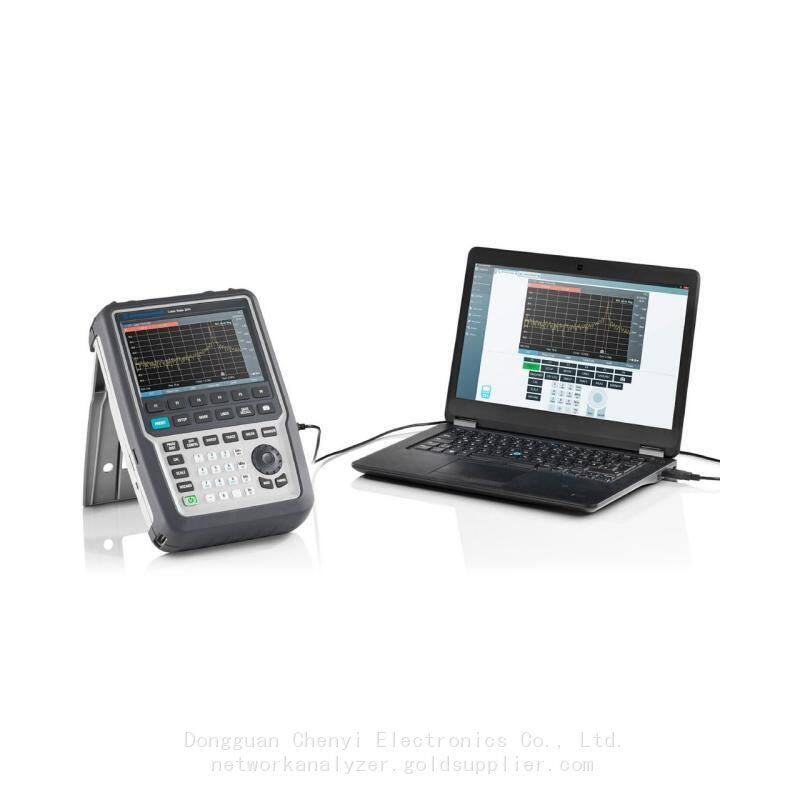

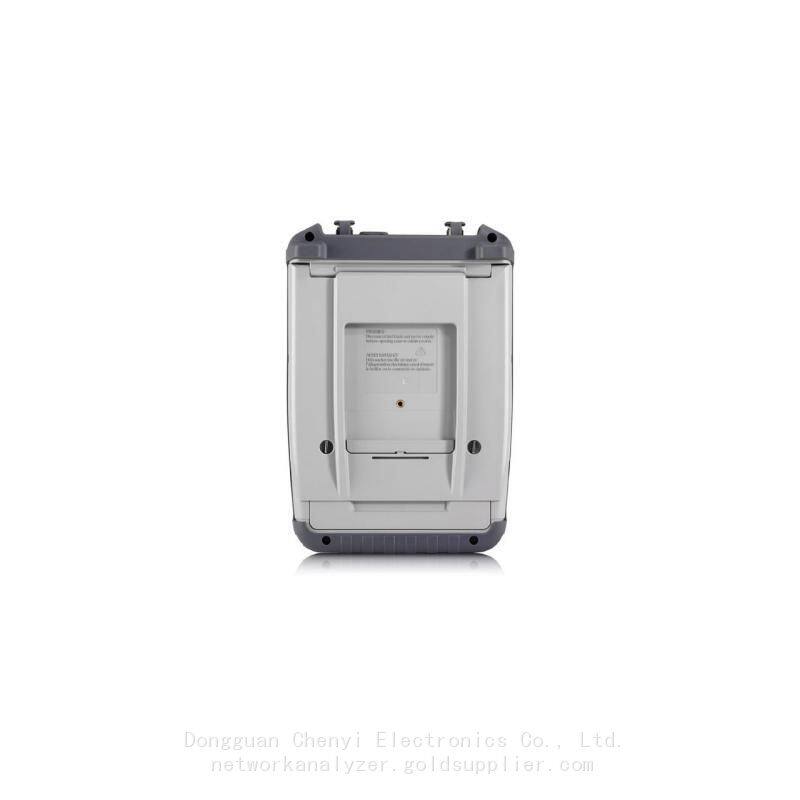

rohde schwarz ZPH Handheld cable and antenna analyzer Cable Rider

rohde schwarz ZPH  2 MHz  to 3 GHz or 4 GHz Handheld cable and antenna analyzer  Cable Rider

Expect fast, expect efficient

Cable and Antenna Analyzer ZPH: 2 MHz ~ 3/4 GHz, frequency upgrade available

Available models

Models                                                                  Ports               Connectors                           Starting at

ZPH  Order number 1321.1211K02                 1.0                     N-type                              Price On Request

ZPH  Order number 1321.1211K12                 2.0                     N-type                              Price On Request

Key Features

▶ Frequency Range: 2 MHz ~ 3/4 GHz

▶ Measurements for DTF, Return Loss, VSWR, and Single-Port Cable Loss

▶ Support for 2-Port Transmission Measurements and Modulation Analysis

▶ Spectrum Analysis Capable via Optional Accessories

Key facts

Frequency range up to 3 GHz or 4 GHz, upgrade via keycode

One-port model features: DTF, return loss, VSWR and cable loss measurements

Two-port model additionally features S21 measurements, spectrum and interference analysis, AM/FM/ASK/FSK demodulation

Ideal for field use: up to 9-hour battery life, 2.5 kg (5.5 lb), backlit keypad, fast boot time, non-reflective display, small form factor, ruggedized housing (IP51)。

Brief description

The R&S®Cable Rider ZPH has all the essential basic measurement capabilities required for installing and maintaining antenna systems in the field. Its unique features ensure fast and efficient cable and antenna measurements and spectrum analysis. Two different R&S®ZPH models meet different needs: a pure one-port cable and antenna analyzer and a two-port model with additional spectrum analysis and tracking generator features.

Features & benefits

Fast

Fast operation with the R&SeCable Rider ZPH

The R&SeCable Rider ZPH boots up in less than 15 seconds and only needs 1 minute to warm up andcan therefore begin measurement almost instantlyThe analyzer's extremely fast measurements are the best in its class. The configuration overview menuallows vou to view and change all parameter settings with just one kevstroke. The fast synthesizers inthe analyzer speed up measurements to 0 3 milliseconds per point.

Efficient

Efficient operation with the R&SeCable Rider ZPH

Downtime-free operation is efficient operationWith a single full charge, the R&SeCable Rider ZPH lasts an entire working day without needing torecharge or change the batteresIf tasks require additional options, these can be purchased and activated without needing to send theanalyzer to the service lab for an upgrade or recalibration.

Cable and antenna tester

Key capabilities for base station installation

All R&SeCable Rider ZPH models share the same cable and antenna testing DNA: distance-to-fault.VSWR and one port cable loss measurement are supported, as well as phase and Smith chart displaysformeasurements.

Spectrum analyzer

Additional features for spectrum analysis

Field engineers often need multiple instruments to complete their tasks: a cable and antenna analyzer, aspectrum analyzer, a signal generator and a bias source. All can now be found in a single powerful boxwith the added features of the R&SeCable Rider ZPH combi analyzer (model .12.) The spectrum analyzermodel also contains further measurement features, such as interference analvsis and signal strengthmapping.

Calibration

One-step calibration

Calibration is only recommended if there are additional cables or adapters connected in between theanalyzer and the device under test (DUT). This eliminates any influences on the measurement.For convenient, one-step calibration, the R&S@ZN-Z103 calibration unit automatically switches internallybetween OPEN, SHORT and LOAD. This saves time and eliminates the hassle of physically changing thedifferent calibration standards in the field.

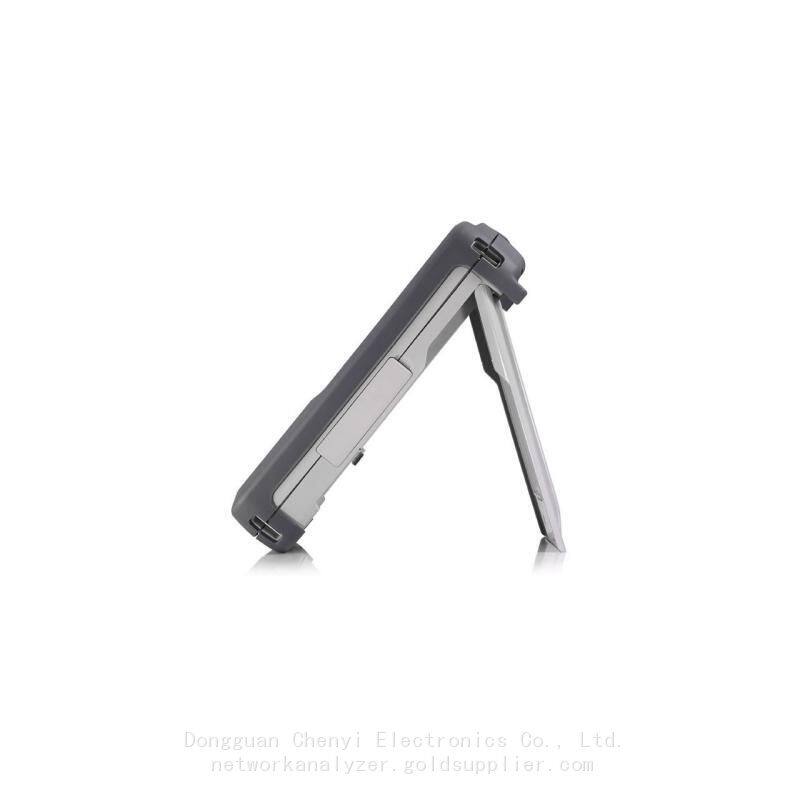

Portability

Weighs only 2.5 kg

With its ergonomic design, the R&SeCable Rider ZPH has a small form factor and is lightweight. ltcomes with a convenient side strap to support your hand during the short measurement period. Forhands-free operation, the holster (R&S@HA-Z322) comes with a harness that is carefully designed to

equally distribute the weight around the body。

Durability

A single charge lasts for a day's work

The R&SeCable Rider ZPH will operate for an entire working day on a single charge. Simply charge it forapproximately 4 hours and the lithium-ion battery pack will last up to 9 hours. The advantages of longbattery life are obvious. the weight of an extra battery can be saved when climbing up a mast or towerand there's no frustration due to the battery running out during a measurement.

Usability

Touchscreen gestures, non-reflective screen and backlit keypad

To enhance user experience, the user interface operates like a smartphone. The touchscreen is notlimited to the menu bar, it also allows users to move the spectrum, zoom in and out of the span,add/delete markers.etc.
