rohde schwarz RS SGT100A vector signal generator 1 MHz to 3GHz and 6 GHz

rohde schwarz RS SGT100A vector signal generator 1 MHz to 3GHz  and 6 GHz

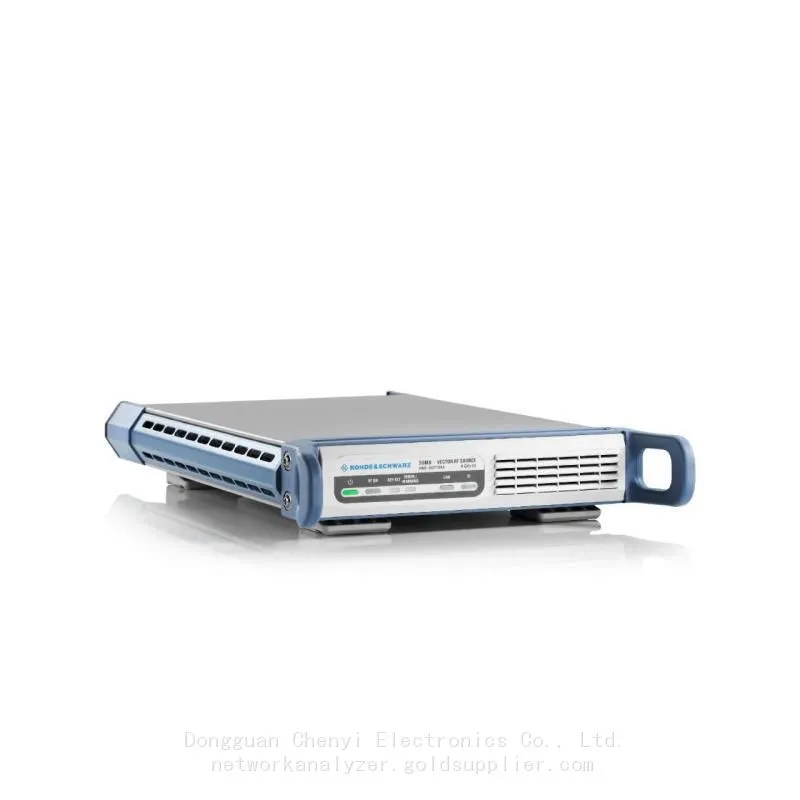

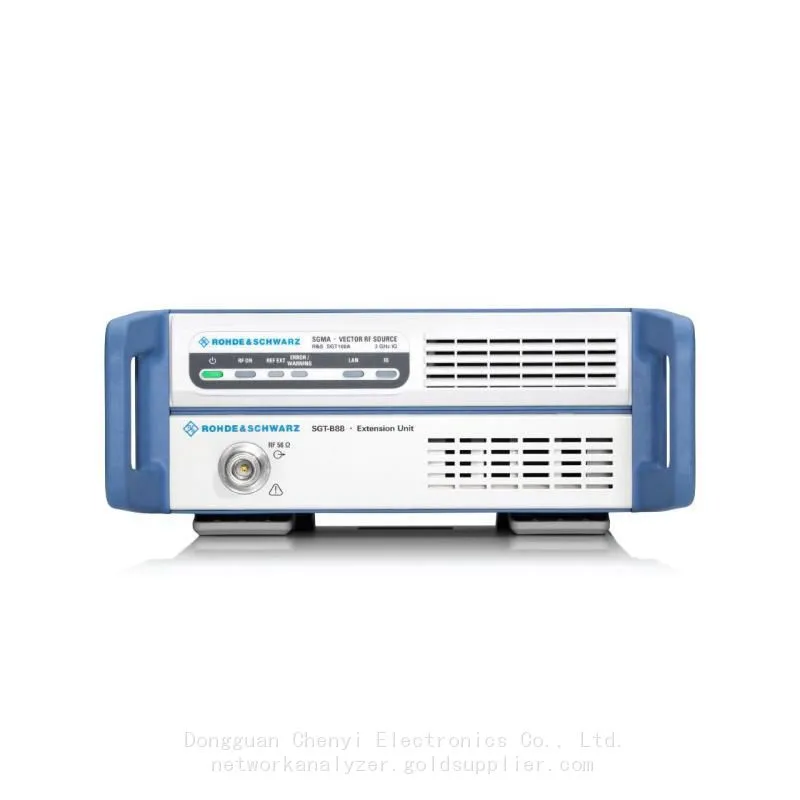

Fast and compact solution

RF Signal Generator SGT100A: 1 MHz ~ 3/6 GHz (CW Signal, Internal Baseband)

Main Features

▶ Frequency Range: 1 MHz ~ 3/6 GHz (CW Signal, Internal Baseband)

▶ Power Range (PEP): -120 dBm ~ +17 dBm (PEP, 1 MHz

▶ SSB Phase Noise (f=1 GHz) at 20 kHz Offset: <-133 dBc/Hz (Typical Value)

▶ RF Modulation Bandwidth: Maximum 240 MHz (Internal Baseband), Maximum 1 GHz (External Baseband)

▶ Dimensions (W×H×D): 246 mm × 52.5 mm × 401 mm

▶ Weight: 4 kg

Key facts

Fast frequency and level switchover times

I/Q modulation bandwidth of up to 240 MHz

Excellent RF characteristics for best  EVM and ACLR performance

Easy signal generation for digital standards such as 5G or WLAN

Ideal enhancement for the R&S;®SMW200A in MIMO applications

The R&S®SGT100A is an RF vector signal generator with an integrated baseband generator. It has been optimized for use in production and automated applications.

The R&S®SGT100A has a clear focus on automated environments with high speed and a compact design. The radio frequency chain has been optimized for the fastest frequency and level switchover times. In the baseband, the multisegment waveform mode helps users quickly switch from one test signal to the next. Though compact in size, the R&S®SGT100A has excellent RF characteristics (signal quality and level accuracy). Maximum output level, level repeatability and excellent EVM performance are key characteristics in production environments. Equipped with a LAN and USB interface, the R&S®SGT100A enables remote control of test equipment in automated applications.

Features & benefits

Optimized for production

Smallest standalone vector signal generator with integrated baseband generatorFast

Frequency and level switchover to optimize production throughput

High output level to compensate for losses in the test system

Low power consumption for reduced heat dissipation and simplified thermal management within thesystem。

The right signal performance in the right package

Excellent modulation accuracy for large test margins

Outstanding frequency response due to integrated baseband generator

Excellent level repeatability and linearity for outstanding reproducibility of measurements

Optional high-performance OCXO to provide a stable and precise test system reference clock withoutaking up additional rack space

Optional analog 1/Q outputs enabling full-featured envelope tracking test capabilities

Low cost of ownership

Low acquisition costs

Simple modular design for easy servicing

Easily upgradeable on customer premises

Waveform package as ideal production solution

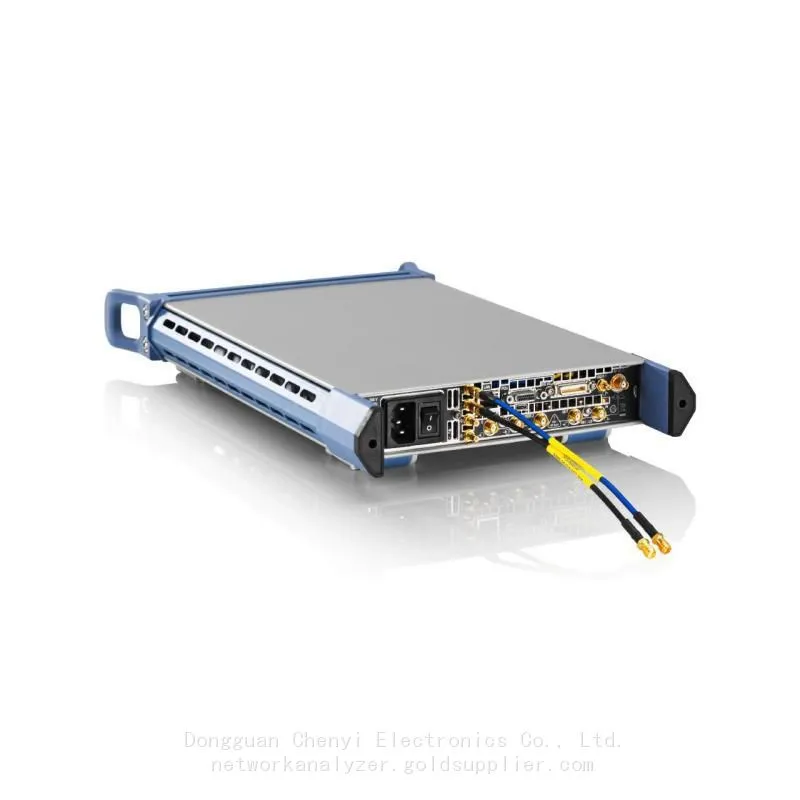

Fast remote control interfaces for easy integration into test setup
