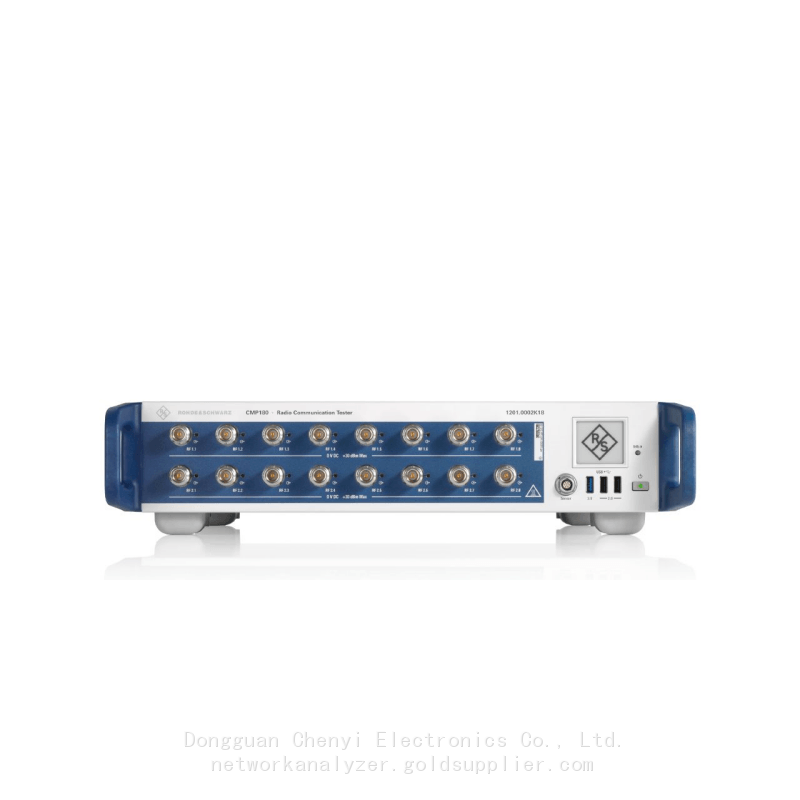

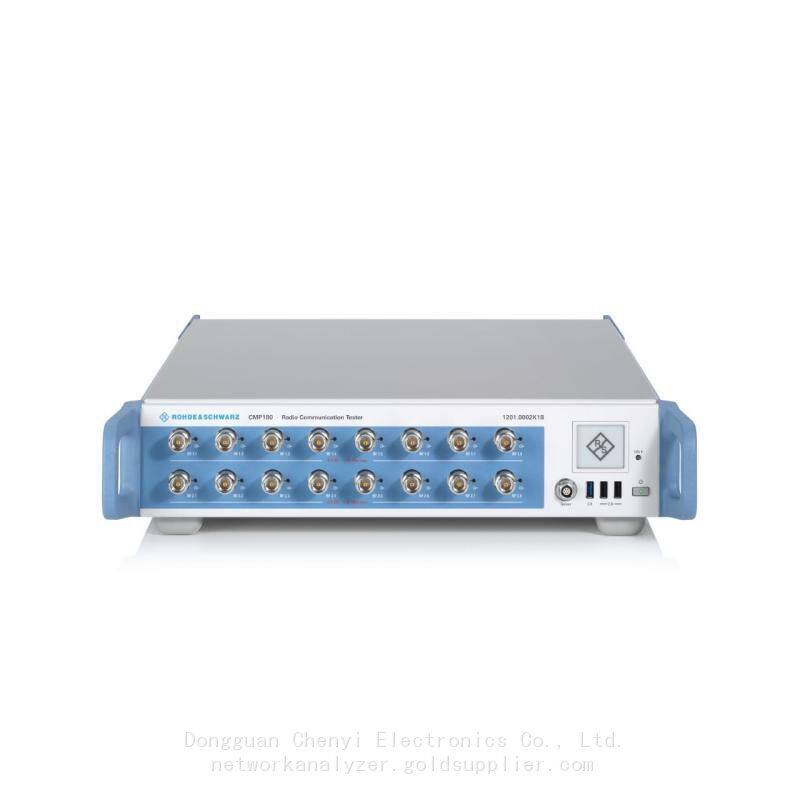

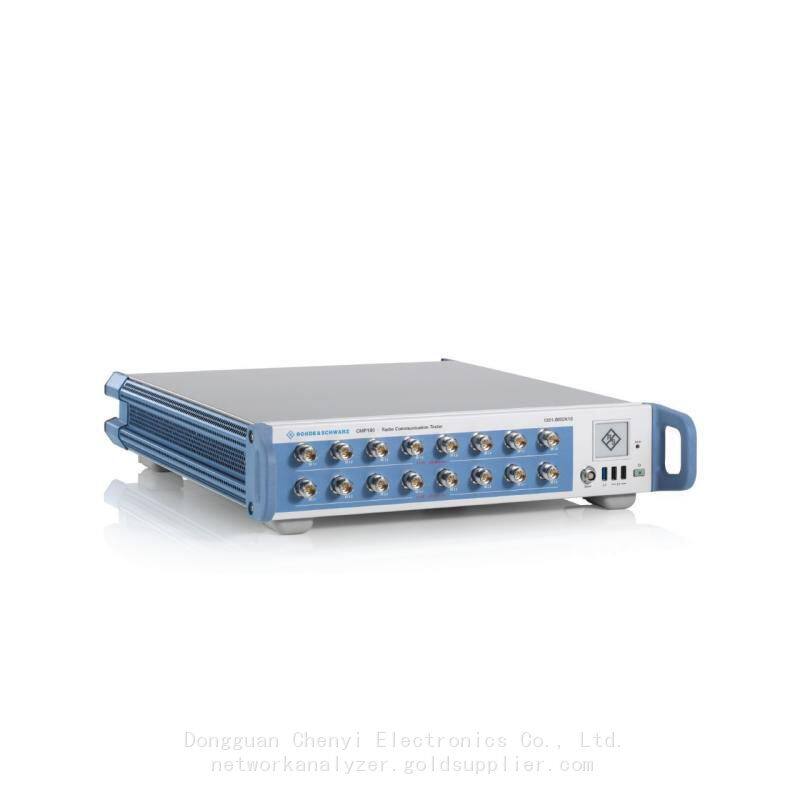

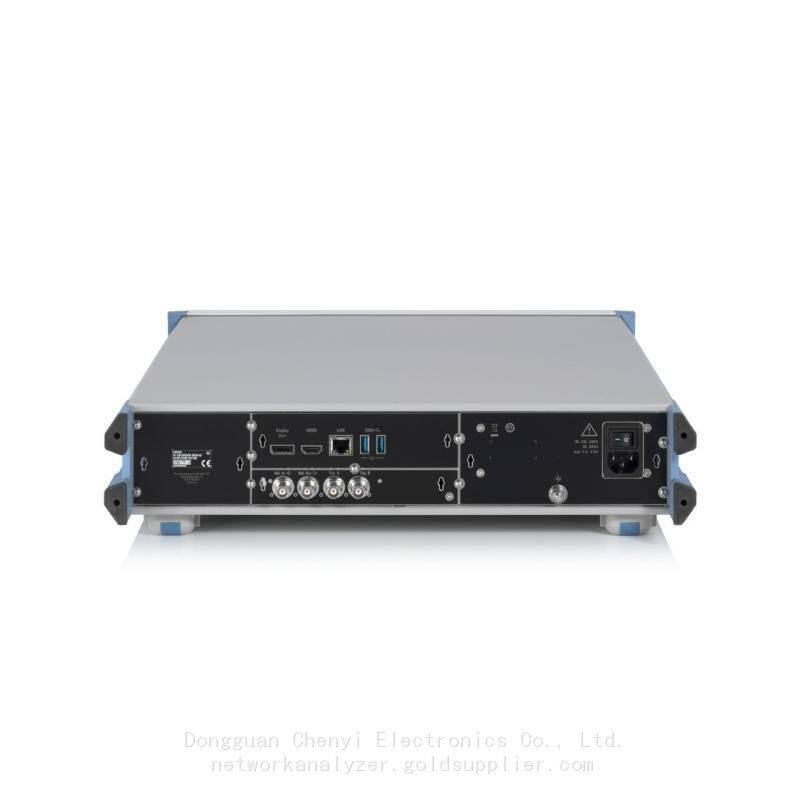

rohde schwarz CMP180 Radio communication tester

Enhanced frequency and bandwidth for advanced wireless technologies

Key facts

▶ Frequency up to 8 GHz and bandwidth up to 500 MHz

▶ Up to two independent RF channels (2x VSA/2x VSG)

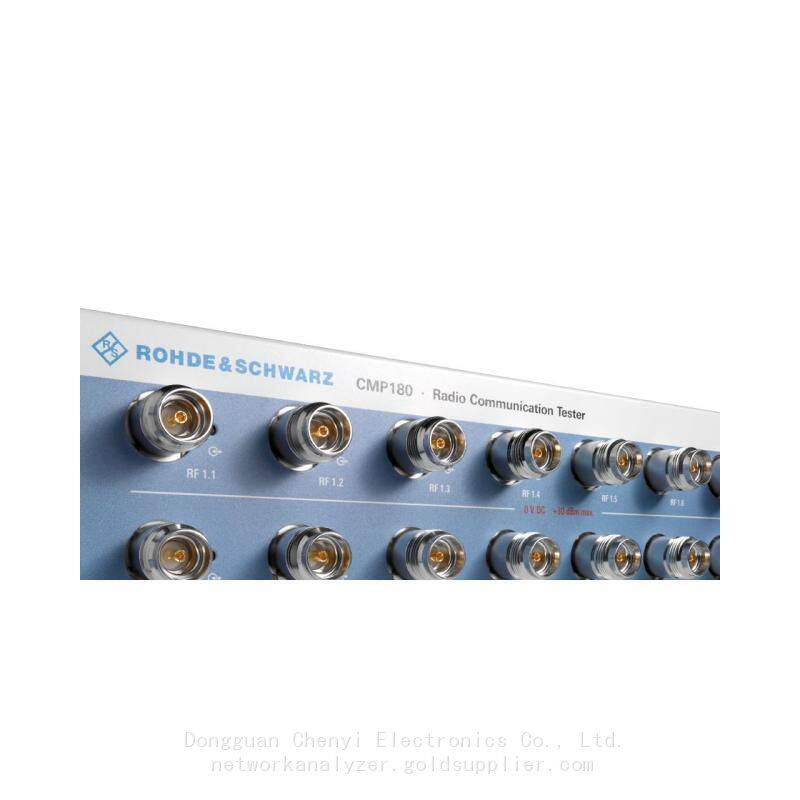

▶ Increased number of RF ports (2x8)

▶ Self-alignment for accuracy adjustment at any time

▶ Compact design of 2 RU and 19″

The future integrated

The CMP180 radio communication tester is a future-proof, non-signaling testing solution for wireless devices in research and development, validation and production. Together with advanced frequency, bandwidth and RF capabilities, it can be used to test new wireless technologies such as Wi-Fi 6E, Wi-Fi 7, Wi-Fi 8, 5G NR FR1 and many more. Twice as many analyzers (2xVSA), generators (2xVSG) and RF ports (2x8) allow technologies and devices to be measured simultaneously in a VSA/VSG single-box tester. The R&S®CMPflexx system can have four analyzers (4x VSA), four generators (4x VSG) and four times eight RF ports (4x8).

Features & benefits

Excellent RF parameters

Enables Wi-Fi 6E (WLAN 802.11ax)/Wi-Fi7 (WLAN 802.11be)/ Wi-Fi 8 (WLAN 802.11bn) &5G FR1 testing

The CMP180 enables Wi-Fi 6E (WLAN 802.11ax)/W-Fi7 (WLAN 802.11be)/ W-Fi 8 (WLAN 802.11bn)and 5G FR1 measurements with a frequency range up to 8 GHz and a bandwidth of up to 500 MHz andhigh output power

Future-proof hardware

Scalable for future technologies, applications and requirements

The CiP180 provides sufficient frequency, bandwidth and EVM performance even for testing of futuretechnologies:

▶Frequency up to 8 GHz

▶Bandwidth up to 500 MHz

▶Class-leading EVM performance

▶MIMO (NR FR1 and higher order true MIMO (WLAN))

▶High output power for OTA measurements

One instrument for testing the entire product lifecycle

From EVT and DVT to MP

Current development and production lines for wireless devices must combine flexibility, performance,capacity utlization and software re-utilization, The ClP180 is more than a mass production tester. Testengineers can use the instrument throughout the entire development phase, from engineeringvalidation tests (EVT), design validation tests (DVT) and production validation tests (PVT) to massproduction(MP).

Self-alignment,on-site calibration and service

Easy self-correction with the self-alignment function

The CMP180 supports self-correction with an integrated self-alignment function that lets usersadjust accuracy at any time. This self-alignment function can retrieve the VSAVSG levels for thecorrection values stored during the manufacturing process. Rohde & Schwarz subsidiaries around theworld can also meet all service demands.

Ultimate flexibility -WLAN 4x4 true MIMO

Scale up by stacking two CMP180 testers to a R&S®CMPflexx system

R&S@CMPflexx is an extremely flexible high-end solution for WLAN 4x4 true MlMO testing.Scale up by stacking two CMP180 testers for combination in an R&SeCMPflexx system. TheR&SeCIPflexx system can have four analyzers (4x VSA), four generators (4x VSG) and four times eightRF ports (4x 8). Separating the two instruments is also simple: simply disconnect the testers and eachwill be a standalone instrument.

Uniform and intuitive operation

Discover the integrated user interface-R&SeCMsquares

The R&SeCMsquares is a unified test software solution with a browser-based user experience thatcombines everything required for wireless technology testing. Test configuration, parameterizationmeasurements and test execution all in a single environment along with a dashboard style and quickaccess to different applications, the software can control all new radio communication testers vla astandardized GUl for a unified experience.

Parallel testing of multiple devices and technologies

Optimize utilization and reduce measuring sites

The smart channel function divides the tester into multiple sub-instruments, so that it can sharehardware (VSA/SG/RF ports) with multiple DUTs for parallel testing of multiple devices andtechnologies.

Waveform ARB generator

Generate analog and digital signals

Run existina turnkev waveforms for different technologies and aenerate and run your own waveformsvia R&S@WinlQSlM2:

R&S® WMT wireless automated testing

Start your project now

Rohde & $chwarz@ WMT is an ultra-fast framework for automated test equipment (ATE) used in R&Dand production for testing single devices or multiple DUTs. Designed to meet the rigorous demands ofmodern production environments, this innovative software service excels in automated chipset andmodule RF testing, ensuring the highest quality and reliability.
