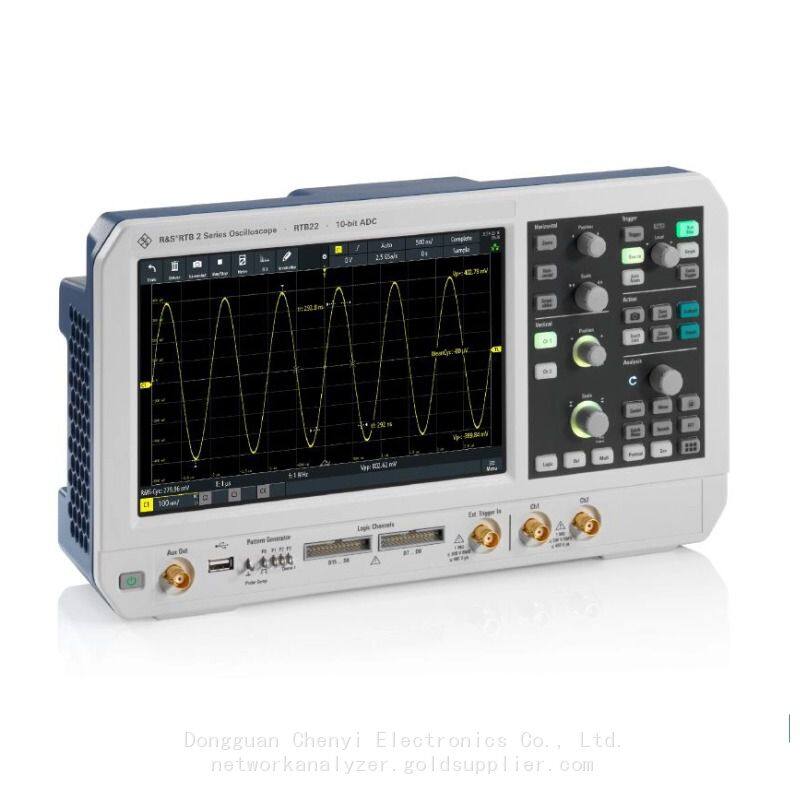

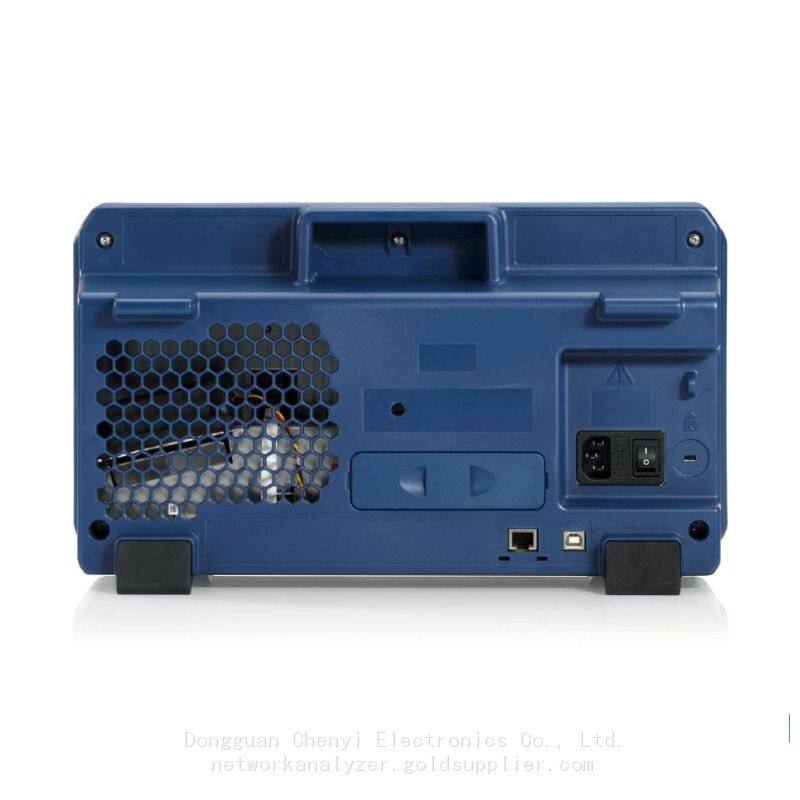

rohde schwarz RTB22 Oscilloscope Option RTB22-70：70 MHz ，2 Channels

rohde schwarz RTB22 Oscilloscope Option  RTB22-70：70 MHz ，2 Channels

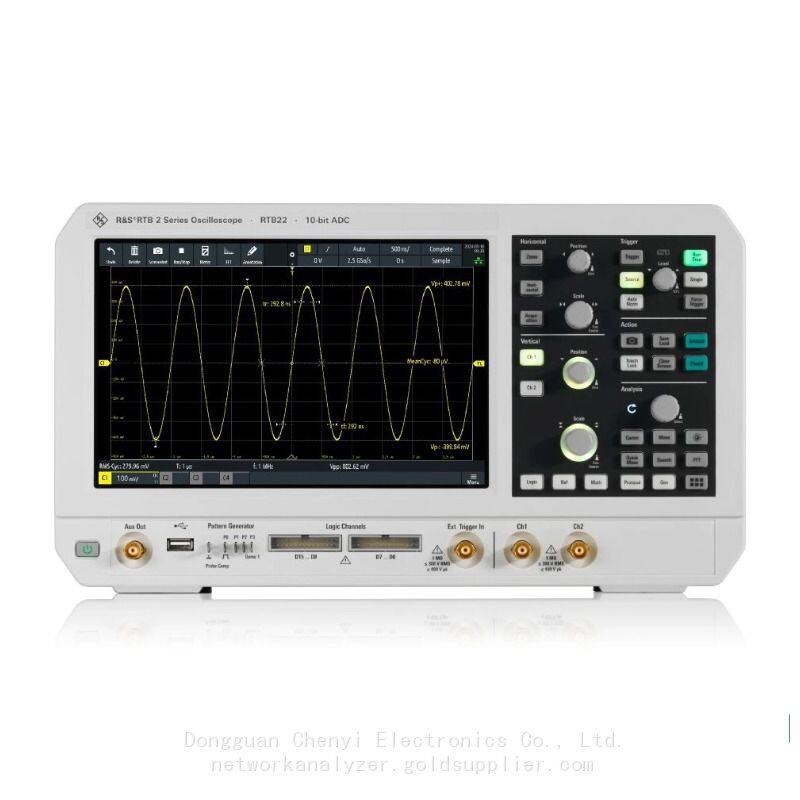

               RTB22： 70 MHz            ，2 Channels

Option  RTB22-70：70 MHz       ，2 Channels

Option  RTB22-100：100 MHz  ，2 Channels

Option  RTB22-200：200 MHz  ，2 Channels

Option  RTB22-300：300 MHz  ，2 Channels

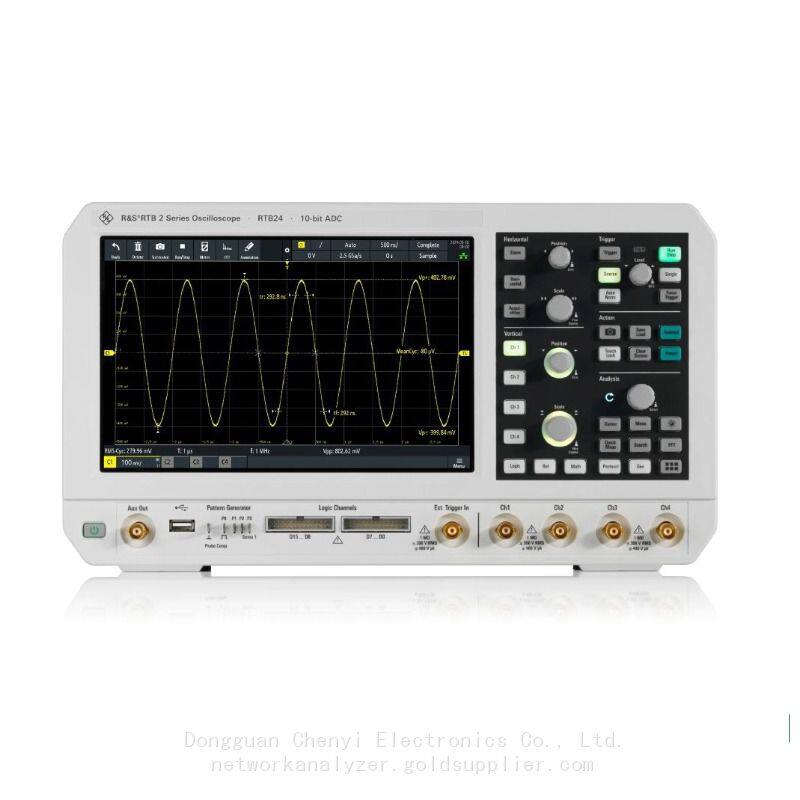

               RTB24：70 MHz             ，4 Channels

Option  RTB24-70：70 MHz       ，4 Channels

Option  RTB24-100：100 MHz   ，4 Channels

Option  RTB24-200：200 MHz   ，4 Channels

Option  RTB24-300：300 MHz   ，4 Channels

Key facts

▶Bandwidth: 70 MHz to 300 MHz

▶Sample rate: up to 2.5 Gsample/s

▶Memory depth: up to 20 Msample

▶ADC resolution: 10 bit

▶Display: 10.1" capacitive touchscreen

Power of ten for every task, everyday

The R&S®RTB 2 series oscilloscopes combine the power of ten with smart operating concepts, making them the ideal all-purpose tool for students, hobbyists, technicians and engineers. As a successor to the highly capable R&S®RTB2000, the R&S®RTB 2 series features a 10-bit ADC, 10 Msample memory, and a 10.1-inch touchscreen.

Additionally, the R&S®RTB 2 series includes an integrated arbitrary waveform generator history and segmented memory capabilities. Furthermore, all RTB 2 models are MSO-ready, allowing the use of up to 16 digital channels with the appropriate probes.

These oscilloscopes offer four times the vertical resolution of standard 8-bit ADCs while maintaining fast sampling rates at all times. With the largest display and highest resolution in their class, they provide extensive capabilities for university laboratories, troubleshooting embedded designs during development, and for production and service departments.

The R&S®RTB 2 series is the perfect solution for anyone needing precise and reliable measurements.

Features & benefits

Signal analysis: quick results

See small signal details in the presence of large signals

The R&S@RTB 2 features a customized Rohde & Schwarz engineered 10-bit A/D converter that delivers afourfold improvement compared to conventional 8-bit A/D converters. The increased resolution resultsin sharper waveforms with more signal details that would otherwise be missed. One example is thecharacterization of switched-mode power supplies. The voltage across the switching device must bedetermined during the on/off times within the same acquisition.

Capture more time at full bandwidth

10 Msample standard and 20 Msample interleaved

The R&SeRTB 2 offers a class-leading memory depth: 10 Msample per channel are available. even 20Msample in interleaved mode, This is 10 times more than similar oscilloscopes in the same instrumentclass. The user captures longer acquisition sequences even at high sampling rates, e.g. when analyzingtransients of switched-mode power supplies, and thus benefits from more detailed analvsis results.

Segmented memory

160 Msample with history function

Every R&SeRTB 2 is equipped with a standard segmented memory functionality. Protocol-based signalswith communications gaps such as l2C or SPl can be captured over several seconds or minutes. Thevariable seament size optimally utilizes the 160 Msample memory, In history mode. previousacauisitions in the maximum seamented memory depth of 160 Msample are available for furtheranalysis.

Logic analysis with the MS0 option

16 additional digital channels

Every R&SeRTB 2 is MSO ready, which allows the R&SeRTB2-B1 option to enable up to 16 additionaldigital channels. The oscilloscope captures and analyzes signals from analog and digital components ofan embedded design- synchronously and time-correlated to each other. For example, the delaybetween A/D converter input and output can conveniently be determined with the cursor

measurements.

Waveform and pattern generator

Generate analog and digital stimuli

The R&SeRTB-B6 waveform and pattern generator up to 50 Mbit/s is useful for educational purposesand for implementing prototype hardware. Apart from the common sine, square/pulse, ramp and noisewaveforms, it outputs arbitrary waveforms and 4-bit signal patterns. Waveforms and patterns can beimported as CSV files or copied from oscilloscope waveforms. Predefined patterns including.IC, SPlUART and CAN/lIN can be used.

Digital voltmeter

Measure and display electrical potential

The R&SeRTB 2 features a 3-digit voltmeter (DVM) and 6-digit frequency counter on each channel forsimultaneous measurements. Standard measurement functions include DC, AC+DC (RMS) and AC

(RMS).

Frequency analysis mode

Dificult-to-find faults often result from the interaction between time and frequency signals. The FFTfunction of the R&SeRTB 2 is activated at the push of a button and by simply entering the centerfrequency and span. Thanks to the R&SeRTB 2 osciloscopes' high-performance FFT functionality,signals can be analyzed with up to 128 kpoints. Other practical tools include cursor measurements andautoset in frequency domain.

Ready for the teaching lab

In the teaching lab, the R&SeRTB 2 oscilloscope is the perfect choice to teach students how to measurewith an osciloscope. lt has an easy-to-use concept combined with state-of-the-art technology at anaffordable price. The large 10.1" high-resolution screen shows every signal detail, and one instrumentcan be shared among several students, Reports can be efficiently created with the handy. flexiblescreen annotation tool.
