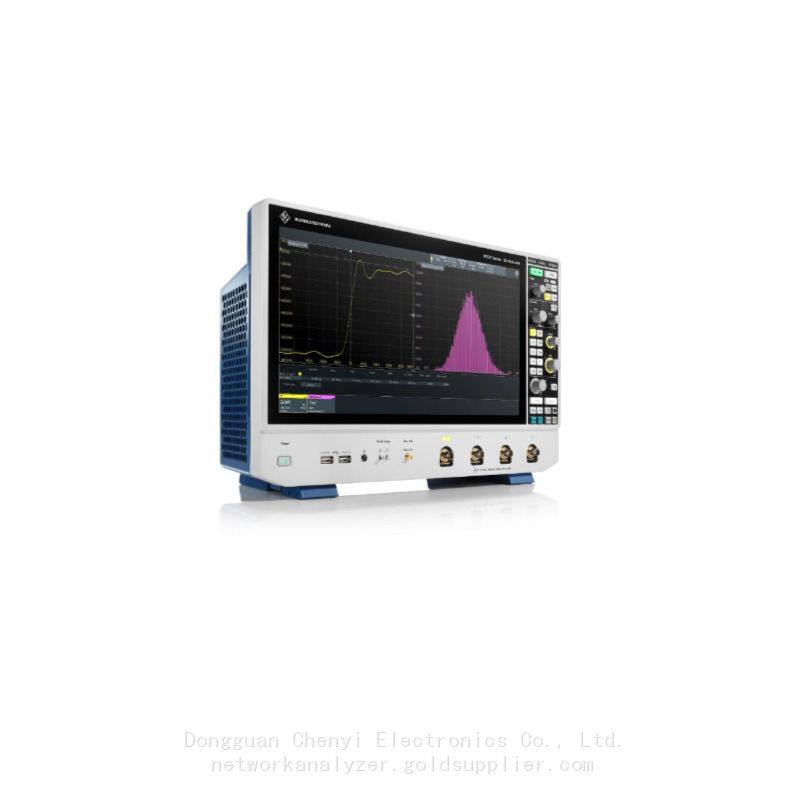

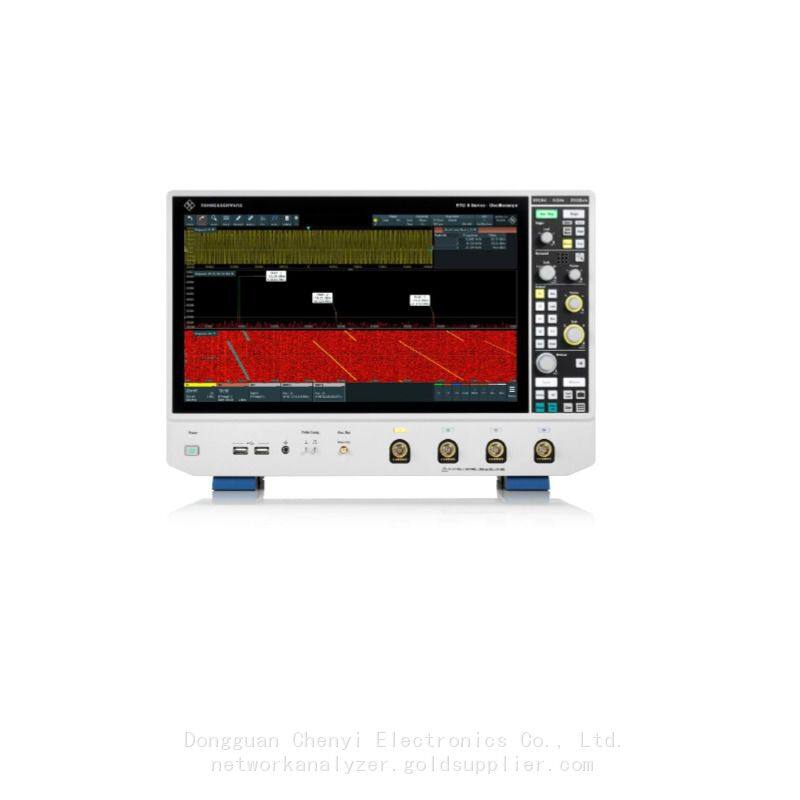

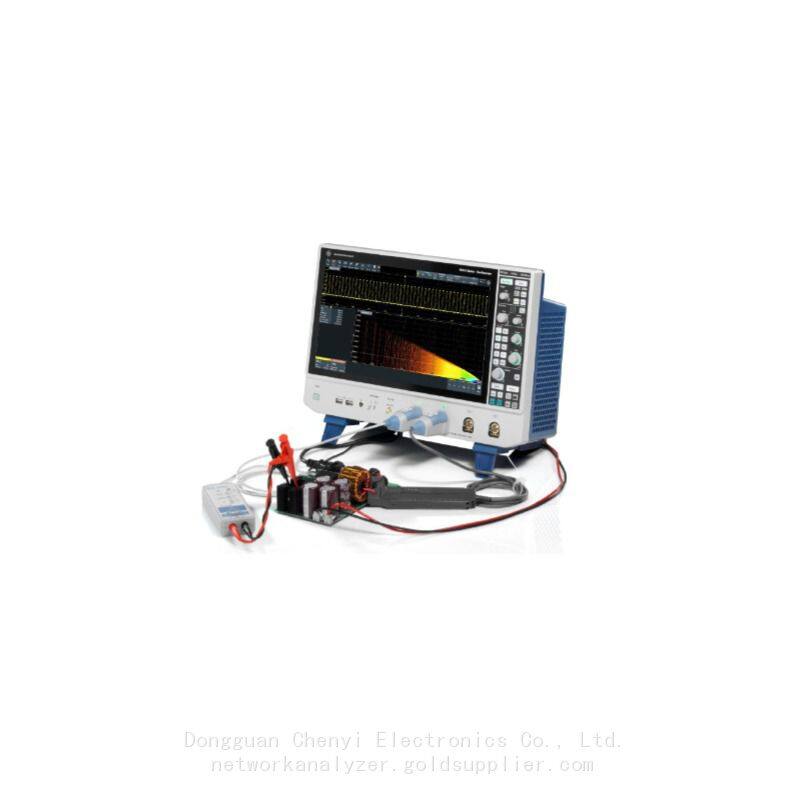

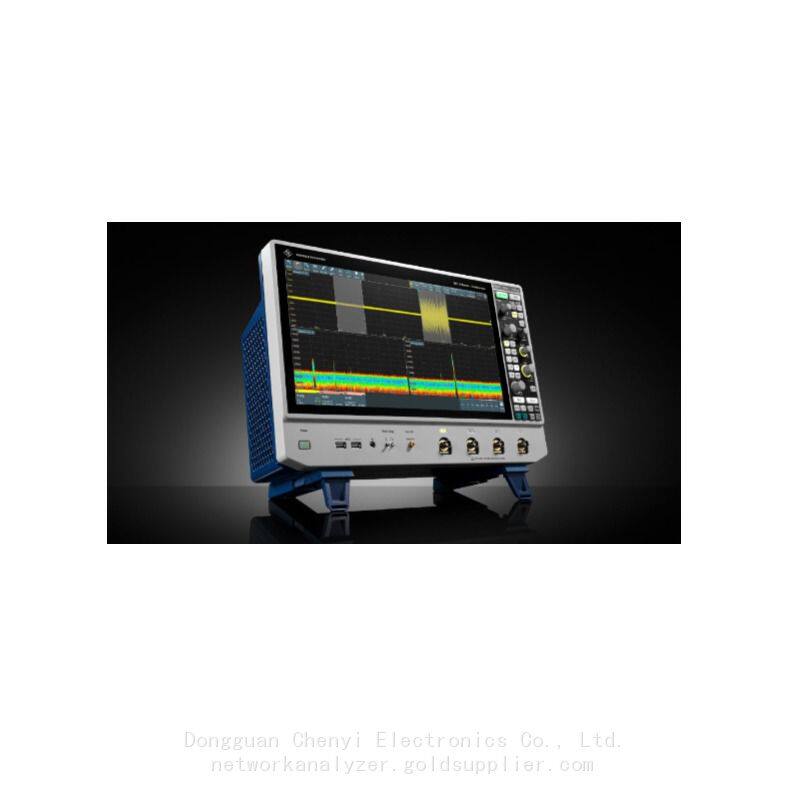

rohde schwarz RTO64 Oscilloscope Option RTO6-B90 ： 600 MHz 4 Channels

rohde schwarz RTO64 Oscilloscope Option  RTO6-B90 ： 600  MHz 4 Channels

Option  RTO6-B90 ： 600  MHz 4 Channels

Option  RTO6-B91 ： 1 GHz 4 Channels

Option  RTO6-B92 ： 2 GHz 4 Channels

Option  RTO6-B93 ： 3 GHz 4 Channels

Option  RTO6-B94 ： 4 GHz 4 Channels

Option  RTO6-B96 ： 6 GHz 2 Channels

Option  RTO6-B96 ：    4 GHz 4 Channels

Key facts

▶6 GHz maximum bandwidth

▶1 million waveforms per second

▶9.4 ENOB for ultimate signal integrity

▶2 Gpoints maximum memory

▶Exclusive frequency zone trigger

▶10 years oscilloscopes HD 16 bit Multidomain icon

The oscilloscope you can trust

The R&S®RTO6 is the oscilloscope you can trust. Engineered to deliver reliable results, it acts as a sophisticated laboratory companion to solve measurement problems fast and keep you on schedule. The R&S®RTO6 oscilloscope series leverages the engineer’s expertise and builds your measurement confidence by achieving deep insights whenever needed.

The R&S®RTO6 oscilloscope series provides superior signals to insight for your applications. The large 15.6" touchscreen and a new GUI, combined with a high waveform update rate, excellent signal fidelity, a digital trigger and deep responsive memory serve as a fully integrated test solution for frequency, protocol and logic analysis. The R&S®RTO6 oscilloscope series’ rich measurement toolset combined with a streamlined user interface helps you quickly solve circuit issues, from simple to complex.

Features & benefits

Find signal anomalies quickly

... with an unparalleled update rate

▶11000 000waveforms/s

▶Available with active histograms, masks or cursor measurements

▶Quickly and reliably detect sporadic signal faults

▶Mask testing: quick configuration and fast results

Captures all signal details

with excellent signal integrity

▶Low-noise frontends and minimized crosstalk

▶Flat frequency response

▶Excellent long-term stability

▶Outstanding AD converter with ultra-wide SFDR

Seeing more

... with up to 16 bit resolution

▶16 bit resolution for measuring small signal amplitudes

▶High acquisition rate and full functionality

▶Full sample rate-no aliasing

▶User-selectable filtering:reduced noise, increased ENOB

Find complex signal details

... with advanced trigger capabilities

▶Patented digital trigger system

▶High trigger sensitivity at full bandwidthlsolate smallest signal details

▶Zone trigger in time and frequency domain

Measure more

with deep and responsive memory

▶Maximized memory: 200 Mpoints standard

▶2 Gpoints optional

▶Segmented memory to capture distant trigger events

▶History mode to analyze previous trigger events

▶Search and navigation: find faults fast
