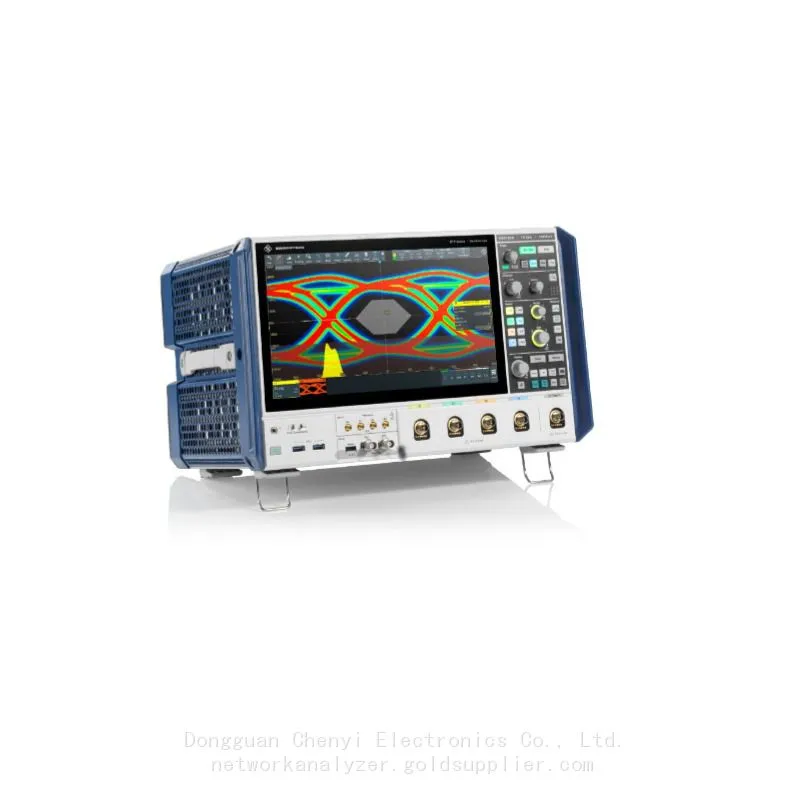

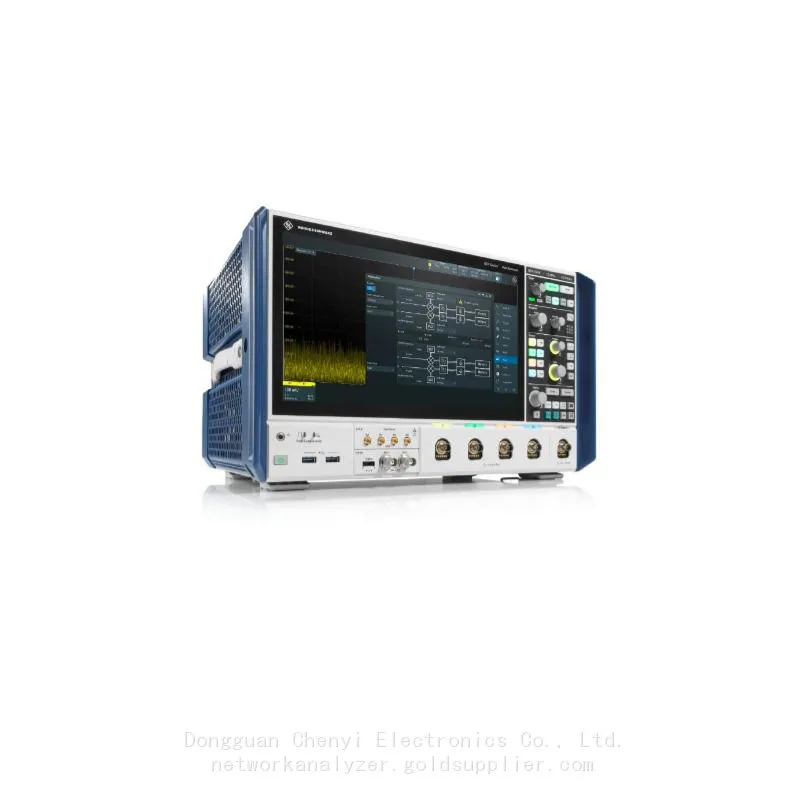

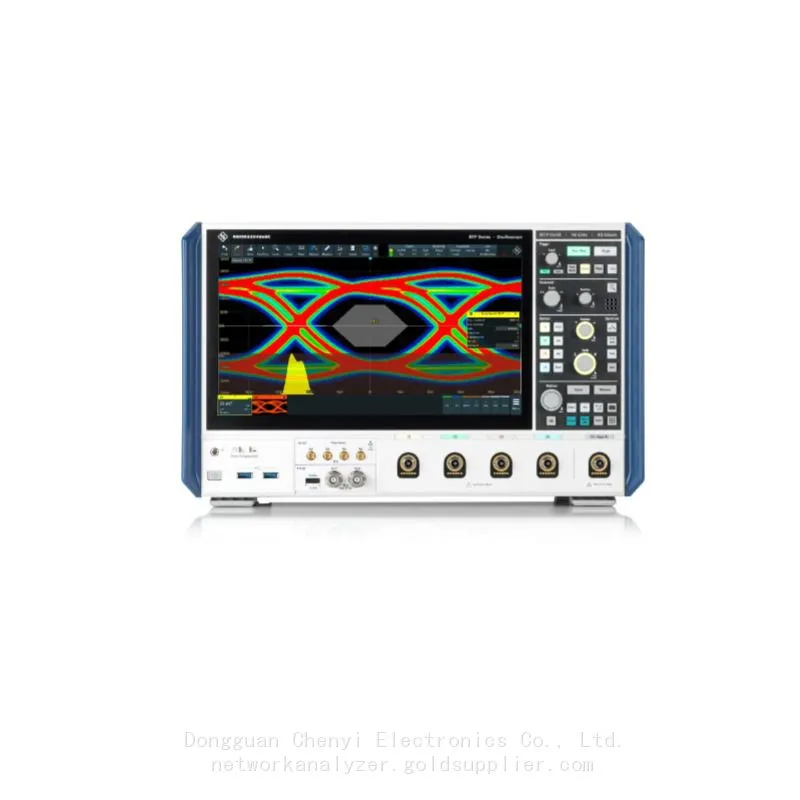

rohde schwarz RTP044B RTP064B RTP084B RTP0134B RTP0164B Oscilloscope

rohde schwarz  RTP044B  RTP064B  RTP084B  RTP0134B  RTP0164B Oscilloscope

Oscilloscope RTP044B：   4 GHz      ，  4 Channels

Oscilloscope RTP064B：   6 GHz      ，  4 Channels

Oscilloscope RTP084B：   8 GHz      ，  4 Channels

Oscilloscope RTP0134B：13/8 GHz ，  2/4 Channels

Oscilloscope RTP0164B：16/8 GHz ，  2/4 Channels

Key facts

▶Bandwidth: 4 GHz to 16 GHz

▶Max. sample rate: 40 Gsample/s

▶Max. memory depth: 3 Gpoints per channel

▶Up to 16 bit resolution

▶All trigger events at full bandwidth

Signal integrity in real time

The R&S®RTP high-performance oscilloscope combines high-class signal integrity with a fast acquisition rate. Customized frontend ASIC and real-time processing hardware enable highly accurate measurements with unprecedented speed in a compact form factor.

▶750,000 waveforms/s to find faults fast

▶High-precision digital trigger with no bandwidth limitations

▶Real-time deembedding for triggering and fast acquisition

▶Compact design and silent operation to best fit any lab

▶Precise measurements with flat frequency response of +/- 0.25 dB

Features & benefits

Real-time signal integrity

Fastest high accuracy measurements

Rohde & Schwarz has the in-house expertise to design the best analog integrated circuits. Powerfulprocessing components directly downstream from the A/D converters enable real-time correction oftransmission paths from the DUT, retaining the maximum acquisition rate of 750,000 waveforms/s.

▶Flat frequency response and high spurious-free dynamic range for precise measurements

▶Real-time deembedding for fast acquisition and precise triggering

▶Real-time math for differential signals

▶Hardware-accelerated histogram and mask test

▶Increase real-time resolution with 16-bit HD mode

Multi-instrument capability

Time-correlated measurements on integrated devices

The R&SeRTP oscilloscope combines several test instrument capabilities for time-correlated analysis ofmultiple signal types in a single box.

▶High bandwidth analog channels for measuring high-speed signals and wideband RF transmitters

▶Fast and responsive FFT for analysis in the frequency domain

▶General purpose 16 ch, 400 MHz MSO for logic analysis or protocol based testing of low-speed serialbuses

▶Select from the broad portfolio of serial protocol options

▶Multiple 18-bit high-precision voltage and current channels (4 + 4)

▶2 ch 100 MHz arbitrary waveform generator

▶16 GHz differential pulse source

Compact and configurable

Future-proof 4 to 16 GHz platform for any lab

The R&SeRTP platform is designed for minimal bench space and quiet operation. ultiple option slotsand upgrade paths for bandwidth and memory make for a safe investment and a future-proof platform

▶Most compact and silent high-performance oscilloscope for your lab

▶Expand as your requirements grow: 4 hardware option slots, software option, bandwidth andmemory    upgrade

▶Quickly operate instrument via touchscreen and established Rohde & Schwarz graphical userinterface
