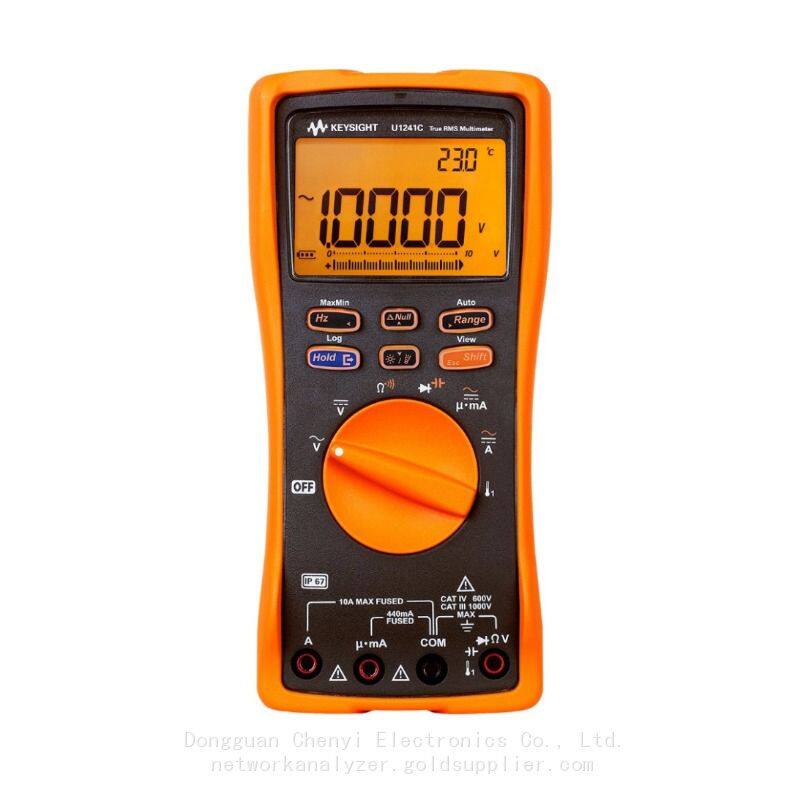

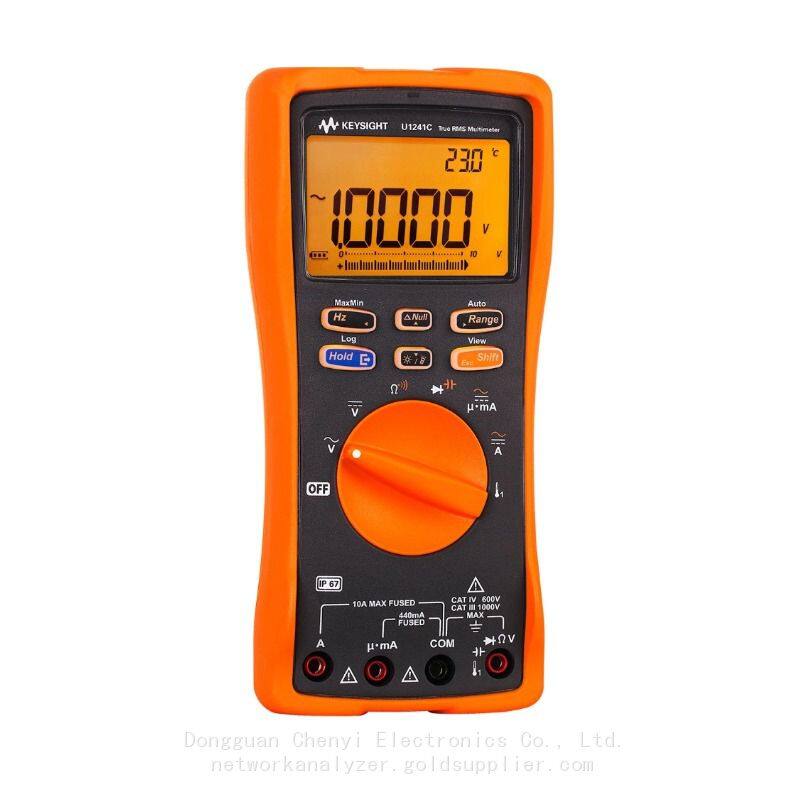

Keysight U1241C Handheld Digital Multimeter, 4 Digit, IP67 10K counts DMM

Keysight U1241C Handheld Digital Multimeter, 4 Digit, IP67  10K counts DMM

10K counts DMM, dust/water resistant with flashlight for installation and maintenance

 troubleshooting. Remote Link Solution enabled

Key Features

▶10,000-count display

▶Up to 0.09% basic DCV accuracy

▶Longer battery life up to 400 hours 1

▶Certified to IP 67 for water and dust protection 1

▶Tested to withstand a 3-meter (10-ft) drop 1 – CAT III 1000 V / CAT IV 600 V overvoltage protection

▶Special features:

   o Harmonic ratio  measurement to quickly identify the presence of harmonics in AC signals

   o ZLOW, low impedance mode 2 to eliminate false readings caused by stray voltages

   o Vsense 2 for non-contact voltage detection

   o T1 – T2 differential temperature 2 measurement

   o Built-in flashlight 3

HIGHLIGHTS

▶Dust and water resistant, and the durability to withstand a 10-ft drop

▶Built-in LED flashlight and 400 hours of battery life

▶Keysight Remote Link Solution enabled

▶CAT III 1000 V and CAT IV 600 V Overvoltage Protection

What's included:

▶Standard 3-year Warranty (90 days for un-serialized accessories)

▶Test Lead Set

▶IR-to-USB Cable

▶Quick Start Guide

▶4 x 1.5 V Batteries

▶Certificate of Calibration

Harmonics ratio

In real life, harmonics are present in AC power due to the fact that many electronic devices are powered

by switched-mode current pulses which travel back into the power source. If these unwanted harmonics

become too large, the undesirable side effects include overheating that shortens the lifespan of motors,

generators, and transformers, premature tripping of circuit breakers, and blown fuses. One of the fastest

ways to detect and gauge the percentage of distortion due to harmonics is by measuring the harmonic

ratio of the incoming AC voltage. You can perform this very easily on the U1242B/C handheld DMM, with

just a button press. The percentage helps you to decide if further analysis of the power source is required

with an oscilloscope or a spectrum analyzer.

Low impedance mode (Zlow)

Stray voltages are usually encountered in non-energized electrical wiring adjacent to powered wires due

to capacitive or inductive coupling between these wires. The low impedance mode helps to reduce false

readings by dissipating these stray voltages, thus improving safety and measurement efficiency during

voltage measurement.

Vsense for non-contact voltage detection

Vsense is a unique method of non-contact voltage detection that safeguards users from exposure to hot

or live wires while making measurements in dangerous working environments. Upon detection of high AC

voltage, it produces a unique combination of beeping audio and blinking LED lights to alert users.

Dual and differential temperature

In the installation, maintenance, and troubleshooting of heating, ventilation, and air-conditioning (HVAC)

systems, temperature measurements are essential. As an example, to ensure boiler temperature adheres

to safety requirements, you would need to measure both boiler and air temperature simultaneously to

achieve accurate real-time readings. With a faulty air conditioning system, viewing the temperature

difference between the warm return air and cool air supply helps to reveal the cooling behavior of the

evaporator with respect to time. Now with the convenience of the U1242B/C DMM, you need only one

instrument to efficiently get dual and differential measurements.

Built-in flashlight with ergonomics in mind

Designed for handheld users working in poorly lit environments, the U1240C Series fits comfortably in

your palm, allowing you to single-handedly illuminate the test area with its easily activated built-in LED

flashlight. With ergonomics in mind, you can swiftly make more measurements without straining your

hands even over a longer period of time.
