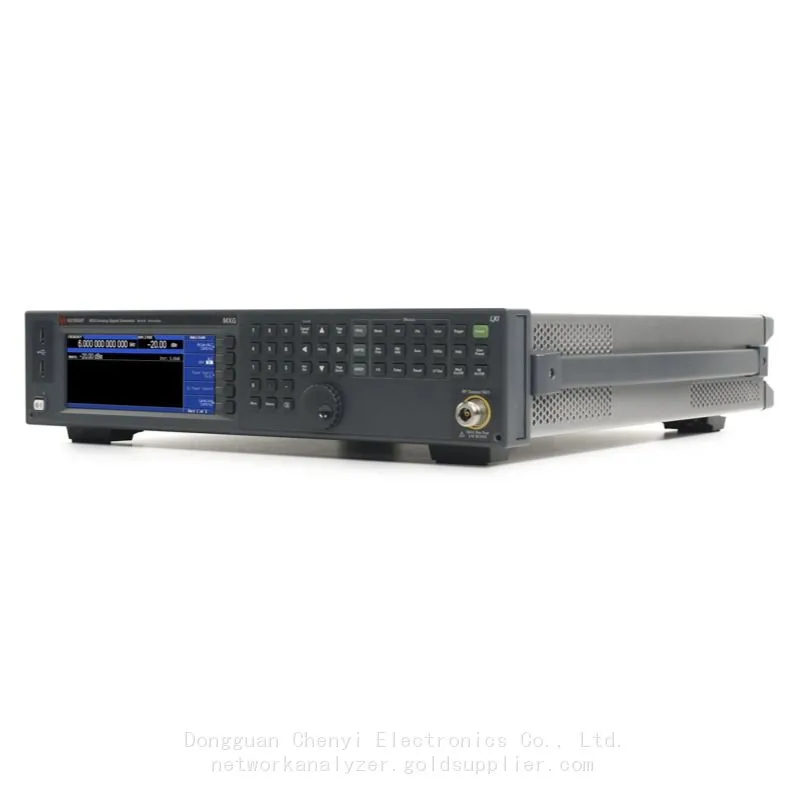

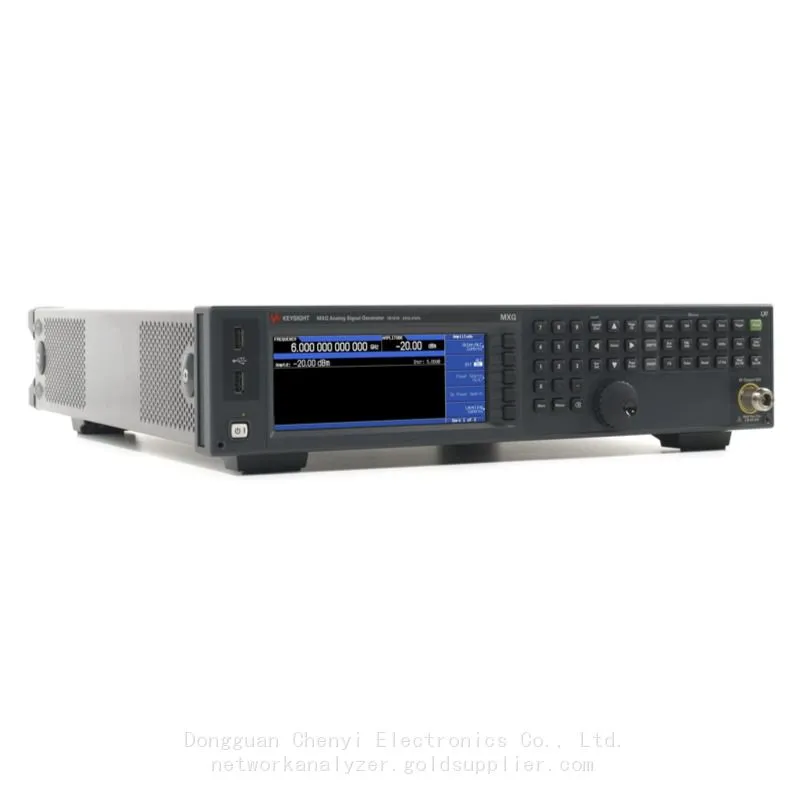

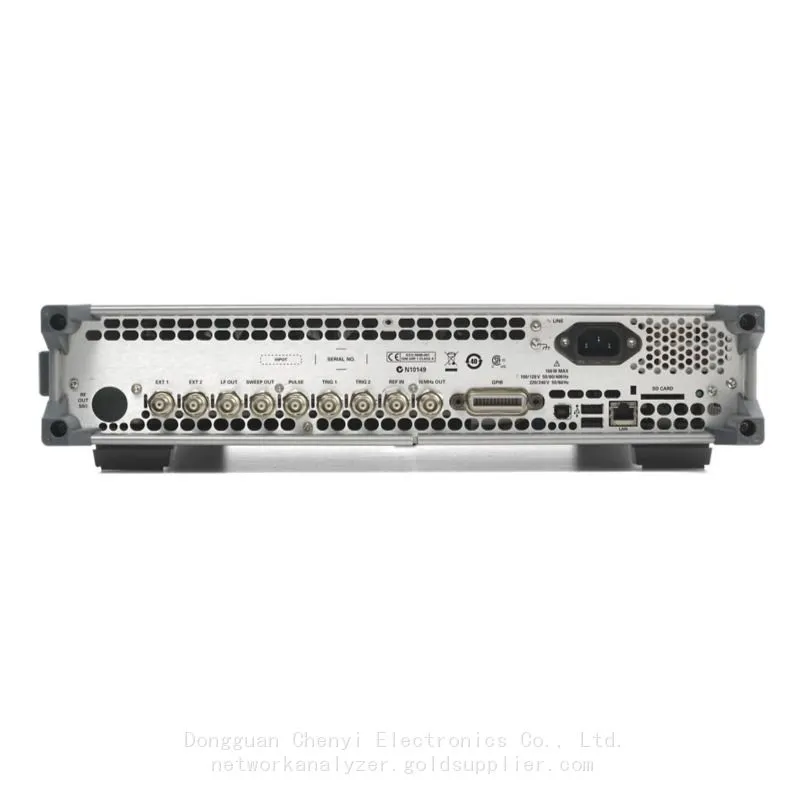

Keysight N5181B MXG X-Series RF Analog Signal Generator, 9 kHz to 6 GHz

Keysight N5181B MXG X-Series RF Analog Signal Generator, 9 kHz to 6 GHz

N5181B-Option 503：  9 kHz to 3 GHz

N5181B-Option 506：  9 kHz to 6 GHz

N5181B MXG X-Series RF analog high performance signal generators are fine-tuned to be your “golden transmitter”

 in R&D with 9 kHz to 6 GHz frequency coverage.

Highlights

▶NOTE: This product is going to be discontinued and will be replaced by N5185A MXG analog signal generator

Test your design within and beyond its limits

▶Generate the signals you need with outstanding hardware performance, including unmatched phase

   noise and spurious characteristics

▶Drive power amplifiers and characterize nonlinear behavior with industry-leading output power

▶Thoroughly test receiver performance by simulating complex analog modulation scenarios with

    multi-function generator capability

▶Lower your cost of ownership with 3-year cal cycles and comprehensive solutions for self-maintenance

Definitions and Conditions

Specifications represent warranted performance of a calibrated instrument that has been stored for a

minimum of 2 hours within the operating temperature of 0 to 55 °C, unless otherwise stated, and after

a 45 minute warm-up period. The specifications include measurement uncertainty. Data represented in

this document are specifications unless otherwise noted.

Typical (typ) describes additional product performance information that is not covered by the product

 warranty. It is performance beyond specifications that 80 percent of the units exhibit with a 90 percent

confidence level at room temperature (approximately  25 °C). Typical performance does not include

measurement uncertainty.

Nominal (nom) values indicate the expected mean or average performance, or an attribute whose

performance is by design, such as the 50 ohm connector. This data is not warranted and is measured

at room temperature (approximately 25 °C).

Measured (meas) describes an attribute measured during the design phase for purposes of communicating

expected performance, such as amplitude drift vs. time. This data is not warranted and is measured at room

temperature (approximately  25 °C).

Options

General Performance Features

N5181B-UNZ：    Fast frequency switching

N5181B-UNX：    Low phase noise

N5181B-UNY：    Enhanced low phase noise

N5181B-1EA：    High output power

N5181B-1EQ：    Low specified power (less than -110 dBm)

N5181B-1ER：    Flexible reference input (1-50 MHz)

N5181B-SD0：    No internal non-volatile memory/solid state drive

N5181B-099：    Expanded license key upgradability

Frequency Range

N5181B-503：    Frequency range, 9 kHz to 3 GHz

N5181B-506：    Frequency range, 9 kHz to 6 GHz

Connector Configuration

N5181B-UNM：   Standard front panel connector configuration

N5181B-1EM：    Move all connectors to rear panel

Calibration Documentation

N5181B-UK6：    Commercial calibration certificate with test data

N5181B-A6J：    ANSI Z540-1-1994 Calibration

N5181B-AMG：    Calibration + Uncertainties + Guardbanding (Accredited)

Analog Modulation

N5181B-UNW：   Narrow pulse modulation

N5181B-UNT：    AM, FM, phase modulation

N5181B-303：    Multifunction generator

Additional Features

N5181B-006：    Instrument security and removable memory card

Accessories

N5181B-AXT：    Hard transit case

N5181B-CVR：    Front panel cover

Software with Subscription

N5180302B：    Avionics VOR/ILS

N5180320B：    Pulse train generator
