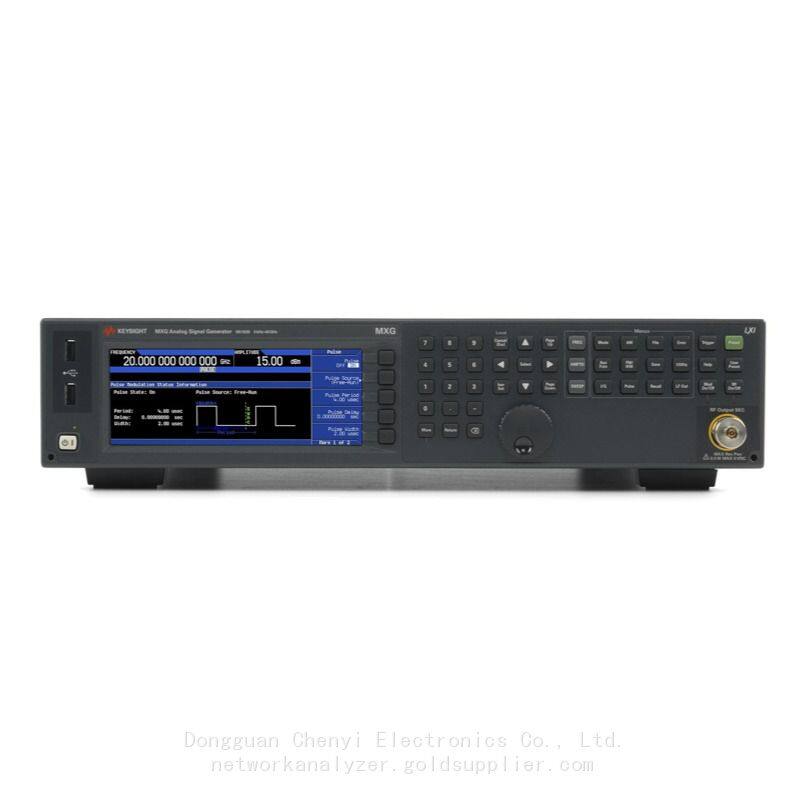

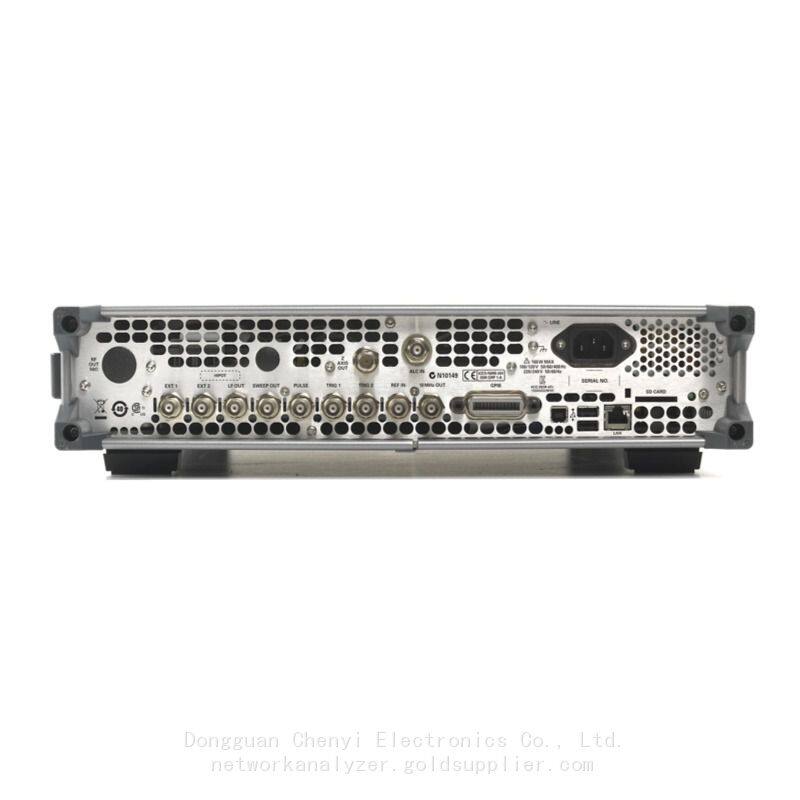

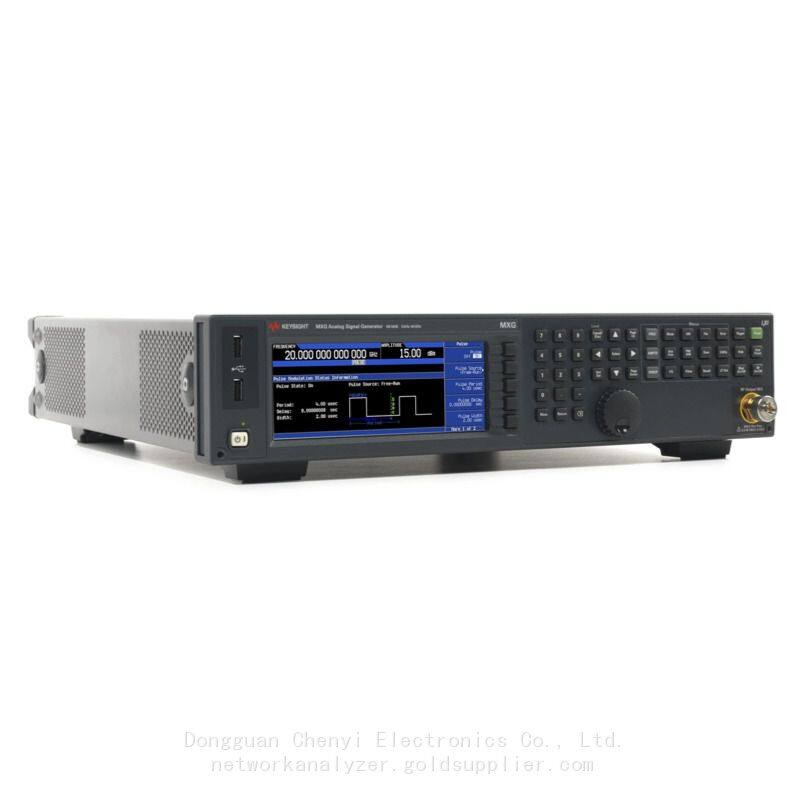

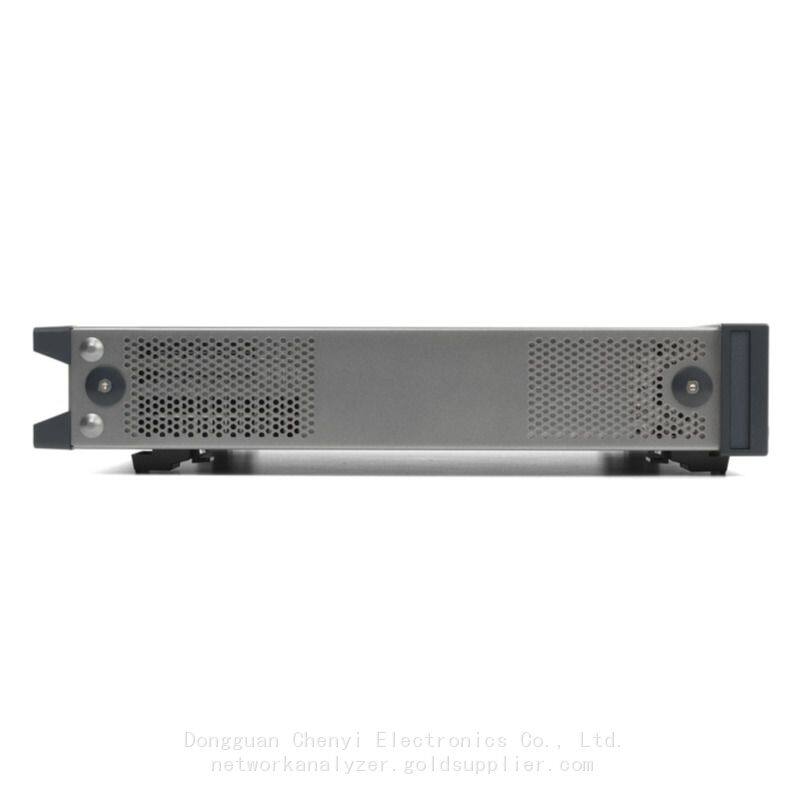

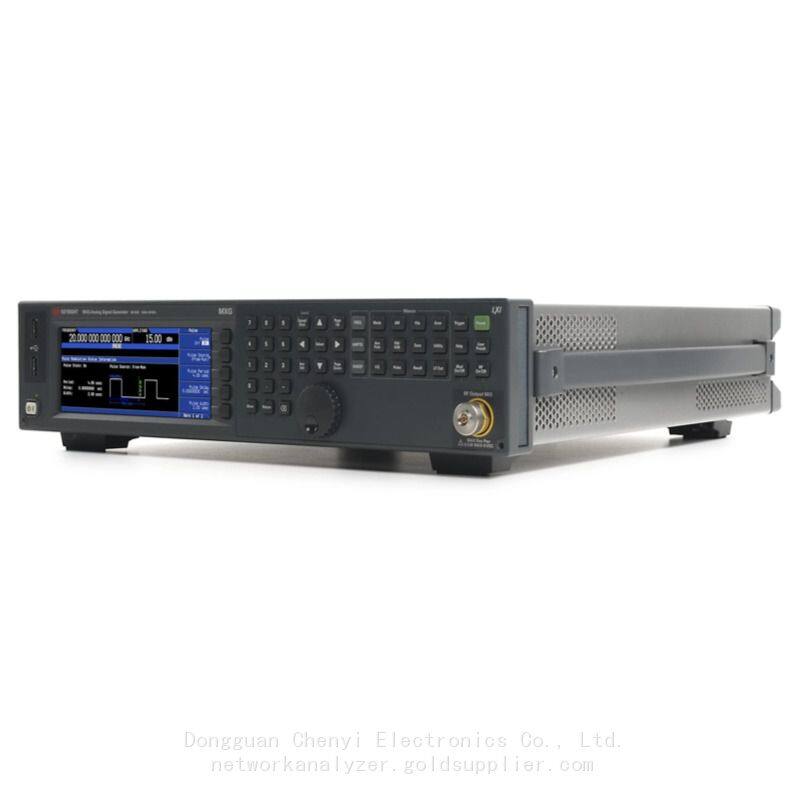

Keysight N5183B MXG X-Series Microwave Analog Signal Generator, 9 kHz to 40 GHz

Keysight N5183B MXG X-Series Microwave Analog Signal Generator, 9 kHz to 40 GHz

N5183B-Option 513：  9 kHz to 13 GHz

N5183B-Option 520：  9 kHz to 20 GHz

N5183B-Option 532：  9 kHz to 31.8 GHz

N5183B-Option 540：  9 kHz to 40 GHz

N5183B MXG X-Series microwave analog signal generator offers 9 kHz to 40 GHz frequency coverage

and near PSG levels of phase noise performance with advantages in size and speed.

Highlights

Maximize speed and rack space with the pure and precise MXG

▶Get a fast, compact (2U) alternative to the Performance Signal Generator (PSG) in the lab, depot or field

▶Address demanding tests of radar modules & systems with near-PSG levels of spectral purity

▶Compensate for system loss & drive high-power amplifiers: +19 dBm output power, -55 dBc harmonics &

 -68 dBc spurious @ 20 GHz

▶Reduce calibration time with switching speed 600 µs

▶Simulate narrowband chirps & radar antenna scans with up to five internal function generators that can be

   used with AM, FM, OM pulse modulation

Definitions

Specification (spec):

Specifications represent warranted performance of a calibrated instrument that hasbeen stored for a minimum of 2 hours within the operating temperature range of 0 to55 °C, unless otherwise stated, and after a 45 minutes warm-up period. Thespecifications include measurement uncertainty. Data represented in this documentare specifications unless otherwise noted.

Typical (typ):

Typical (typ) describes additional product performance information. It is performancebeyond specifications that 80 percent of the units exhibit with a 95 percentconfidence level at room temperature (approximately 25 °C). Typical performancedoes not include measurement uncertainty.

Nominal (nom) or measured (meas):

Nominal (nom) or measured (meas) describes a performance attribute that is bydesign or measured during the design phase for the purpose of communicatingsampled, mean, or average performance, such as the 50-ohm connector oramplitude drift vs. time. This data is not warranted and is measured at roomtemperature (approximately 25 °C)。

Options

General Performance Features

N5183B-UW2： Narrow pulse modulation up to 31.8 GHz

N5183B-UNZ ： Fast frequency switching

N5183B-UNW： Narrow pulse modulation

N5183B-UNT ： AM, FM, phase modulation

N5183B-303： Multifunction generator

N5183B-1ER： Flexible reference input (1-50 MHz)

N5183B-UZ2： Fast frequency switching greater than 1.15 ms and +/-0.05 percent of final frequency

N5183B-1EA： High output power

N5183B-1E1： Step attenuator, 115 dB

N5183B-006： Instrument security and removable memory card

N5183B-UNY： Enhanced low phase noise

N5183B-SD0 ： No internal non-volatile memory/solid state drive

Connector Type

N5183B-1ED ： Type-N (f) RF output connector

Connector Configuration

N5183B-1EM： Move all connectors to rear panel

Calibration Documentation

N5183B-UK6： Commercial calibration certificate with test data

N5183B-A6J： ANSI Z540-1-1994 Calibration

N5183B-AMG： Calibration + Uncertainties + Guardbanding (Accredited)

Accessories

N5183B-AXT： Hard transit case

U2052XA： USB Wide Dynamic Range Average Power Sensor 10MHz - 18GHz

U2053XA： USB wide dynamic range average power sensor 10MHz - 33GHz

U2054XA： USB Average Power Sensor 10MHz - 40GHz

N5183B-CVR： Front panel cover

Software with Subscription

N5180320B： Pulse train generator

Bundle Adjustment Option

N5183B-020： Better Value Bundle Discount: Includes Options 1EA, UNW, UNZ
