Keysight N5186A MXG Analog Signal Generator N5186A-Option 503，9 kHz to 3GHz

Keysight N5186A MXG Analog Signal Generator N5186A-Option 503，9 kHz to 3GHz

N5186A-Option 503：   9 kHz to 3GHz

N5186A-Option 506：   9 kHz to 6 GHz

N5186A-Option 508：   9 kHz to 8.5GHz

Compact, multichannel vector signal generator capable of signal generation up to 8.5 GHz with

1 GHz of modulation bandwidth per channel.

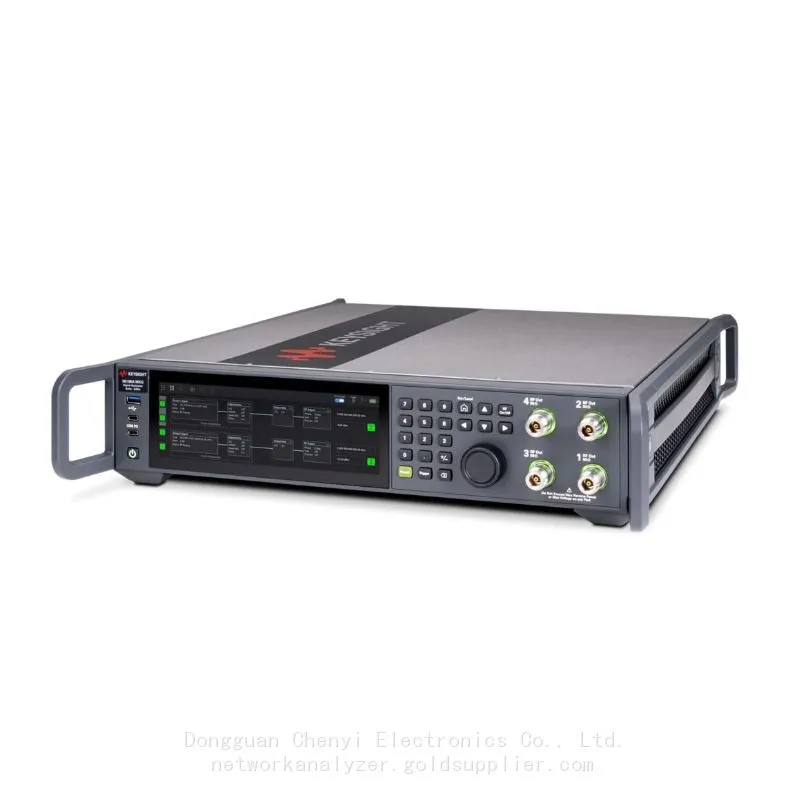

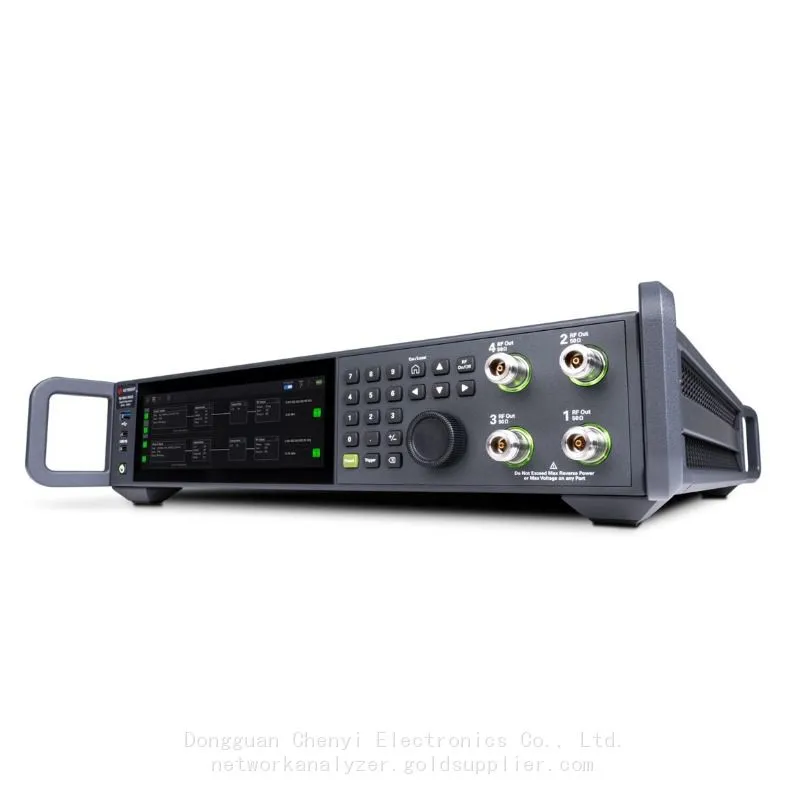

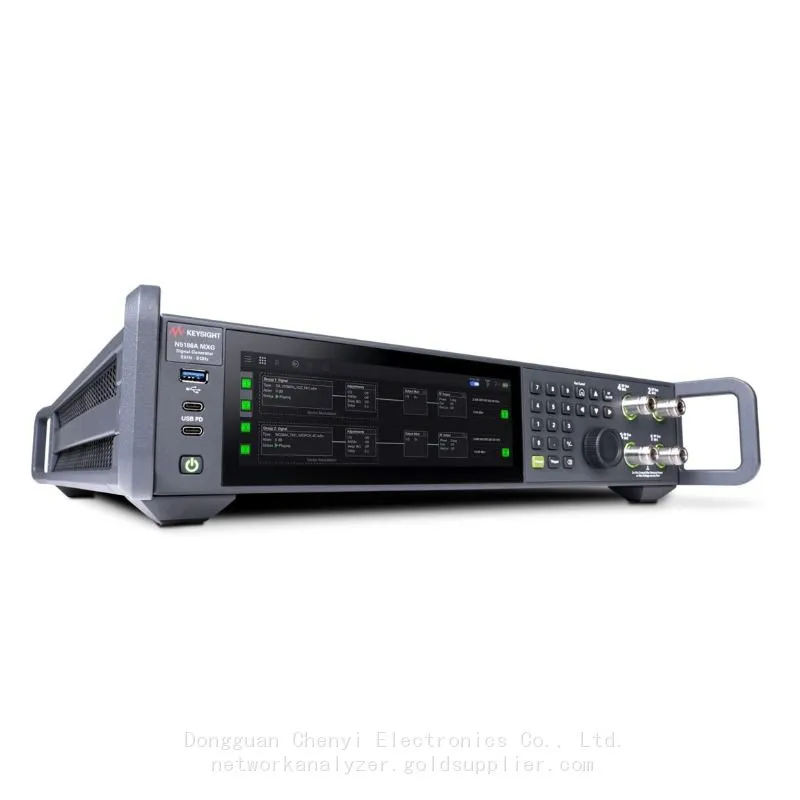

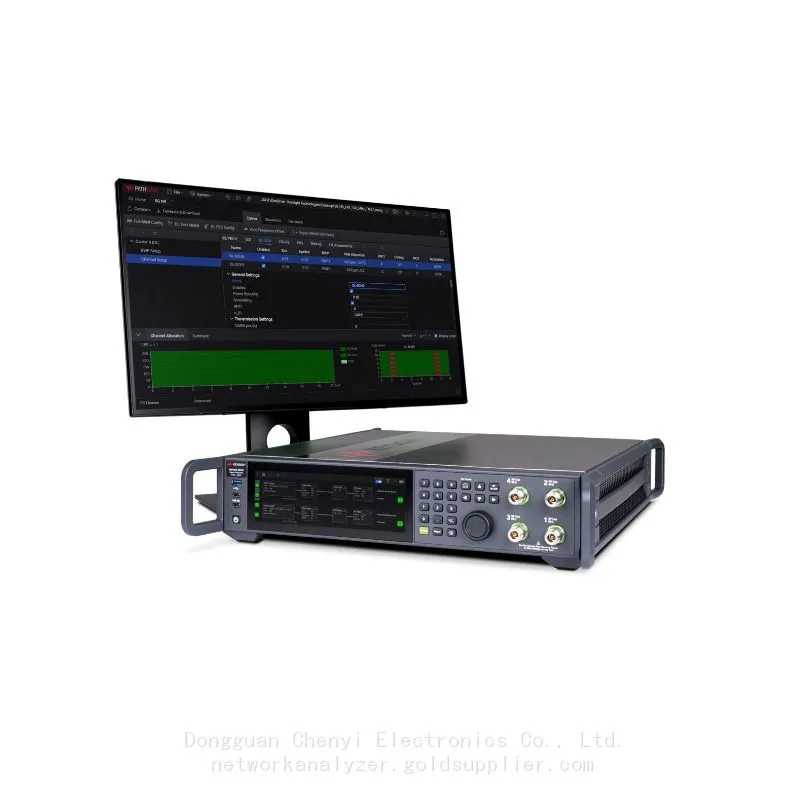

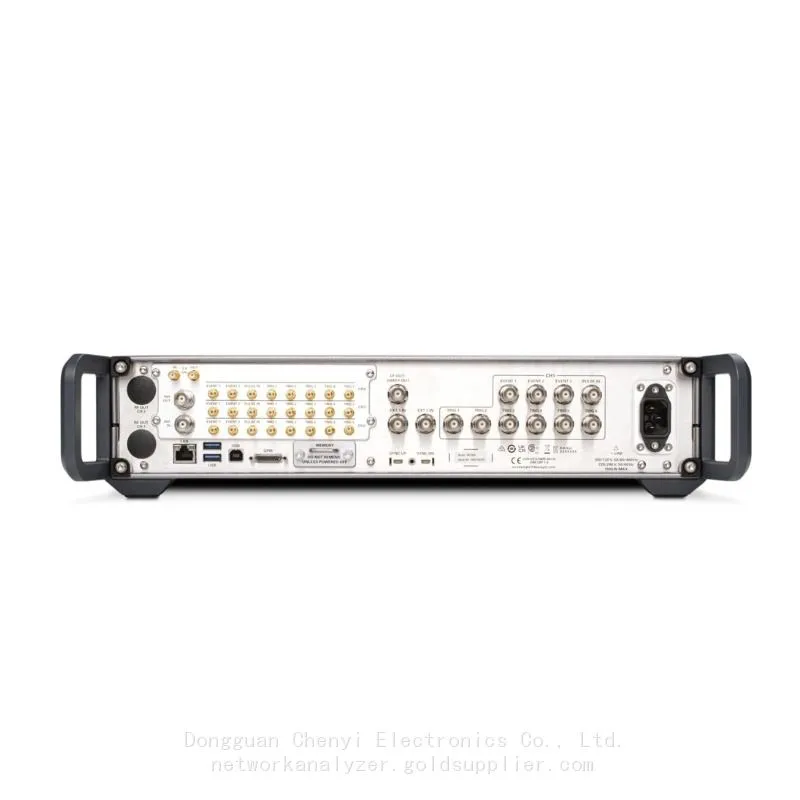

N5186A MXG High-Performance Multichannel Vector Signal Generator

Evolving technologies in wireless communications and aerospace and defense applications demand higher frequency coverage

using complex modulation schemes like multiple-input / multiple-output (MIMO), beamforming, and multiplexing to maximize

data throughput. The Keysight N5186A MXG vector signal generator provides consistent and repeatable results that are ideal for

multiport testing. The MXG’s custom DAC application-specific integrated circuits (ASICs) use direct digital synthesis to deliver

precise signals in one easy-to-use box.

▶Covers frequency range from 9 kHz to 8.5 GHz with excellent phase noise, output power, EVM and ACPR.

▶Supports military radio communications and MIMO tests with up to four unique outputs.

▶Generates complex wideband signals needed for carrier aggregation and digital pre-distortion (DPD)

   applications with up to 1 GHz bandwidth per channel.

▶Reduces measurement uncertainty in power amplifier characterizations when using the embedded reflectometer.

▶Maximizes production capacity without sacrificing rack space in a 2U box.

▶Enables fast access to a dedicated team of KeysightCare technical support engineers.

Options

Other Software

N6171A MATLAB Software

N7650B Signal Studio Waveform Licenses

Software with Subscription

N7600EMBC： Signal Studio for W-CDMA/HSPA+, waveform playback

N7601EMBC： Signal Studio for cdma2000/1xEV-DO, waveform playback

N7602EMBC： Signal Studio for GSM/EDGE/Evo, waveform playback

N7606EMBC： Signal Studio for Bluetooth, waveform playback

N7608EMBC： Signal Studio Pro for Custom Modulation, waveform playback

N7610EMBC： Signal Studio for IoT, waveform playback

N7611EMBC： Signal Studio for broadcast radio, waveform playback

N7626EMBC： Signal Studio for LTE V2X, waveform playback

N7612EMBC： Signal Studio for TD-SCDMA/HSPA, waveform playback

N7632EMBC： PathWave Signal Generation for NR V2X, waveform playback

N7640EMBC： Signal Studio for LMR, waveform playback

N7617EMBC： Signal Studio for WLAN 802.11, waveform playback

N7623EMBC： Signal Studio for digital video, waveform playback

N7624EMBC： Signal Studio for LTE/LTE-Advanced/LTE-A Pro FDD, waveform playback

N7625EMBC： Signal Studio for LTE/LTE-Advanced TDD, waveform playback

N7631EMBC： Signal Studio Pro for 5G NR/5G-Advanced, waveform playback

N7620EMBC： PathWave Signal Generation for Pulse Building, Waveform Playback

Accessories

11900C： Adapter 2.4 mm male to 2.4 mm female

11901C： Adapter 2.4 mm male to APC-3.5 female

11900B： Adapter 2.4 mm female to 2.4 mm female

11904C： Adapter 2.4 mm male to 2.92 mm female

11901B： Adapter 2.4 mm female to APC-3.5 female

83059B： Coaxial Adapter, 3.5mm Female-Female

83059C： Coaxial Adapter, 3.5mm Male-Female

Y1311A： Additional removable M.2 drive

Y1313A： Micro HDMI to Micro HDMI cable

Y1314A： Heavy Duty Rack Flange Kit
