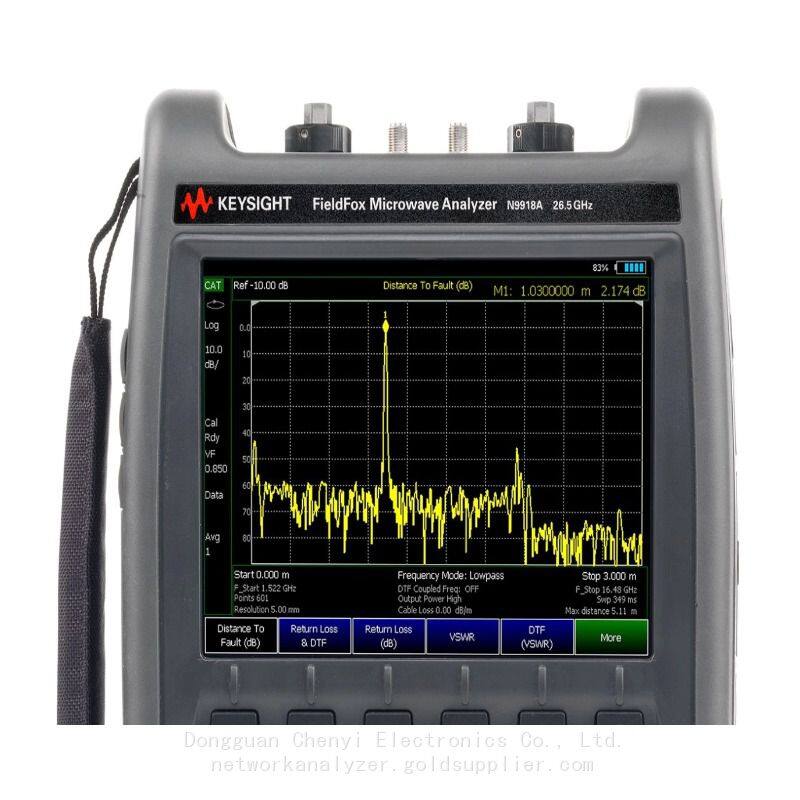

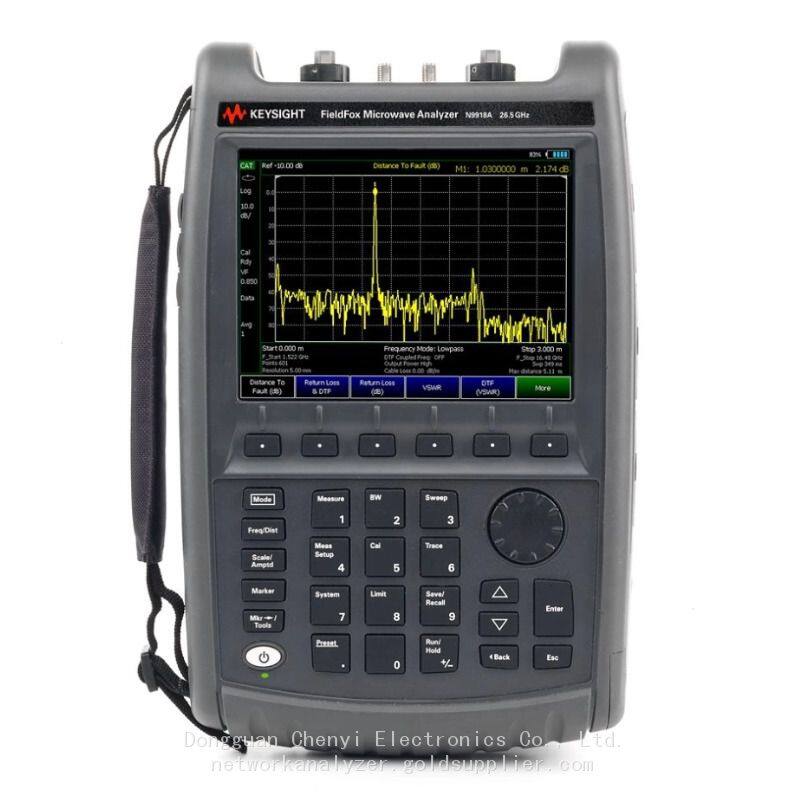

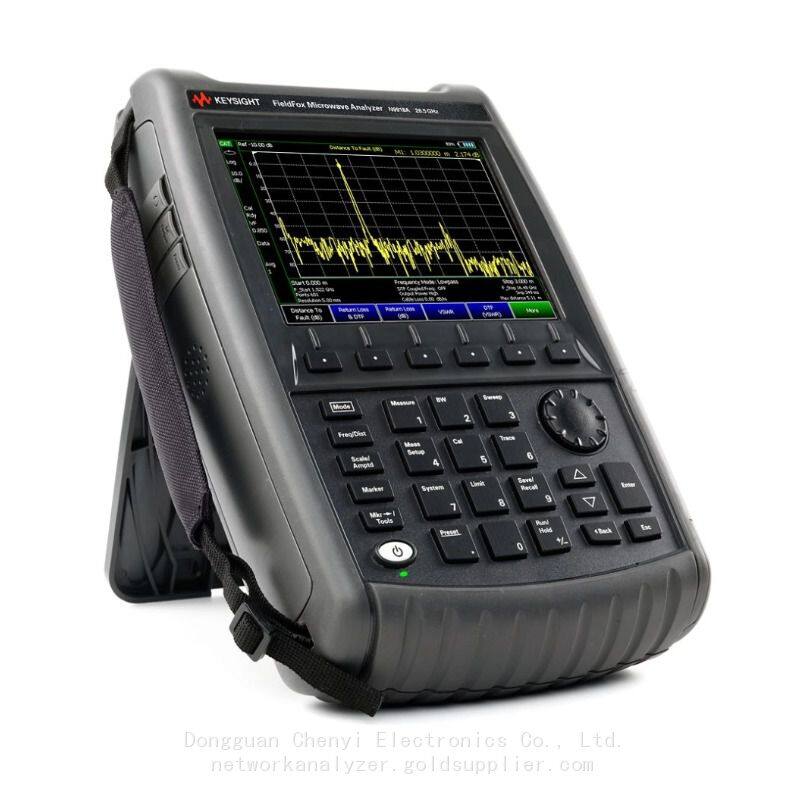

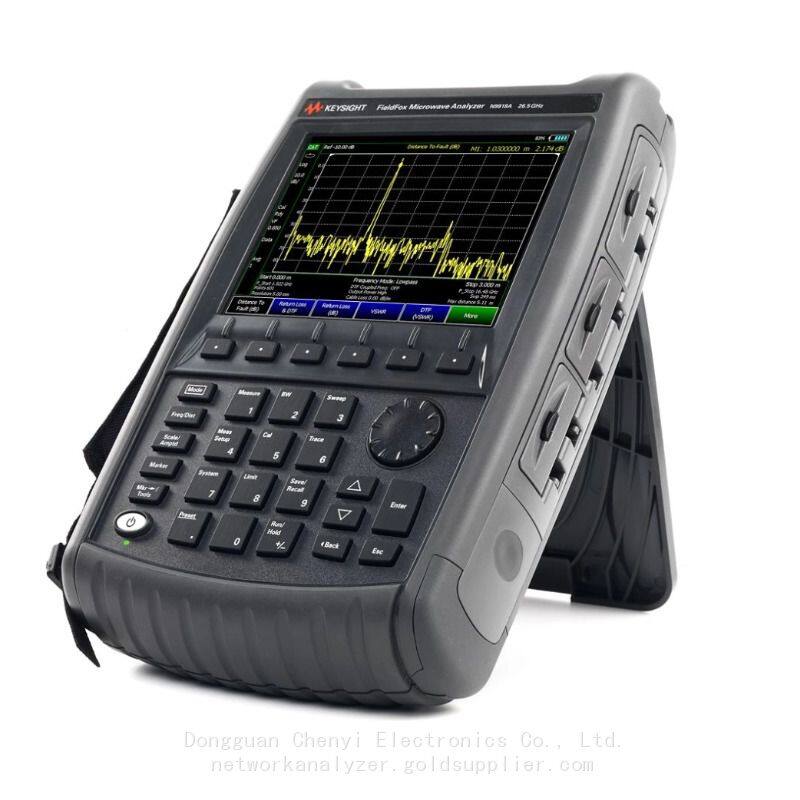

Keysight N9918A FieldFox Handheld Microwave Analyzer, 30 kHz to 26.5 GHz

Keysight N9918A FieldFox Handheld Microwave Analyzer, 30 kHz to 26.5 GHz

FieldFox Handheld Microwave Analyzer  N9915A ：30 kHz to 9 GHz

FieldFox Handheld Microwave Analyzer  N9916A ：30 kHz to 14 GHz

FieldFox Handheld Microwave Analyzer  N9917A ：30 kHz to 18 GHz

FieldFox Handheld Microwave Analyzer  N9918A ：30 kHz to 26.5 GHz

A lightweight, durable, cable and antenna analyzer, spectrum analyzer, network analyzer, and more

Highlights

Never Sacrifice Capability or Portability

Keysight's FieldFox portable analyzers are equipped to handle your toughest working environments during

routine maintenance, in-depth troubleshooting, and anything in between. Choose the Keysight FieldFox

configuration that best meets your needs.

▶ Standard model includes cable and antenna analyzer.

▶ Expand capabilities with optional VNA, spectrum analyzer, built-in power meter, vector voltmeter, and more.

▶ Save time by measuring DTF and TDR in the same sweep.

▶ Measure all four S-parameters simultaneously.

▶ Make accurate spectrum analyzer measurements (± 0.5 dB) without warm-up.

▶ Calibrate easily with QuickCal.

▶ Use the industry's lightest all-in-one analyzer at only 3.0 kg (6.6 lb).

What's included:

▶ AC/DC adapter

▶ Localized power cord

▶ Rechargeable Li-ion battery

▶ Soft carrying case with backpack and shoulder strap

▶ Quick Reference Guide

Data Sheets

Specification (spec)

Specifications include guardbands to account for the expected statistical performance distribution,

measurement uncertainties, and changes in performance due to environmental conditions. Specifications

are warranted performance. FieldFox must be within its calibration cycle. No warm-up required for the spectrum

analyzer specifications listed on pages 25 through 50.

Typical

Describes additional product performance information not covered by the product warranty. It is performance

beyond specifications that 80% of the units exhibit with a 90% confidence level over the temperature range

23 ± 5°C, unless otherwise noted. Typical performance does not include measurement uncertainty. FieldFox

must be within its calibration cycle.

Nominal

A general, descriptive term or design parameter. It is not tested, and not covered by the product warranty.

FieldFox must be within its calibration cycle.

Test port output specifications

High power in N991xA and N992xA refers to the target output power level of the analyzer when the Power

Setting is set to High. As an example, if you have a frequency sweep from 3 to 6.5 GHz, the analyzer will achieve

the power level of -1 dBm across the band.

Low power level for N991xA and N992xA analyzers is a flat -45 dBm across the whole frequency band and is the

output of the analyzer when the Power Setting is set to Low.

High power in the N995xA refers to the target output power level of the analyzer when the Power Setting is set

to High. As an example, if you have a frequency sweep from 39 to 46 GHz, the analyzer will achieve the power

level of -2 dBm across the band.

Low power level for N995xA analyzers is the lowest power level that can be set and is the output of the analyzer

when the Power Setting is set to Low.

Max leveled power in the N995xA refers to the maximum leveled (flattened) power that can be achieved across

the designated frequency range. For example, if you have a frequency sweep from 32 to 44 GHz and set up the

analyzer to measure all four S-parameters, needing both ports 1 and 2, the maximum power the analyzer can be

set to is -6 dBm.
