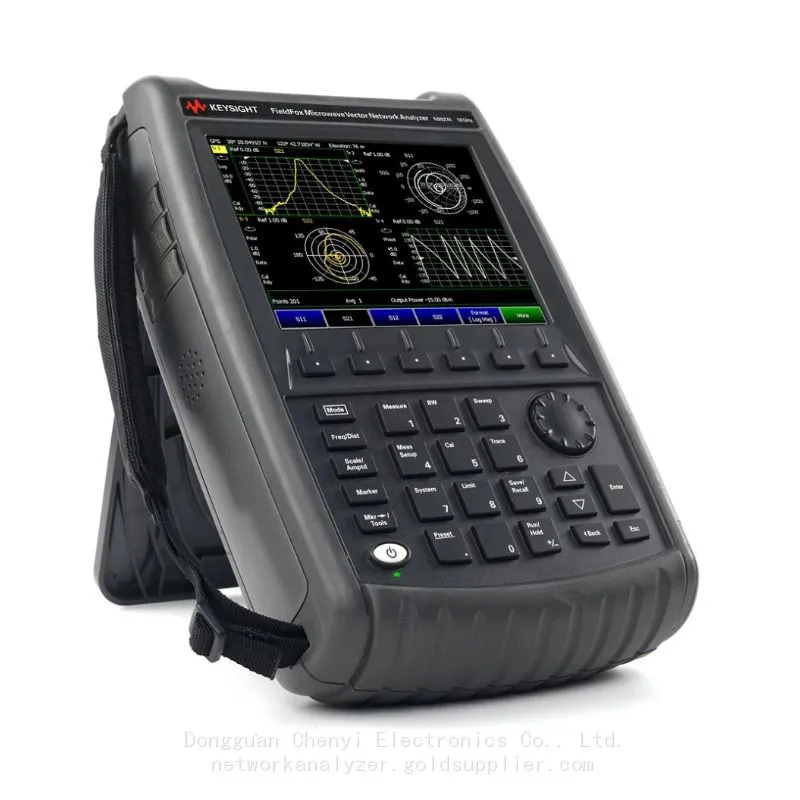

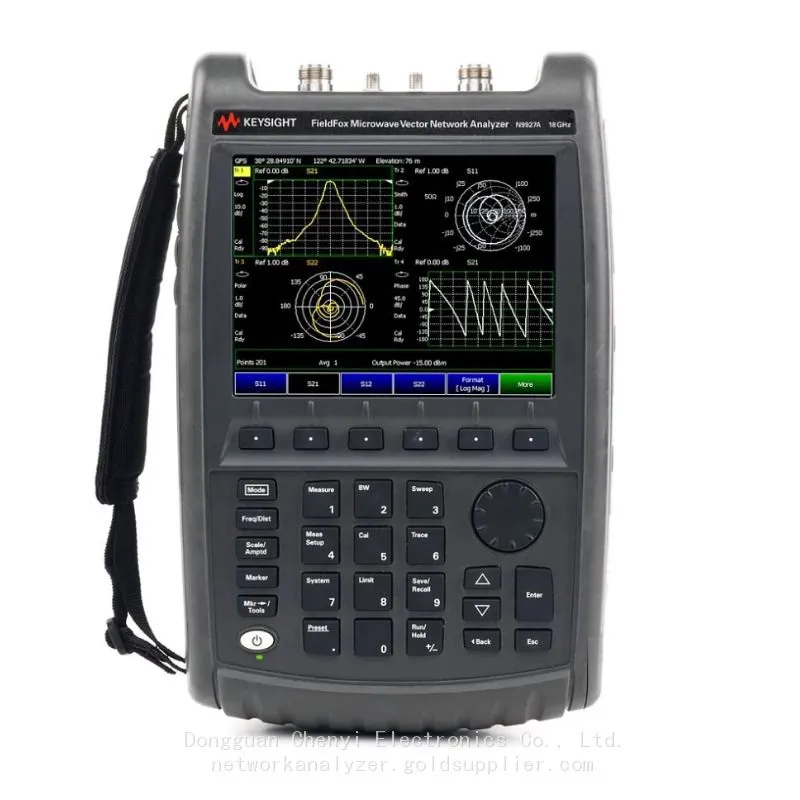

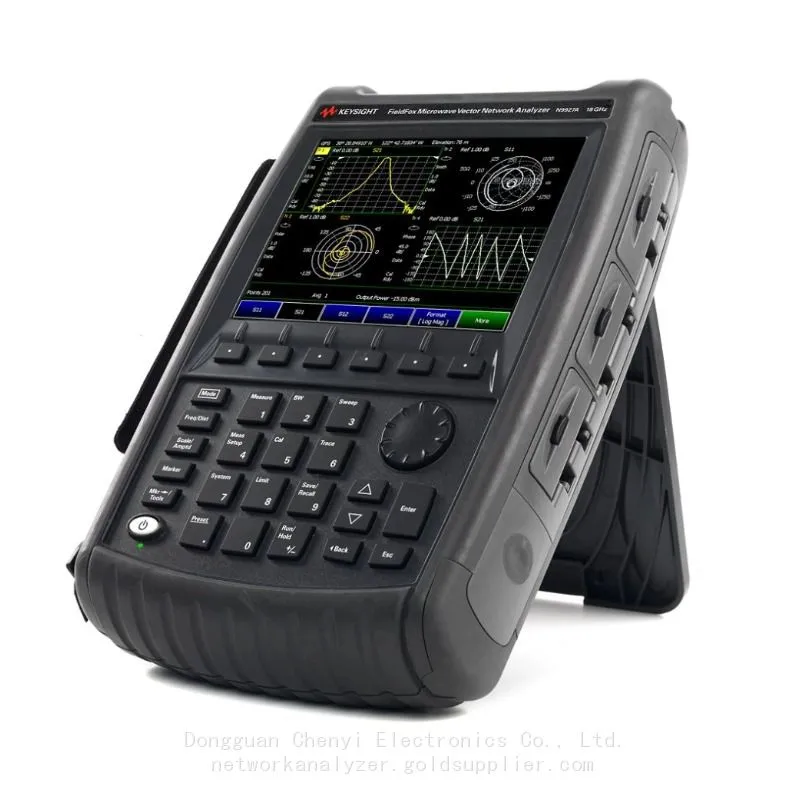

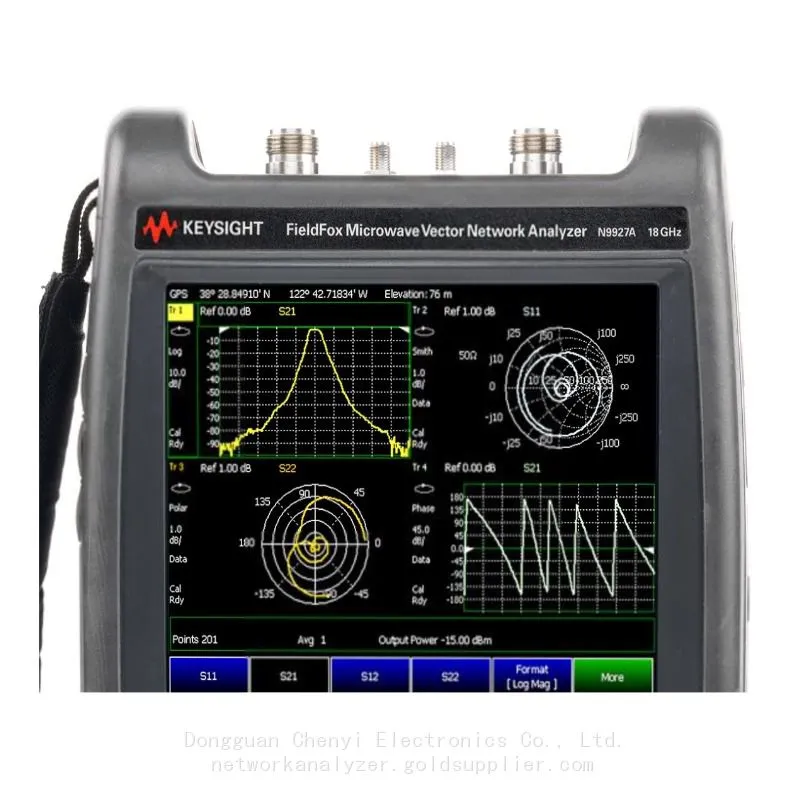

Keysight N9927A FieldFox Handheld Microwave Vector Network Analyzer, 30 kHz to 18 GHz

Keysight N9927A FieldFox Handheld Microwave Vector Network Analyzer, 30 kHz to 18 GHz

FieldFox Handheld Microwave Vector Network Analyzer N9925A ：30 kHz to 9 GHz

FieldFox Handheld Microwave Vector Network Analyzer N9926A ：30 kHz to 14 GHz

FieldFox Handheld Microwave Vector Network Analyzer N9927A ：30 kHz to 18 GHz

FieldFox Handheld Microwave Vector Network Analyzer N9928A ：30 kHz to 26.5 GHz

FieldFox Handheld Microwave Vector Network Analyzer

Highlights

Never Sacrifice Capability or Portability

Keysight's FieldFox portable analyzers are equipped to handle your toughest working environments

during routine maintenance, in-depth troubleshooting, and anything in between. Choose the Keysight

FieldFox configuration that best meets your needs.

▶Configure as a full, two-port VNA, time-domain reflectometer, vector voltmeter, cable and antenna analyzer,

  and more.

▶Measure all four S-parameters simultaneously with a single connection and up to 95 dB of dynamic range.

▶Perform accurate testing with QuickCal, full two-port unknown thru Cal, and Thru, Reflect, Line (TRL)

  calibration in the field.

▶Measure average and pulse power easily with a USB power sensor.

▶Carry the lightest handheld VNA at only 3.0 kg (6.6 lb.).

What's included:

▶AC/DC adapter

▶Localized power cord

▶Rechargeable Li-ion battery

▶Soft carrying case with backpack and shoulder straps

▶Quick Reference Guide

Data Sheets

Specification (spec)

Specifications include guardbands to account for the expected statistical performance distribution,

measurement uncertainties, and changes in performance due to environmental conditions. Specifications

are warranted performance. FieldFox must be within its calibration cycle. No warm-up required for the spectrum

analyzer specifications listed on pages 25 through 50.

Typical

Describes additional product performance information not covered by the product warranty. It is performance

beyond specifications that 80% of the units exhibit with a 90% confidence level over the temperature range

23 ± 5°C, unless otherwise noted. Typical performance does not include measurement uncertainty. FieldFox

must be within its calibration cycle.

Nominal

A general, descriptive term or design parameter. It is not tested, and not covered by the product warranty.

FieldFox must be within its calibration cycle.

Test port output specifications

High power in N991xA and N992xA refers to the target output power level of the analyzer when the Power

Setting is set to High. As an example, if you have a frequency sweep from 3 to 6.5 GHz, the analyzer will achieve

the power level of -1 dBm across the band.

Low power level for N991xA and N992xA analyzers is a flat -45 dBm across the whole frequency band and is the

output of the analyzer when the Power Setting is set to Low.

High power in the N995xA refers to the target output power level of the analyzer when the Power Setting is set

to High. As an example, if you have a frequency sweep from 39 to 46 GHz, the analyzer will achieve the power

level of -2 dBm across the band.

Low power level for N995xA analyzers is the lowest power level that can be set and is the output of the analyzer

when the Power Setting is set to Low.

Max leveled power in the N995xA refers to the maximum leveled (flattened) power that can be achieved across

the designated frequency range. For example, if you have a frequency sweep from 32 to 44 GHz and set up the

analyzer to measure all four S-parameters, needing both ports 1 and 2, the maximum power the analyzer can be

set to is -6 dBm.
