Product Overview — What Is SM200B Real-Time Spectrum Analyzer and Monitoring Receiver
Product Overview — What Is SM200B Real-Time Spectrum Analyzer and Monitoring Receiver
Title：SM200B Real-Time Spectrum Analyzer & Monitoring Receiver 100kHz-20GHz Overview

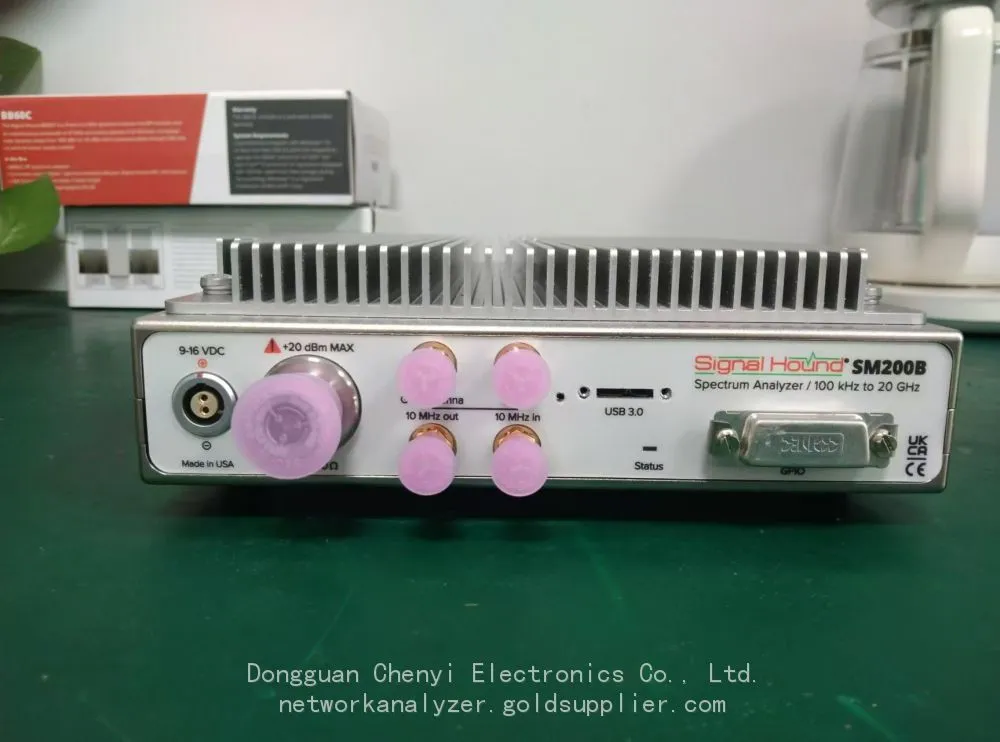

The SM200B is a high-performance PC-based real-time spectrum analyzer and monitoring receiver covering frequency range from 100 kHz up to 20 GHzSignal Hou.... Designed for RF engineers, spectrum monitoring teams, test system integrators and EMC laboratories, this compact unit delivers lab-grade performance without the high cost of traditional benchtop RF instruments.
Core Hardware Specifications
Working via USB 3.0 high-speed interface, SM200B features 160 MHz instantaneous bandwidth (IBW), up to 110 dB dynamic range, and industry-leading 1 THz/sec sweep speed under 30 kHz RBW settingSignal Hou.... Ultra-low phase noise guarantees EVM measurement error below 0.1 %, matching performance of premium spectrum analyzers on market. It supports calibrated I/Q streaming and up to 2-second full-bandwidth I/Q capture buffer for transient signal recordingSignal Hou....
Different from traditional swept-tuned spectrum analyzers, SM200B combines FPGA signal processing and host PC computing power. All RF acquisition happens inside the hardware module; signal analysis, visualization and data storage run on connected Windows or Linux PC platformsSignal Hou....
Dual Role: Spectrum Analyzer + Monitoring Receiver
SM200B works as both real-time spectrum analyzer and wideband monitoring receiver. As a spectrum analyzer, it completes general RF measurement: power reading, spurious detection, modulation quality check. As a monitoring receiver, it supports continuous spectrum surveillance, intermittent burst signal capture, waterfall display, persistent trace and trigger functions for unknown RF interception.
Typical Use Cases
Common deployments include RF product development, wireless device testing, spectrum surveillance, EMI pre-compliance test, antenna & filter characterization, custom automated test system, and educational RF labsSignal Hou.... With open API support, developers can integrate SM200B into ATE platforms or remote spectrum monitoring networks.
If you need a cost-effective 20 GHz real-time spectrum analyzer and monitoring receiver for lab or field deployment, SM200B deserves your full evaluation.
