Signal Hound’s RF Spectrum Analysis System: Empowering 5G Deployment and Optimization

Signal Hound’s RF Spectrum Analysis System: Empowering 5G Deployment and Optimization

The global rollout of 5G technology has ushered in a new era of ultra-fast connectivity, low latency, and massive device integration—transforming industries from telecommunications and smart cities to industrial automation and telemedicine. However, 5G deployment and optimization come with unique RF challenges: crowded spectrum bands, complex signal propagation (especially for mmWave), and the need to ensure consistent coverage and performance across diverse environments. To address these hurdles, telecom engineers and network operators are turning to reliable, flexible RF spectrum analysis tools. Signal Hound’s RF Spectrum Analysis System stands out as a tailored solution for 5G use cases, combining portable hardware, intuitive software, and specialized accessories to streamline every stage of 5G network lifecycle—from pre-deployment planning to post-launch optimization. In this blog, we’ll explore how this system solves key 5G RF challenges and delivers tangible value to 5G industry professionals.

1. Why Signal Hound’s System Is Tailored for 5G Challenges

5G networks operate across a diverse spectrum, including sub-6 GHz bands (for wide coverage) and mmWave bands (for high bandwidth). This dual-band operation, coupled with technologies like beamforming and massive MIMO, creates complex RF dynamics that demand precise analysis. Unlike generic spectrum analyzers, Signal Hound’s solution is designed as an integrated ecosystem—pairing industry-leading RF receivers (BB60C, BB60D, SM200) with the powerful Spike software—to address 5G-specific needs. Its core advantages for 5G applications include portability for field testing in urban/rural environments, wide frequency coverage spanning sub-6 GHz to mmWave, real-time signal visualization, and cost-effectiveness for large-scale deployment projects. Whether you’re conducting site surveys, detecting interference, or validating beamforming performance, this system adapts to 5G’s unique requirements without compromising accuracy.

2. Key Components of the System for 5G Testing

Signal Hound’s RF Spectrum Analysis System’s three foundational pillars—hardware, software, and accessories—are uniquely optimized to support 5G testing workflows. Let’s break down how each component contributes to successful 5G deployment and optimization:

a. Hardware: 5G Band-Coverage & Portable Design

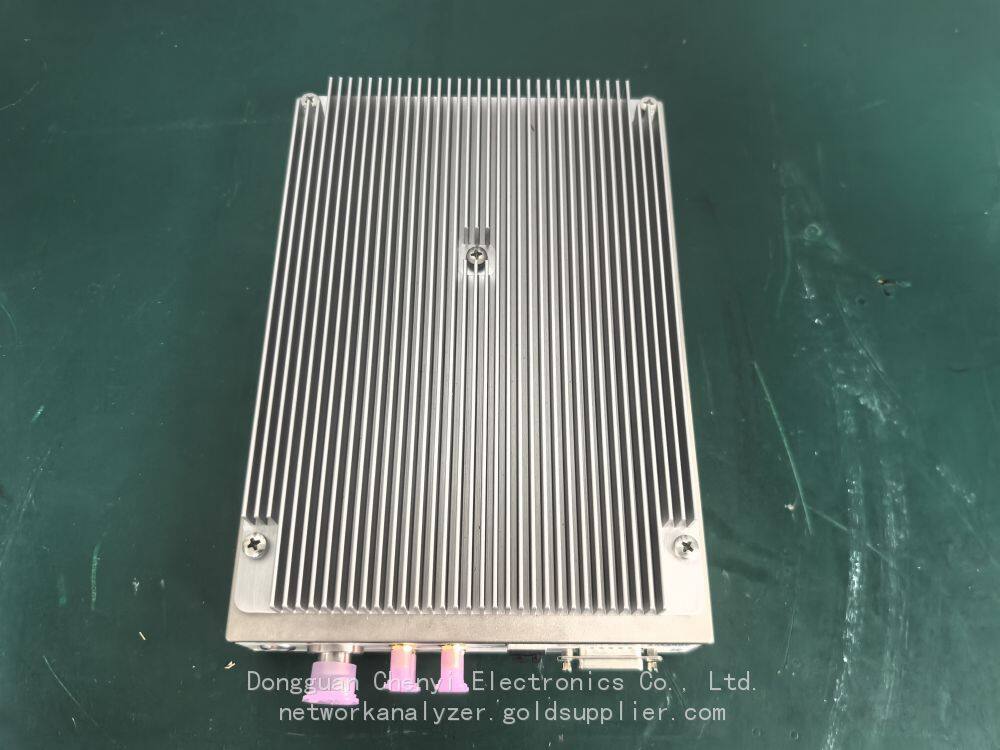

The system’s RF receivers are engineered to cover 5G’s critical frequency bands. The flagship BB60C, with a frequency range of 9 kHz to 6 GHz, is perfectly suited for testing sub-6 GHz 5G bands (e.g., n77, n78, n79)—the workhorse for wide-area 5G coverage. It delivers a noise figure of 1.5 dB at 1 GHz and sensitivity down to -160 dBm, enabling reliable detection of weak 5G signals in urban canyons or rural areas where propagation is challenging. For mmWave 5G testing (e.g., n257, n258, n260 bands), the SM200 extends coverage up to 20 GHz, supporting high-bandwidth 5G applications like fixed wireless access and smart city deployments.

A game-changer for 5G field testing is the hardware’s USB-powered, lightweight design. Weighing as little as 0.5 kg, receivers like the BB60C can be easily carried in a laptop bag, allowing engineers to conduct on-site testing across multiple cell sites in a single day. This portability is critical for 5G site surveys, where testing needs to be done in diverse locations—from downtown skyscrapers (assessing mmWave propagation through buildings) to suburban areas (validating sub-6 GHz coverage). The elimination of bulky external power supplies further enhances mobility, making it easy to set up testing in remote or hard-to-reach areas.

b. Software: Spike’s 5G-Optimized Analysis Tools

Spike software is the brains behind the system’s 5G testing capabilities, offering intuitive, 5G-optimized features that simplify complex RF analysis. The star feature for 5G is the Heatmap Analysis Mode, which visualizes time, frequency, and signal power in color-coded heatmaps. This allows engineers to quickly identify 5G coverage dead zones, signal leakage, and interference hotspots—critical for optimizing cell site placement and antenna orientation. For example, a heatmap can reveal that a mmWave 5G signal is blocked by a high-rise building, prompting adjustments to beamforming parameters or the addition of a small cell.

Spike also supports advanced 5G testing functionalities, such as real-time spectrum analysis for monitoring dynamic 5G signals (essential for beamforming validation) and digital signal demodulation for verifying 5G waveform integrity. Custom sweep settings allow engineers to focus on specific 5G bands, reducing testing time, while data export capabilities (CSV, PNG) enable the generation of compliance reports for regulatory bodies. Signal Hound’s regular software updates ensure Spike stays compatible with evolving 5G standards, including 5G-Advanced features like enhanced mobile broadband (eMBB) and ultra-reliable low-latency communication (URLLC).

c. Accessories: Enhancing 5G Testing Capabilities

Signal Hound’s purpose-built accessories extend the system’s capabilities for 5G-specific challenges. Preamplifiers boost sensitivity, critical for detecting weak mmWave 5G signals that are prone to attenuation by obstacles like buildings and foliage. External band-pass filters help reduce interference from adjacent wireless systems (e.g., Wi-Fi 6/6E, LTE) that operate near 5G bands, ensuring accurate analysis of 5G signals. Specialized mmWave antennas enable precise testing of high-frequency 5G bands, while rugged carrying cases protect the hardware during field testing in harsh weather conditions—common during outdoor 5G site surveys.

3. Core 5G Applications for Signal Hound’s System

Signal Hound’s RF Spectrum Analysis System supports every critical stage of the 5G network lifecycle, from pre-deployment planning to ongoing optimization. Here are the key 5G applications where the system delivers maximum value:

a. Pre-Deployment Site Surveys & Planning

Before deploying 5G cell sites, engineers use the system to conduct comprehensive site surveys. The portable BB60C and SM200 receivers, paired with Spike’s Heatmap Analysis Mode, help map existing RF conditions, identify potential interference sources (e.g., LTE towers, industrial equipment), and determine optimal cell site locations. For sub-6 GHz 5G, this ensures wide coverage with minimal overlap; for mmWave, it helps identify line-of-sight paths and potential obstacles. This pre-deployment planning reduces costly rework and ensures the network is built for optimal performance from day one.

b. 5G Coverage Mapping & Dead Zone Identification

After deployment, the system is used to validate 5G coverage and identify dead zones. Spike’s real-time spectrum analysis and heatmap visualization allow engineers to walk or drive test routes, capturing 5G signal strength across the coverage area. Cooler colors (blue) indicate weak or non-existent signals (dead zones), while warmer colors (red/orange) show strong coverage. For example, a heatmap might reveal a dead zone in a shopping mall’s basement, prompting the deployment of a small cell. This coverage mapping ensures that end-users receive consistent 5G service, a key factor in customer satisfaction.

c. Interference Detection & Mitigation

Interference is a major threat to 5G performance, especially in crowded urban environments where multiple wireless systems operate in close proximity. Signal Hound’s system excels at detecting and mitigating 5G interference. Using Spike’s real-time analysis, engineers can quickly identify interference sources—such as Wi-Fi 6/6E networks, industrial sensors, or unauthorized transmitters—that are disrupting 5G signals. The system’s high sensitivity ensures even faint interference signals are detected, while external filters help isolate 5G bands for accurate analysis. Once identified, engineers can reconfigure 5G base station parameters, adjust antenna angles, or deploy interference filters to restore performance.

d. 5G Beamforming & Performance Validation

Beamforming is a key 5G technology that focuses signal energy toward specific users, improving coverage and capacity. Signal Hound’s system is used to validate beamforming performance, ensuring that 5G base stations are directing signals accurately. The SM200’s mmWave coverage is particularly valuable here, as beamforming is widely used in high-frequency 5G bands. Engineers use the system to measure beam direction, signal strength, and coverage overlap, ensuring that beamforming is optimized for maximum efficiency. This validation is critical for delivering the low latency and high bandwidth that 5G promises, especially for applications like autonomous vehicles and industrial IoT.

4. Why 5G Professionals Choose Signal Hound’s System

In a crowded market of RF testing solutions, Signal Hound’s RF Spectrum Analysis System stands out as a top choice for 5G professionals. Here are the key advantages that make it indispensable for 5G deployment and optimization:

• 5G Band Coverage: Hardware covers both sub-6 GHz and mmWave 5G bands, supporting all key 5G use cases.

Final Thoughts for 5G Professionals

• Portability for Field Testing: USB-powered, lightweight design enables easy on-site testing across multiple cell sites.

 and ease of use required to get the job done right.Signal Hound’s RF Spectrum Analysis System is more than just a testing tool—it’s a strategic asset for 5G professionals looking to streamline deployment, optimize performance, and deliver reliable 5G service. Its tailored support for 5G bands, portable design for field testing, and intuitive software make it the ideal solution for addressing the unique RF challenges of 5G technology.

• Intuitive 5G-Optimized Software: Spike’s Heatmap Analysis Mode and real-time visualization simplify complex 5G signal analysis.

If you’re in the market for an RF spectrum analysis solution that balances power and practicality, Signal Hound’s ecosystem is worth a closer look. Many vendors offer demos, so you can test the system with your specific use case before making a decision.

• Cost-Effectiveness: Delivers professional-grade 5G testing capabilities at a fraction of the cost of traditional benchtop analyzers, ideal for large-scale 5G rollouts.

Have you used Signal Hound’s RF Spectrum Analysis System for your projects? Share your experiences and insights in the comments below—we’d love to hear how it’s helped you tackle your RF testing challenges!

• Scalability: Modular design allows teams to start with sub-6 GHz testing and add mmWave capabilities as their 5G projects evolve.
