Signal Hound PN400 Phase Noise and VCO Test System 100 kHz to 43.5 GHz
Signal Hound PN400 Phase Noise and VCO Test System 100 kHz to 43.5 GHz
Bringing impressive phase noise, VCO testing, and spectrum analysis measurements together in one powerful and precise workflow.
Operating at a frequency range of 100 kHz to 43.5 GHz, the PN400 harnesses the power of two SM family spectrum analyzers to create Signal Hound’s Phase Noise and VCO Test System. Enabling cross-correlation unlocks phase noise floors 20-30 dB lower than the capabilities of a single SM200 / SM435. The integrated low noise variable power supply and tune voltage facilitate precise VCO testing and characterization that includes tuning sensitivity and VCO pushing. Achieve high-performance automated test results in diverse systems with the PN400.
Signal Hound’s new PN400 Phase Noise Test Tool Kit unlocks enterprise-grade accuracy and cutting-edge features in your test and measurement environment. This feature-rich software kit is activated through Spike™ and requires a separate purchase with an annual renewal.
PN400 Features:
Phase noise testing and characterization
VCO testing and characterization
Production and manufacturing testing
Source characterization
System level debug
All the power of Signal Hound’s spectrum analysis capabilities
Required for PN400 Operation:
PN400 Phase Noise & VCO Tester
PN400 Phase Noise Test Tool Kit Software License

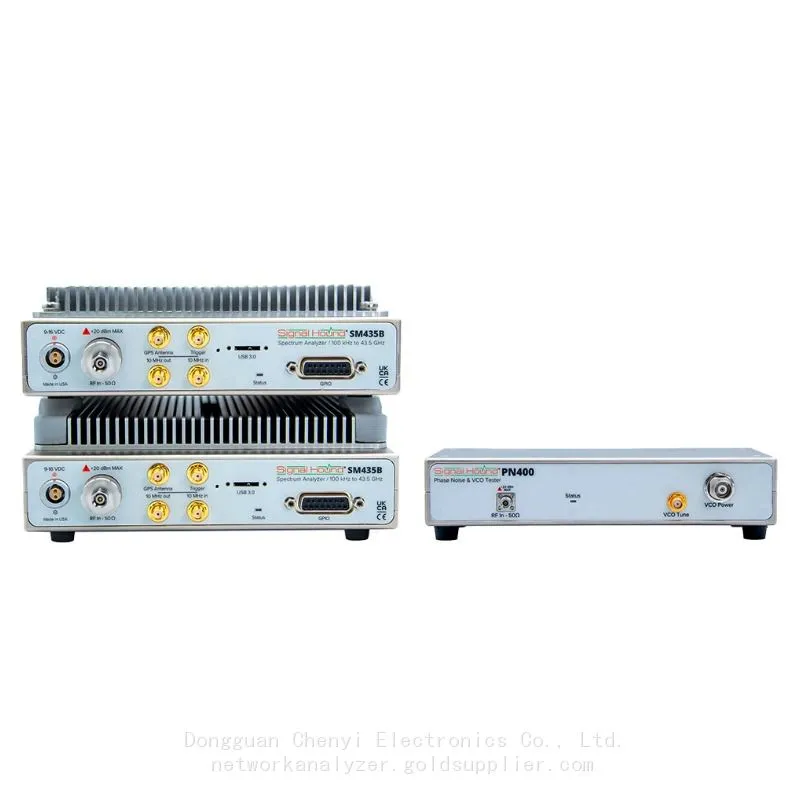

Two (2) SM-spectrum analyzers
*Mix and match SM200 or SM435
*SM spectrum analyzers not required if you already own

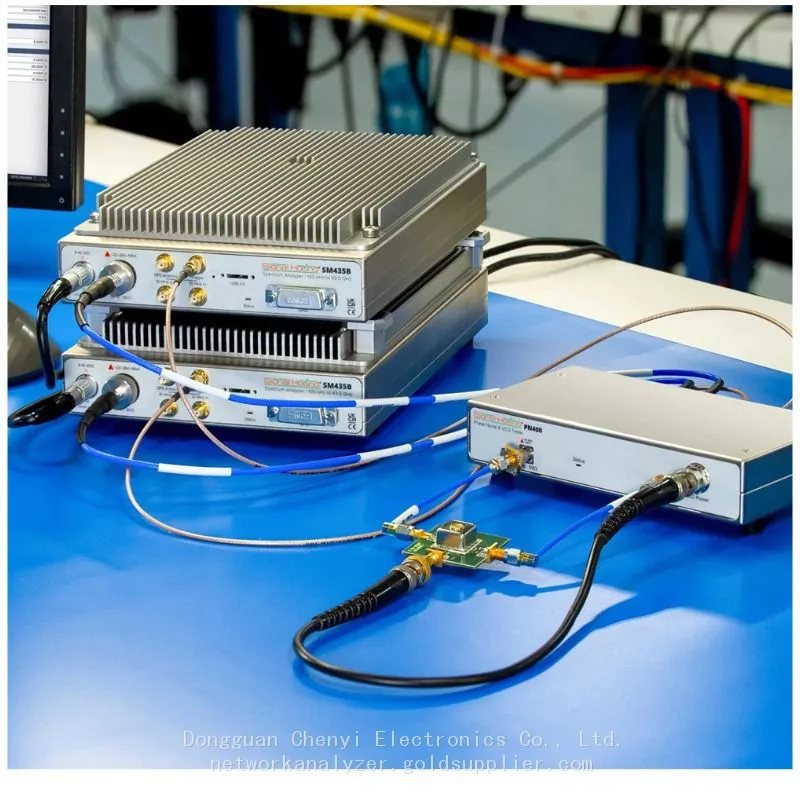

Set up your PN400
Unlock high-performance phase noise measurements with Signal Hound's groundbreaking PN400. In this in-depth exploration, discover how to setup and pair the PN400 with two SM series devices and our Spike software to deliver comprehensive signal analysis and unparalleled phase noise measurement accuracy.
Ordering Options
Software：1 year Software License
Standard：VCO Tester (2.4mm RF ports)
Option-17：VCO Tester (2.92mm RF ports)
Operating Temperature：Standard -40'F to 185°F(-40'C to +85°C)
Size and Weight：7.21"x3.74"x1.78"(183mmx95mm x45mm).1.20 lbs.(0.55 kg)
External Power Supply：30 V, 10 Watts (max)
Interface：USB 2.0
System Requirements：Windows or Linux Operating System, x64_86 architecture
What comes in the box？
PN400 40 GHz Phase Noise & VCO Tester
Download card for Spike™ spectrum analysis software, Signal Hound API, and manuals
USB 2.0 A(m) to B(m) cable
AC/DC Adapter, 30V, 30W w/Lemo
