Signal Hound TG44A 10 Hz to 4.4 GHz tracking generator
Signal Hound TG44A 10 Hz to 4.4 GHz t tracking generator
The Signal Hound TG44A is a 10 Hz to 4.4 GHz tracking generator which works with your SA44B to measure filters, attenuators, amplifiers and more!
Product Details
Combine this tracking generator with a USB-SA44B spectrum analyzer to create a Scalar Network Analyzer and save!
The Signal Hound TG44A is a 10 Hz to 4.4 GHz tracking generator which works with your SA44B to measure filters, attenuators, amplifiers and more! It is compact, simple to use, and an effective troubleshooting tool for general lab use, engineering students, ham radio enthusiasts, and electronics hobbyists.
Features
•RF Frequency Range: 10 Hz to 4.4 GHz
•Amplitude range: -30 dBm to -10 dBm
•Step sizes from 10 Hz to 10 MHz
•Sweep up to 700 frequency points per second with the SA44B
•No external power supply needed – draws power from USB
•Software and Hardware included for one low price
•Write your own software with our
•free Application Programming Interface (API)
•Compatible with Windows operating systems
•Measures 8 inches long
•Weighs 10 ounces

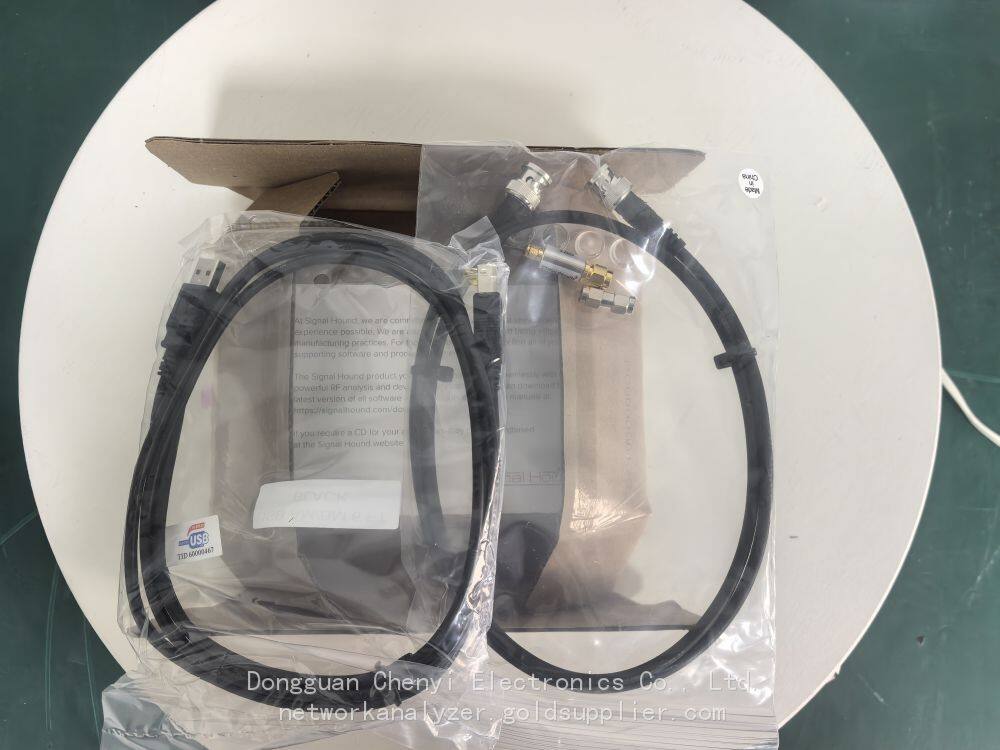

•Includes 20 dB attenuator, p/n Mini-Circuits VAT-20+
Size & Weight
Device dimensions
Version：
Weight： .6 lbs (.27 kg)
Dimensions：7.65" x 3.18" x 1.18" (19.4 x 8 x 3 cm)
Product-in-packaging dimensions
Version：
Weight： 1.46 lb (.66 kg)
Dimensions：9.25" x 5.44" x 3.13" (23.5 x 13.8 x 7.95 cm)
