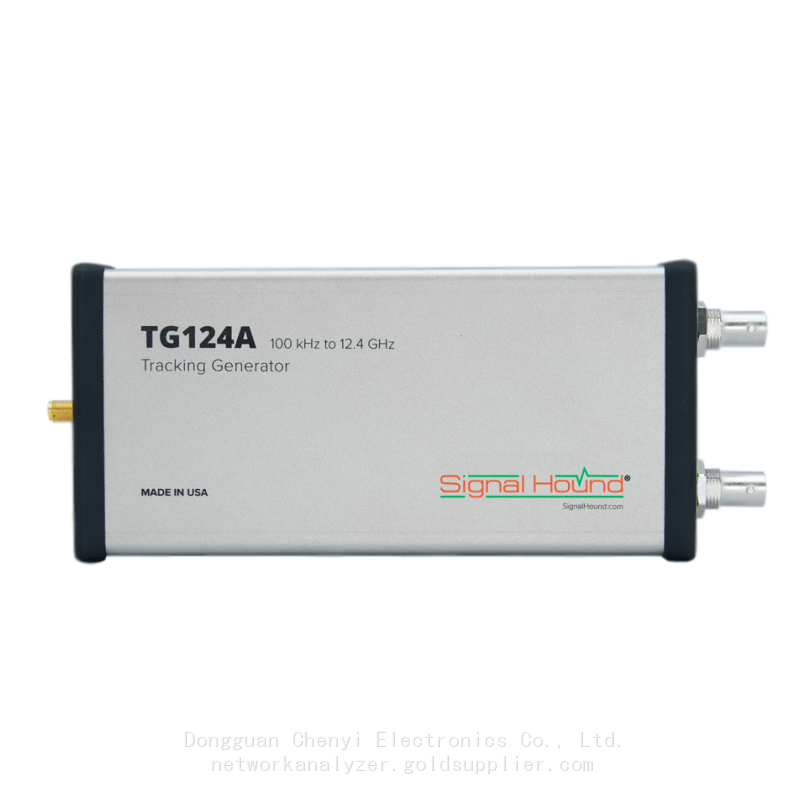

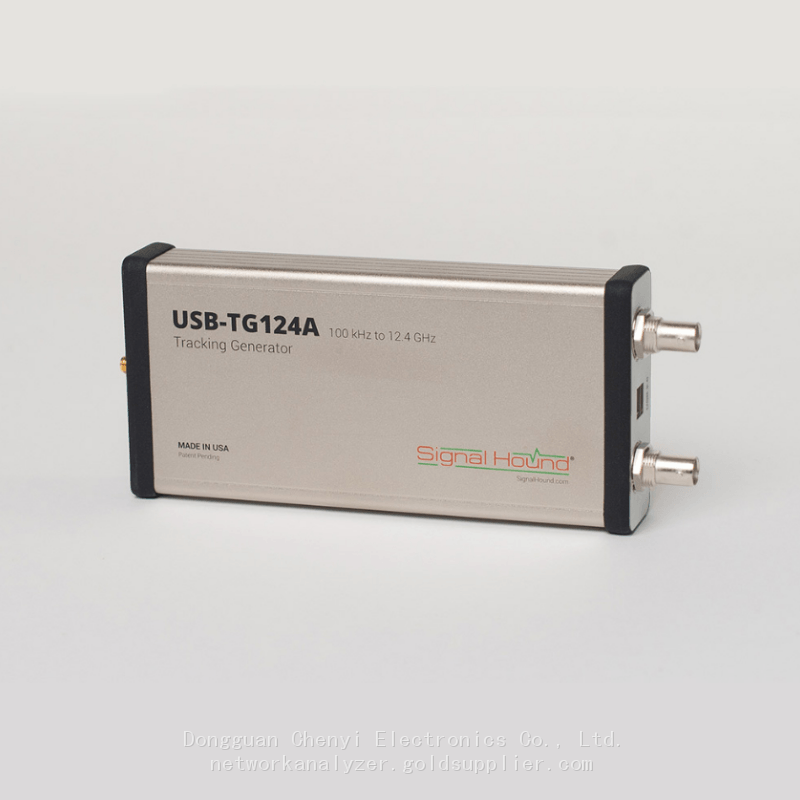

Signal Hound TG124A 100 kHz to 12.4 GHz tracking generator
Signal Hound TG124A 100 kHz to 12.4 GHz tracking generator
The Signal Hound TG124A is a 100 kHz to 12.4 GHz tracking generator which works with your SA124A to measure filters, attenuators, amplifiers and more!
Product Details
Upgrade your SA124B to a Scalar Network Analyzer with the TG124A!

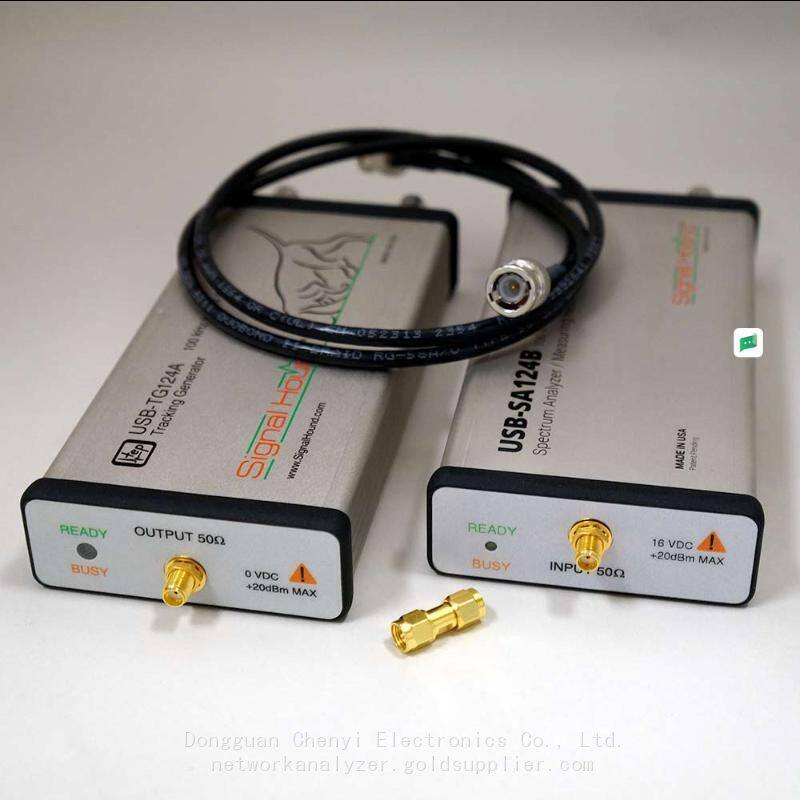

The Signal Hound TG124A is a 100 kHz to 12.4 GHz tracking generator which works with your SA124A to measure filters, attenuators, amplifiers and more! It is compact, simple to use, and an effective troubleshooting and analysis tool in the lab or in the field. Whether you are an amateur radio enthusiast or a microwave communications professional, the TG124A provides fast, accurate results.
Features
•RF Frequency Range: 100 kHz to 12.4 GHz
•Amplitude range: -30 dBm to -12 dBm
•Up to 19 selectable frequency step sizes in a 1-2-5 sequence
Below 4 GHz: 10 Hz to 10 MHz steps
Above 4 GHz: 100 Hz to 10 MHz steps
•Sweep up to 700 frequency points per second with the SA124A

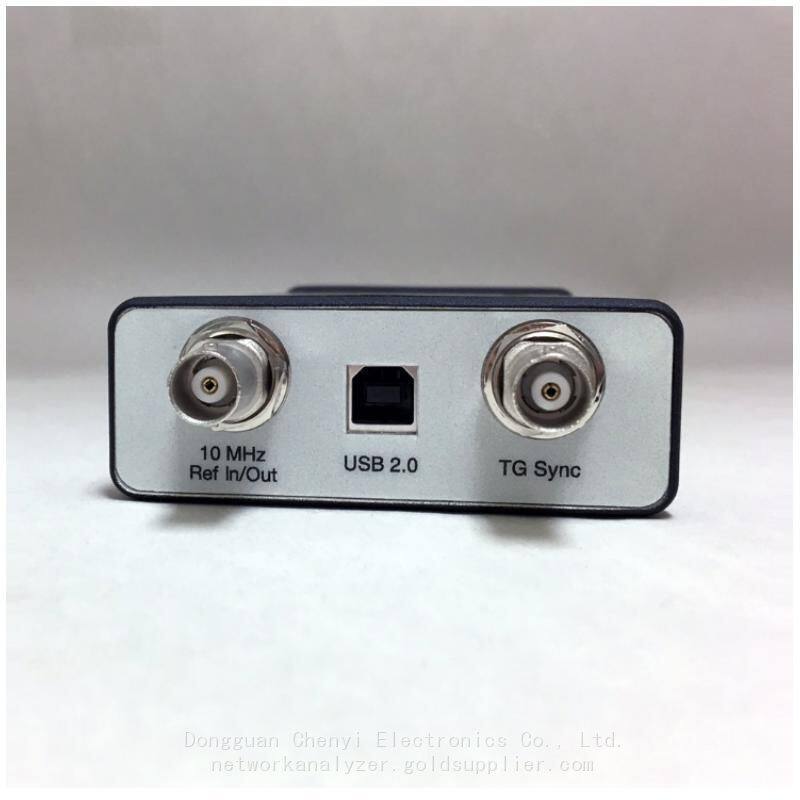

•No external power supply needed – draws power from USB
•Software and Hardware included for one low price
•Write your own software with our
free Application Programming Interface (API)
•Compatible with the Windows operating systems
•Measures 8 inches long
•Weighs 10 ounces
•Includes 20 dB attenuator, p/n Mini-Circuits FW-20+
Size & Weight
Device dimensions
Version：
Weight： .68 lbs (.3 kg)
Dimensions：7.67" x 3.18" x 1.18" (19.5 x 8 x 3 cm)
Product-in-packaging dimensions
Version：
Weight： 1.54 lb (.7 kg)
Dimensions：9.25" x 5.44" x 3.13" (23.5 x 13.8 x 7.95 cm)
