The radical new approach for ultimate smartphone production lines

Key facts

Continuous frequency range up to 6 GHz and RF bandwidth up to 160 MHz

Parallel testing on up to eight bidirectional RF ports

Wide range of methods to reduce test time and maximize capacity utilization

High measurement performance – high measurement accuracy

Fanless for silent operation – highest reliability due to dustproof housing

Non-signaling production solution for wireless device testing

The leading multi-DUT and multitechnology RF tester

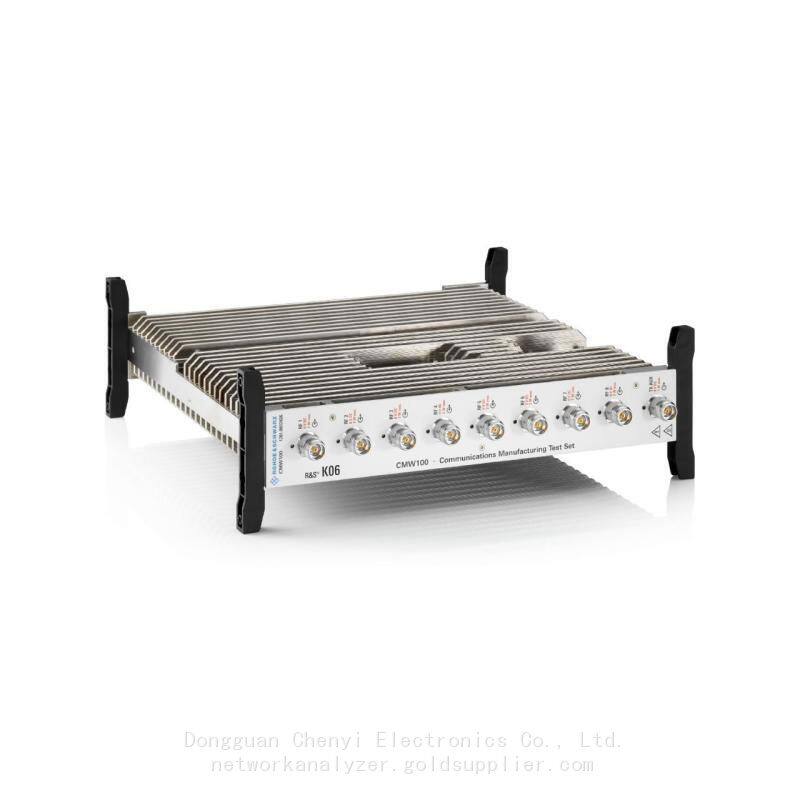

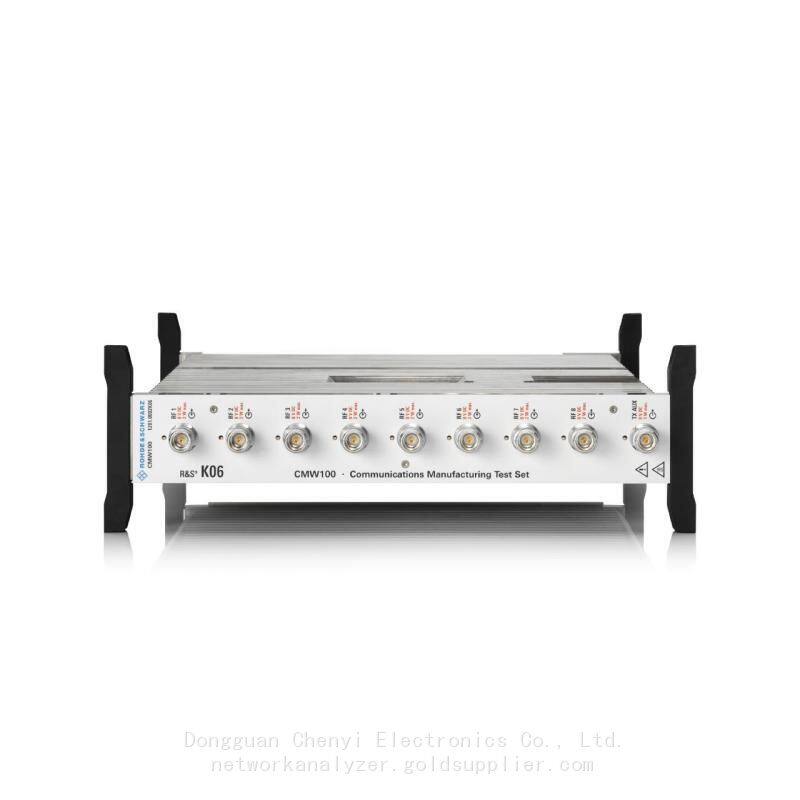

The CMW100 communications manufacturing test set is based on the CMW platform. The flexible RF interface permits simultaneous testing of up to eight devices. The CMW100 remote control and measurement concepts are compatible with the CMW500. The CMW100 is optimized for cost-effective calibration and verification of wireless devices in non-signaling mode (analyzer/generator). The tester provides a new eco-friendly hardware concept, featuring extremely low energy consumption and a very compact size, making it ideal for use in fully automated robotic production lines. It supports LTE, 5G NR, WLAN, Bluetooth® and IoT technologies, making it ready for today and tomorrow.

Features & benefits

Unprecedented flexibility

Unprecedented flexibility when designing production lines

The CMW100 offers unprecedented flexibility when designing production lines and is ideal for use onfully automated robotic production lines.

I It can be mounted either vertically or horizontally

Close connection to test fixture, means less attenuation loss and cross talkingMinimum space requirements, footprint and energy consumption

Fanless for silent operation

Dust protection -highest reliability from dustproof housing

Multi-device testing

Scalability and flexibility

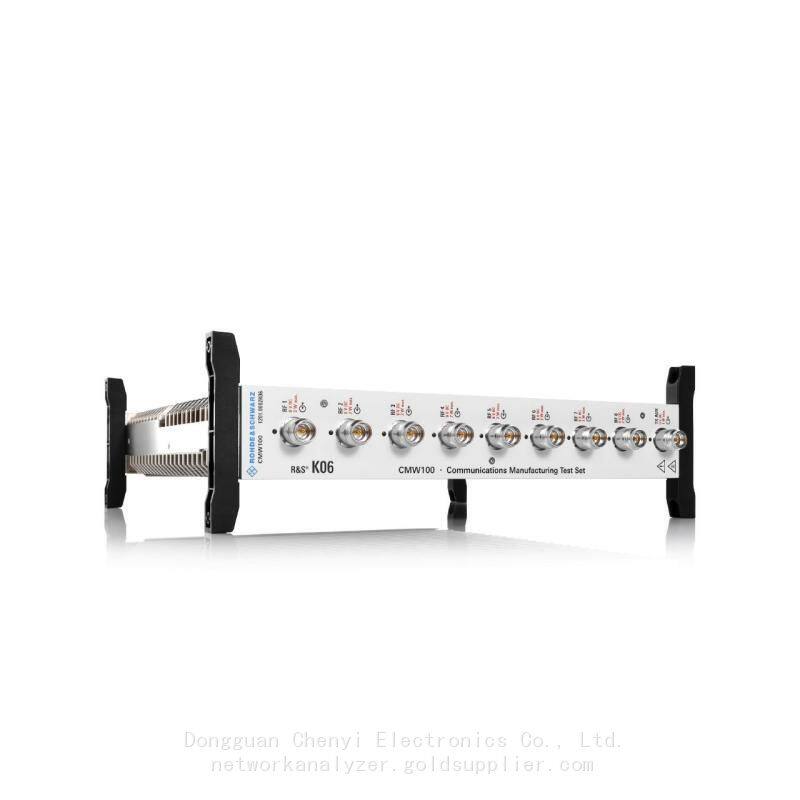

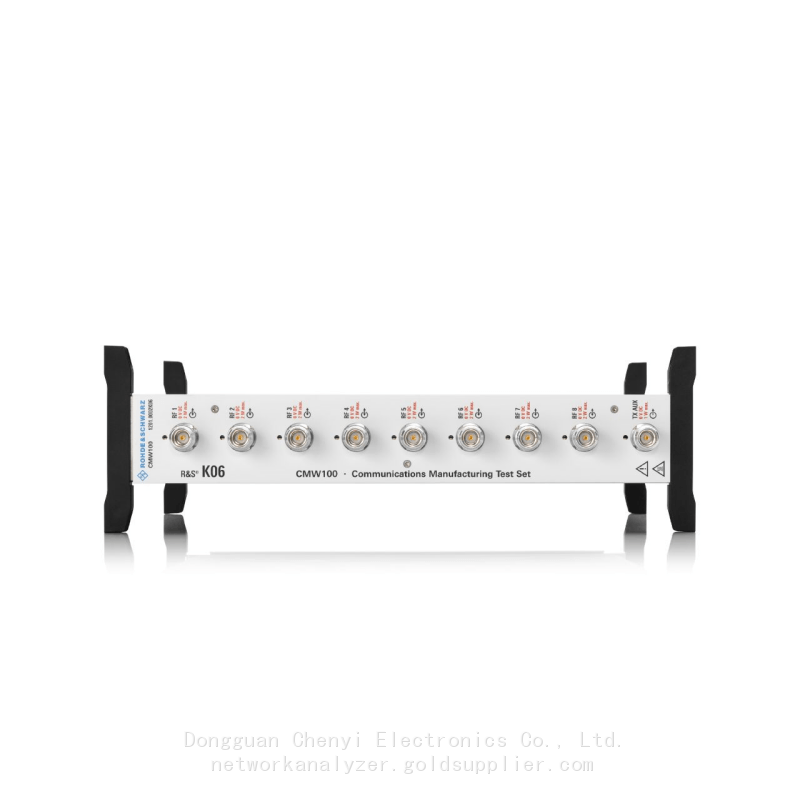

▶The CMW100 can test up to eight RF ports in parallel. The frontend has eight bidirectional andfullduplex ports.

▶The CMW100 offers parallel testing to optimize test times and capacity utilization.

▶Several CW100 can be connected to a control PC so that you can use more RF ports at yourproduction test station

▶In smart channel mode, the CMW100 is split into several sub-instruments, enabling easy multi device testing.

Multitechnology testing

Ready today for the requirements of tomorrow

The CiW100 can perform receiver and transmitter tests for cellular and non-cellular technologies on allwireless devices.The open architecture of the CMW100 enables quick integration of the latest wireless communicationstechnologies,ensuring the best test performance - today and tomorrow.

Small cell testing

Many operators use additional small cells to more efficiently manage their freguency spectrum. Smalcells are low-powered radio access nodes that operate with a shorter range within the licensed andunlicensed spectrum. The CMW100 can be used to calibrate and verify transceivers in small cellproduction lines. Using one production line for both mobile devices and small cells provides enormousflexibility.

Confidence

Global market leader

Smartphones and tablets support an increasing number of technologles and freguency bands, meaningmore transmitters, receivers and antenna paths have to be tested. The CMW100 is a standardproduction solution that meets all these requirements. lt is the global market leader for wireless deviceproduction tests and is used by nearly every top manufacturer.
