The top-class in component testing

LCR meter LCX100 ：DC 4 Hz to 300 kHz

LCR meter LCX200 ：DC 4 Hz to  500 kHz （Upgradable 10M）

Key facts

▶Frequency range upgradeable to 10 MHz

▶Basic accuracy of ±0.05 % for impedance measurements

▶Basic accuracy of ±0.03° for phase measurements

▶DC bias up to 40 V

▶Data logging function

The top-class in component testing

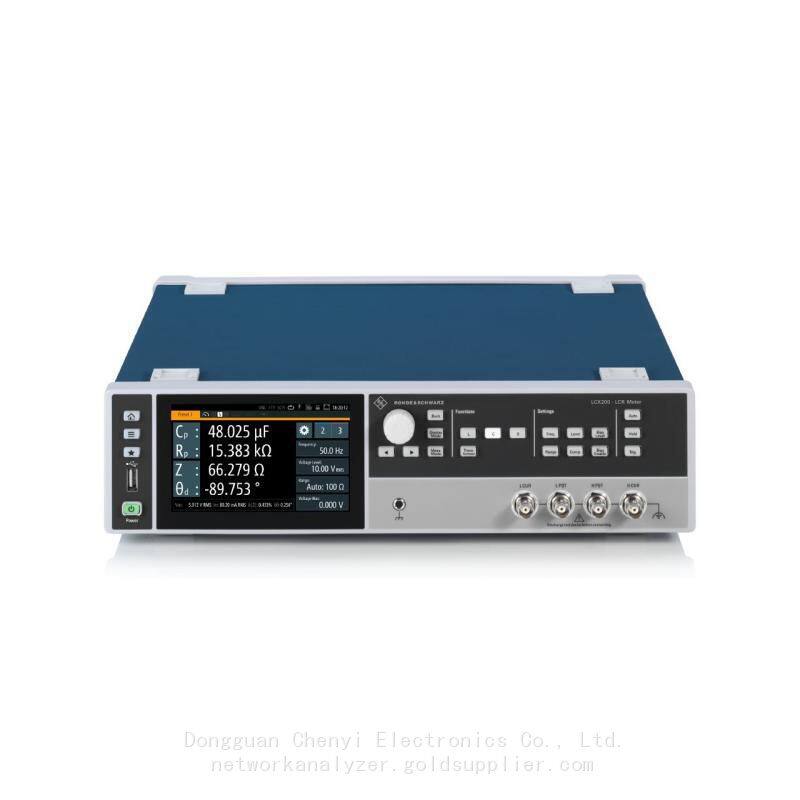

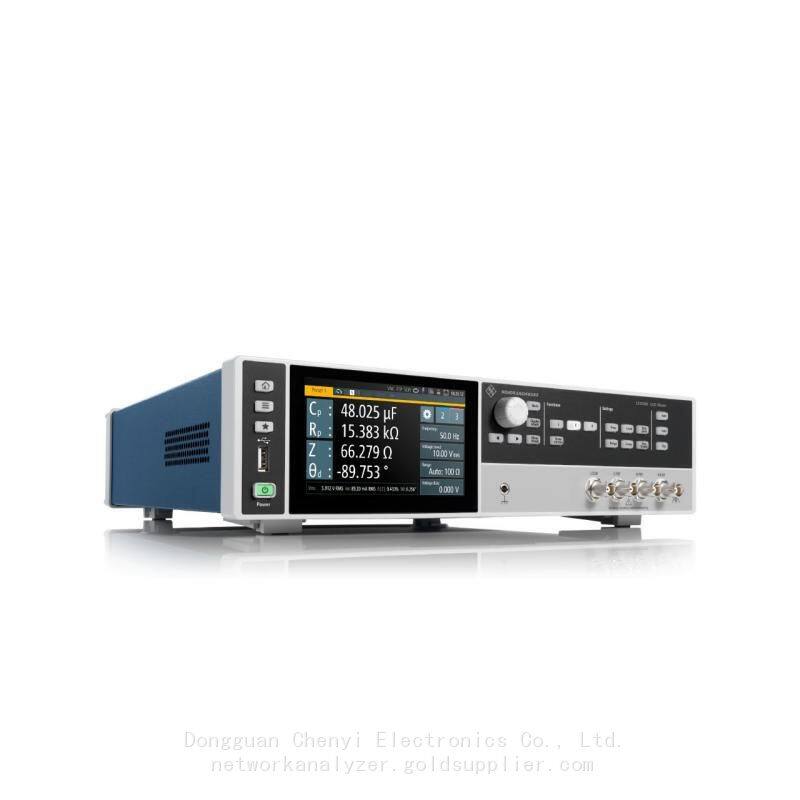

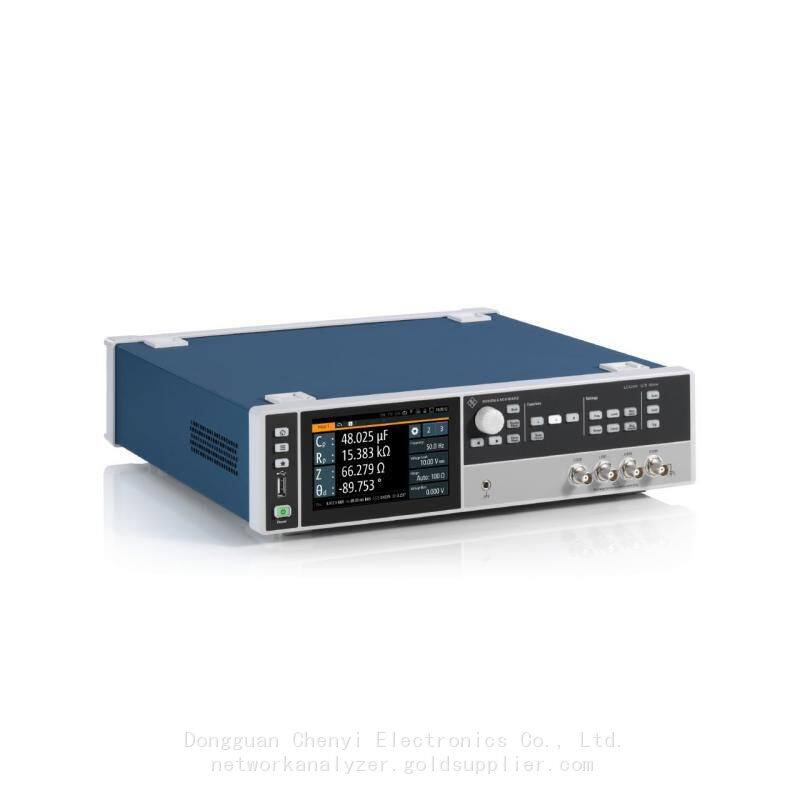

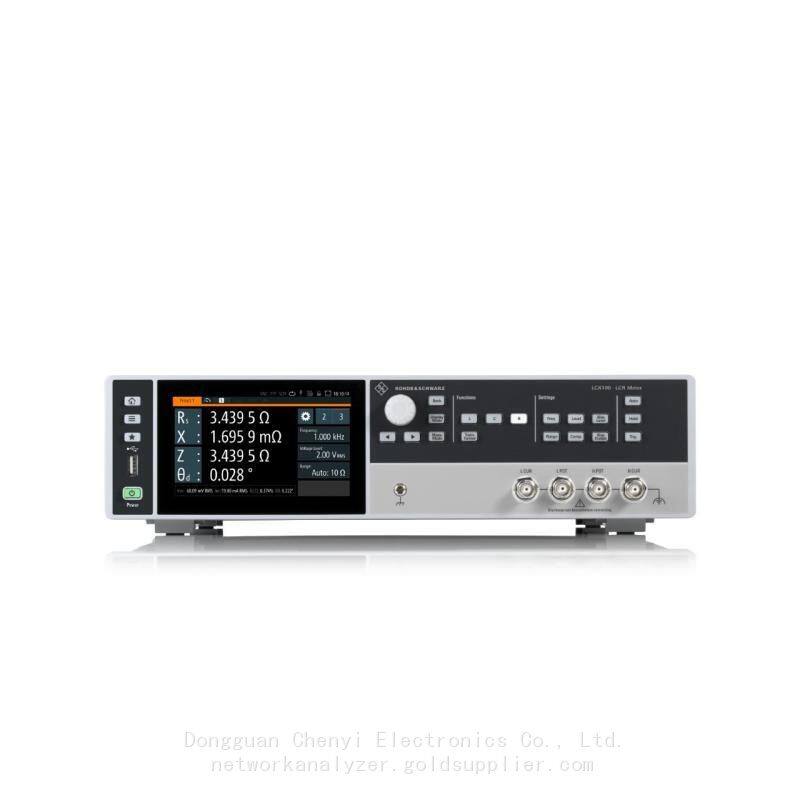

The R&S®LCX LCR meters are versatile, extremely accurate and perform measurements quickly. They are ideal for challenging applications in research, development and production. Two instrument models and various options cover applications with a test signal frequency of up to 10 MHz. Internal and external bias functions, comprehensive analysis options and versatile test fixtures expand the wide range of possible applications.

Features & benefits

Fast,accurate and versatile

Both R&S@LCX models combine high measurement speed, accuracy and versatile measurementcapabilities. This makes them ideal for standard measurements in development, for material analysis inresearch as well as for fast production testing. With their broad measurement ranges, they also coverapplications with extremely low and extremely high impedances. Three measurement times areavailable:

▶Fast:s 15 ms

▶Medium:≤ 100 ms

▶Slow:≤ 500 ms

The basic accuracy for impedance measurements is +0.05 %, and for phase measurements +0.03°

Selectable frequency range

All R&SeLCX models measure under DC conditions. The AC range already begins at 4 Hz. The upperfrequency limit on the R&SeLCX100 is 300 kHz. In its base configuration, the R&SeLCX200 is designedfor a maximum freguency of 500 kHz, this frequency limit can, however, be extended to 1 MHz or 10MHz. This means that the ideal instrument is available for any given application and budget.

Test signals for al requirements

Test signals can be generated from 100 mV to 10 V and deliver a current of up to 200 mA. Theinstruments have a selectable output impedance of 100 (2 or 10 Q. The actual current flow and thevoltage applied are measured using the monitor function.

DC bias

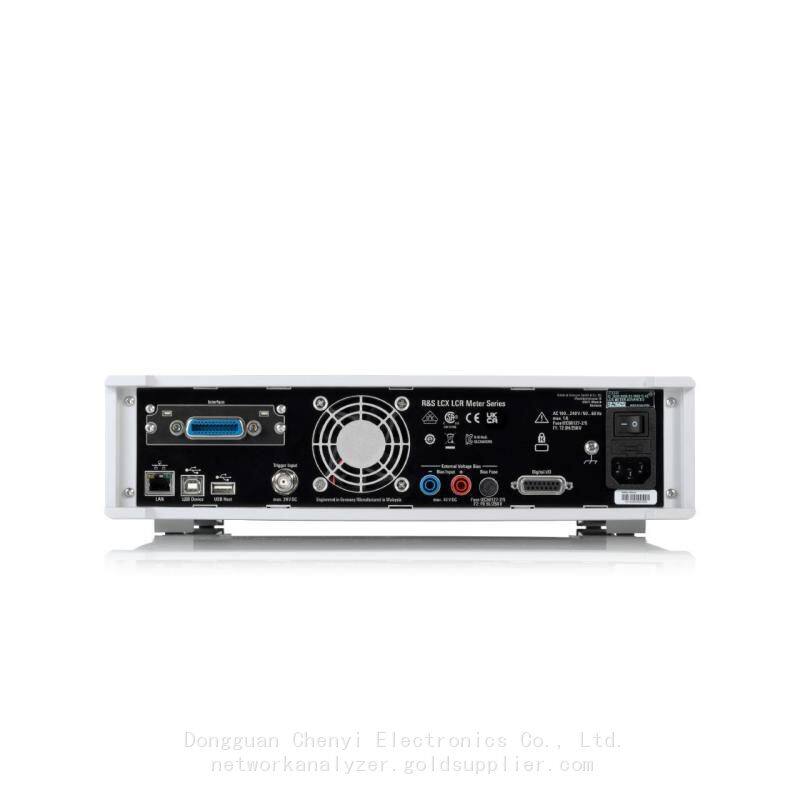

In many applications, an adiustable DC bias is needed to measure C and L components at diferentoperating points. The R&SeLCX100 and R&SeLCX200 generate a DC bias voltage of up to 10 V. As anoption, it is also possible to set a DC bias current (up to 200 mA). DC bias voltages of up to 40 V can beapplied at an external connection on the rear panel (R&SeLCX-K108 option) using a standard DC powersupply, for example an R&S@NGA.

Data logging function

The R&SeLCX LCR meters provide a fast logging function for recording all measured values. The datacan be saved on an external USB flash drive or transferred to an external PC via USB or LAN. With adata rate of up to 10 sample/s, the measured values are available every 100 ms.

Available models

Models：R&S®LCX100    Order number 3629.8856.02

Measurement functions：Cp, Cs, Lp, Ls, D, Q, G, Rp, Rs, Rdc, R, X, Z, Y, Θd, Θr, B, M, N

Frequency range：DC, 4 Hz to 300 kHz

Test signal voltage (RMS)：10 mV to 10 V

ITest signal current：1 mA to 200 mA

Internal bias voltage：0 V - 10 V

Starting at：Price On Request

Models：R&S®LCX200    Order number 3629.8856.03

Measurement functions：Cp, Cs, Lp, Ls, D, Q, G, Rp, Rs, Rdc, R, X, Z, Y, Θd, Θr, B, M, N

Frequency range：DC, 4 Hz to 500 kHz (1 MHz or 10 MHz optional)

Test signal voltage (RMS)：≤ 1 MHz: 10 mV to 10 V,≤ 5 MHz: 50 mV to 2 V,> 5 MHz: 100 mV to 1 V

ITest signal current：≤ 1 MHz: 1 mA to 100 mA,> 1 MHz to ≤ 5 MHz: 1 mA to 20 mA,> 5 MHz: 1 mA to 10 mA

Internal bias voltage：0 V - 10 V

Starting at：Price On Request
