Keysight E5063A ENA Vector Network Analyzer E5063A-2D5 2-port test set, 100 kHz to 14 GHz

Keysight E5063A ENA Vector Network Analyzer E5063A-2D5 2-port test set, 100 kHz to 14 GHz

Test set

E5063A-285 2-port test set, 100 kHz to 8.5 GHz

E5063A-245 2-port test set, 100 kHz to 4.5 GHz

E5063A-2H5 2-port test set, 100 kHz to 18 GHz

E5063A-205 2-port test set, 100 kHz to 500 MHz

E5063A-215 2-port test set, 100 kHz to 1.5 GHz

E5063A-235 2-port test set, 100 kHz to 3 GHz

E5063A-265 2-port test set, 100 kHz to 6.5 GHz

E5063A-2D5 2-port test set, 100 kHz to 14 GHz

Highlights

Drive Down the Cost of Test for Passive RF Components

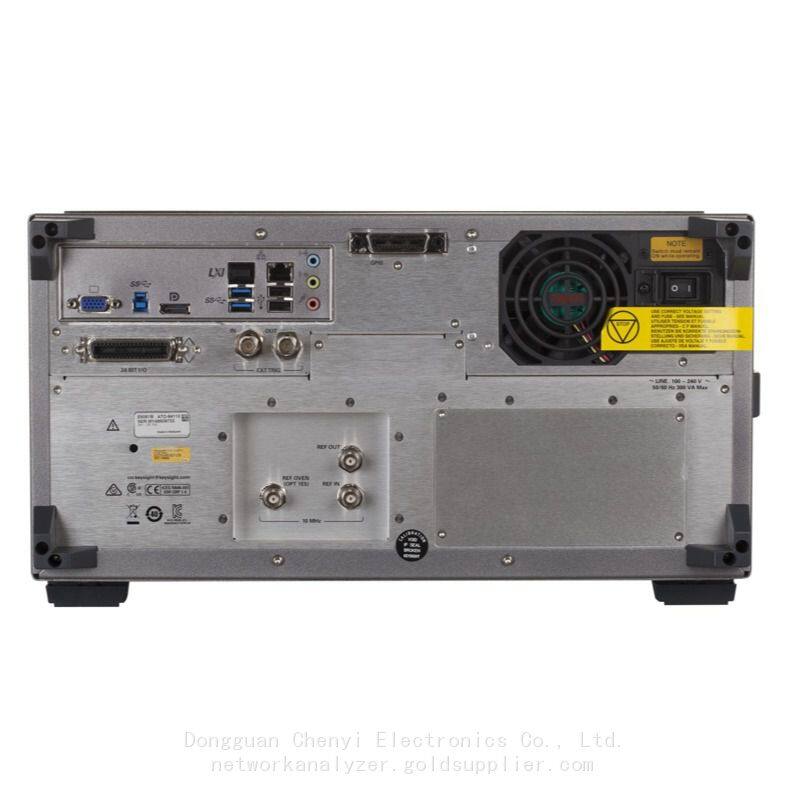

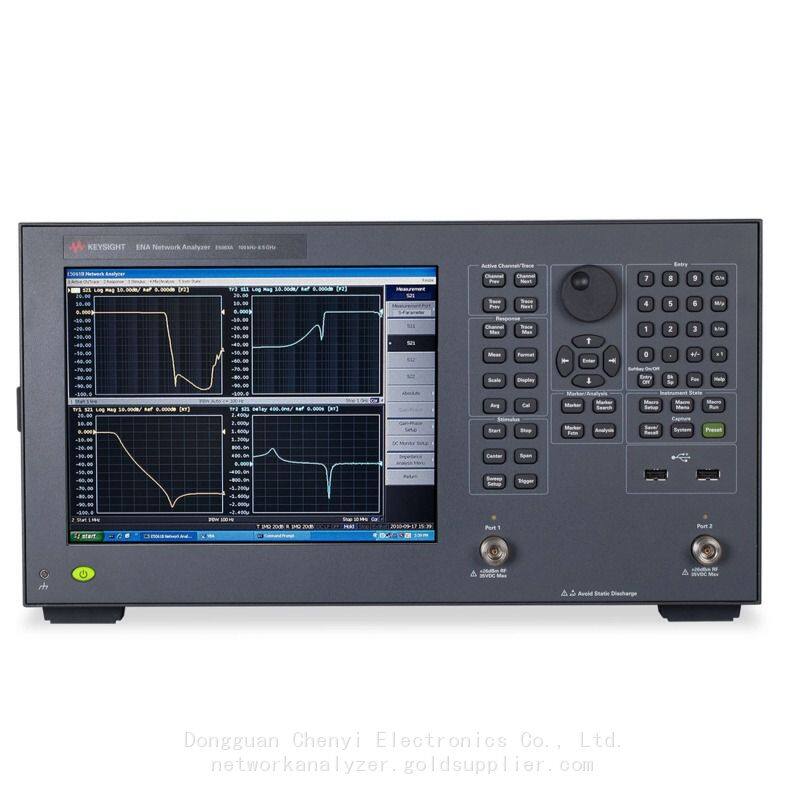

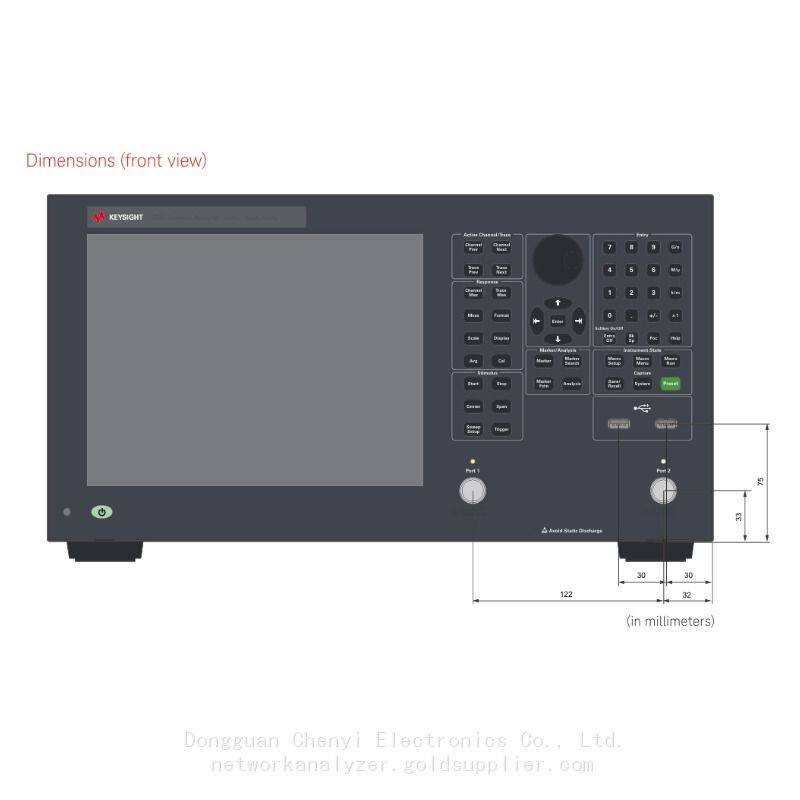

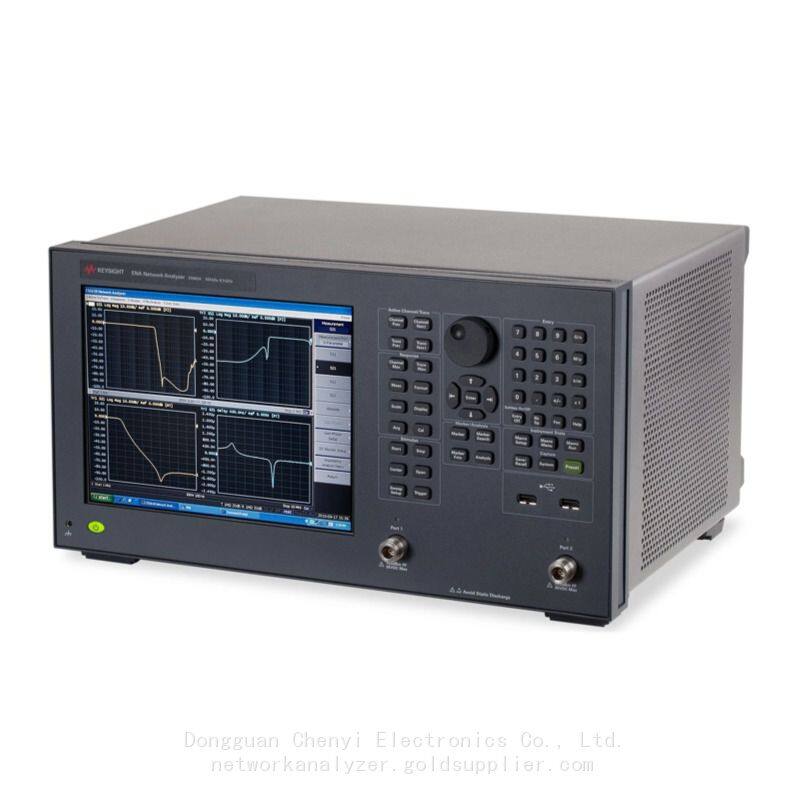

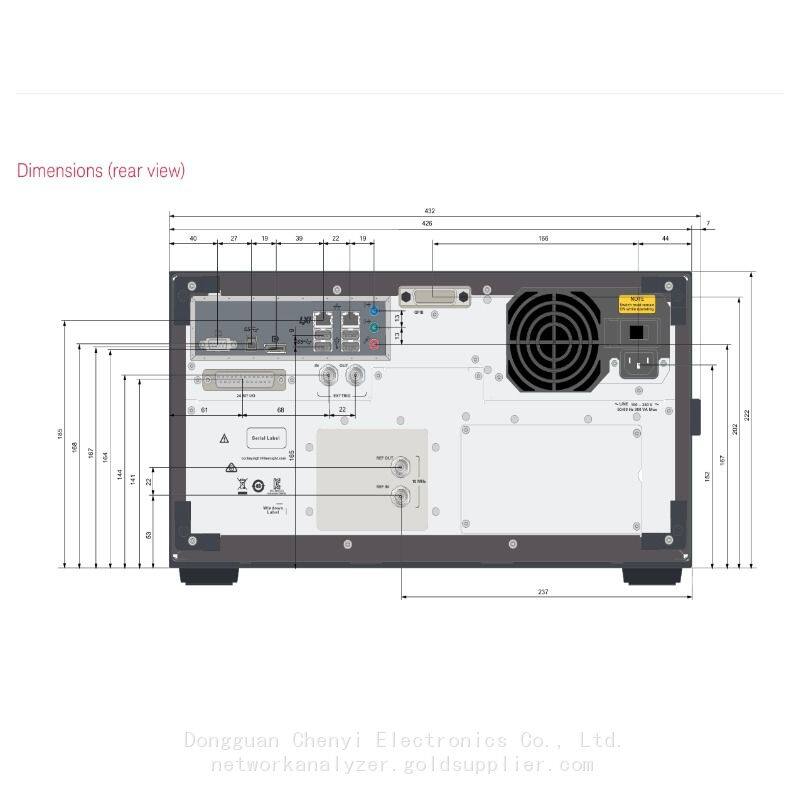

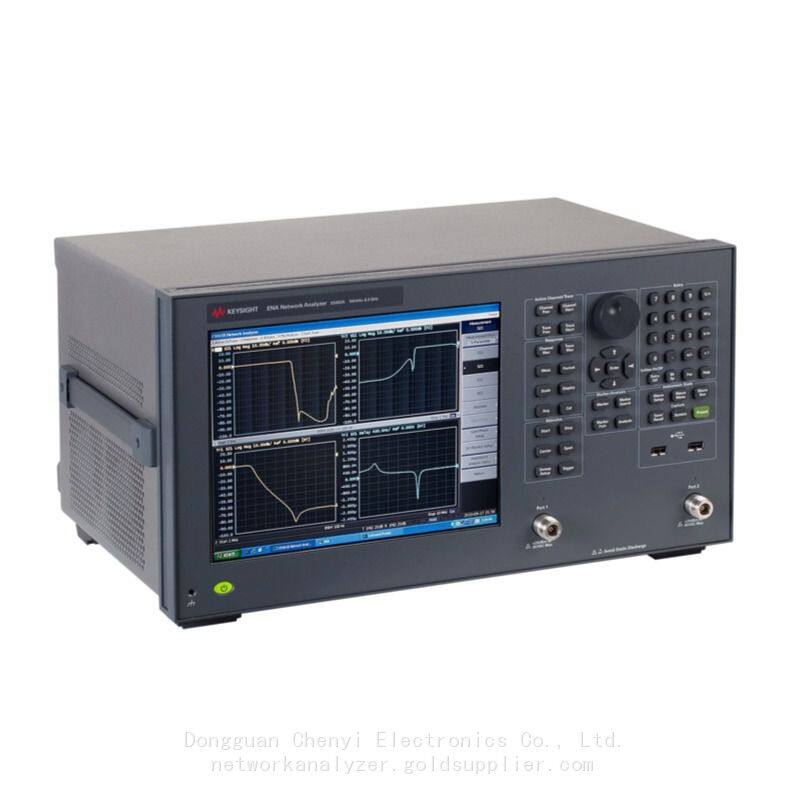

The Keysight E5063A ENA is an affordable benchtop vector network analyzer for testing simple passive components such as antennas, filters, cables, or connectors up to 18 GHz. It leverages the consistent measurement framework of the industry standard ENA Series to boost efficiency and productivity. It is ready to evolve as technologies change.

▶Measure a wide range of components with a versatile 2-port, 50-ohm S-parameter test set

▶Enhance your measurements with Option 010 for time domain analysis capability

▶Simplify PCB design and test with a dedicated graphical user interface with Option 011

▶Boost efficiency and productivity with a consistent measurement framework

▶Upgrade options at any time

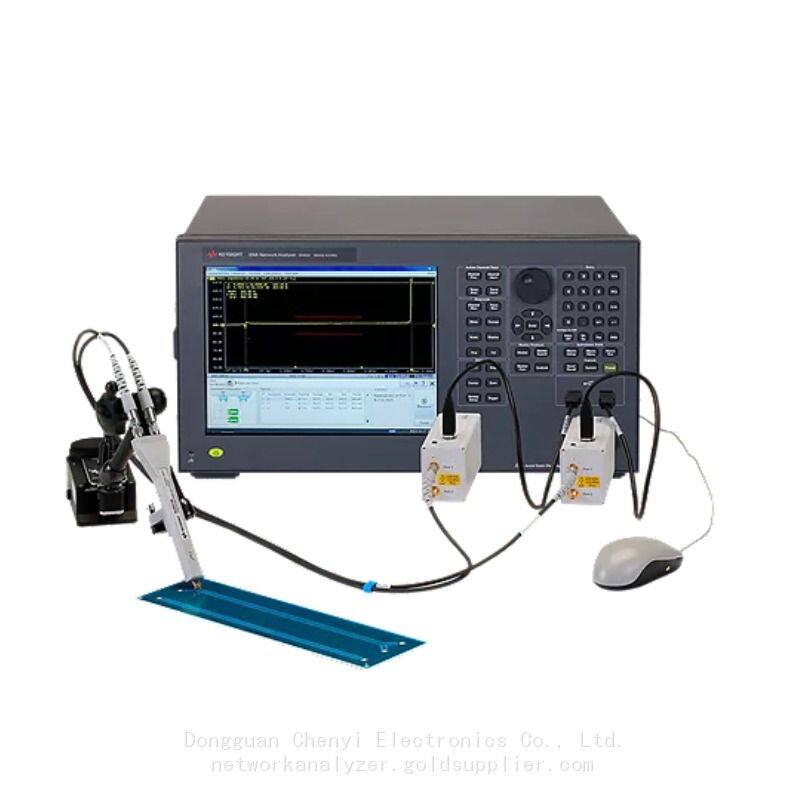

The best solution for PCB design and test

Compared to traditional solutions based on sampling oscilloscopes, the E5063A PCB Analyzer provides three breakthroughs for PCB design and test:

▶More accuracy, repeatability, and reproducibility

▶More languages supported

▶More ESD robustness

Achieving Higher Measurement Accuracy and Better Correlation for PCB Impedance Test

E5063A Software

Network analyzer software tools enable you to investigate, characterize, and troubleshoot your designs in a variety of measurement applications. Simplify complex measurements on your E5063A with software applications such as wireless power transfer analysis, time domain analysis, and more.

E5063A-010 Time Domain Analysis

View transmission and reflection responses in the time domain. Tune filters, gate out fixtures and cables, and characterize transmission lines.

E5063A-011 Time Domain Analysis/Test Wizard

Adds a dedicated interface for PCB manufacturing test for efficient impedance and return loss measurements.

E5063A-006 Wireless Power Transfer Analysis

Measure Wireless Power Transfer (WPT) efficiency between coils or resonators in real-time with arbitrary load impedance setting.

E5063A Network Analyzer Software

Network analyzer software tools enable you to investigate, characterize, and troubleshoot your designs in a variety of measurement applications. Simplify complex measurements on your E5063A with software applications such as wireless power transfer analysis, frequency offset mode, time domain analysis, and more.

Data Sheets

Definitions

Specification (spec.):

Warranted performance. All specifications apply at 23 ºC (± 5 ºC), unless otherwise stated, and 90 minutes after the instrument has been turned on. Specifications include guard bands to account for the expected statistical performance distribution, measure­ment uncertainties, and changes in performance due to environmental conditions.

Typical (typ.):

Expected performance of an average unit which does not include guardbands. It is not covered by the product warranty.

General characteristics:

A general, descriptive term that does not imply a level of performance.

Boundary Conditions

In this data sheet, boundary conditions are given for the specifications. For example, system dynamic range is 68 dB with the following boundary condition.

Frequency: 300 kHz

IF bandwidth: 3 kHz

If the same boundary conditions fall under more than one category in a table, apply the best value.
