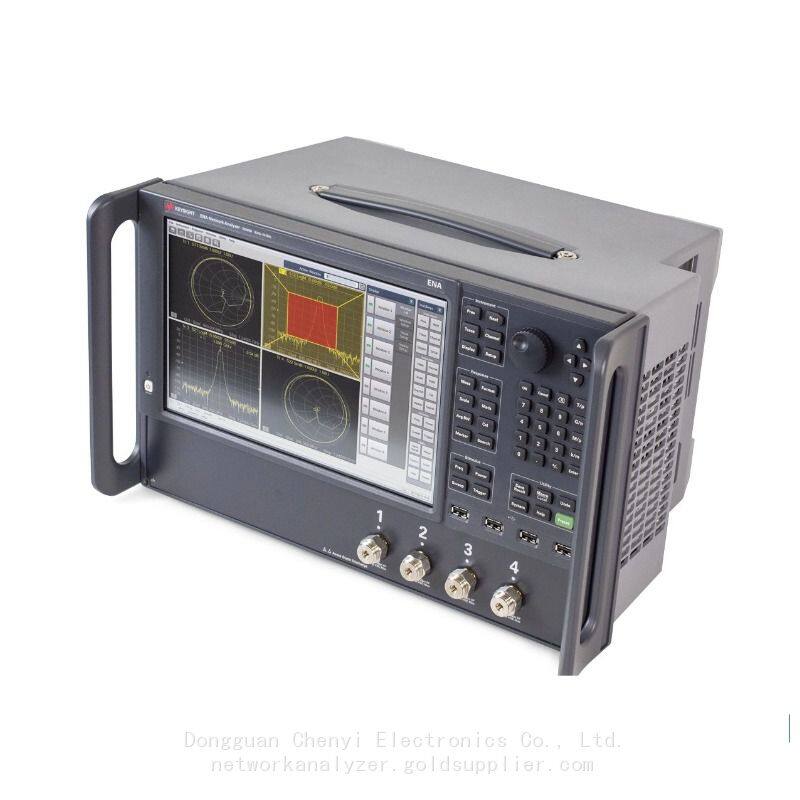

The most integrated and flexible ENA network analyzer

Introduction

As devices become highly integrated, complete characterization requires a complete RF and microwavemeasurement solution. The E5080B brings R&D performance up to 53 GHz and flexibility to a midrangeplatform with dynamic range, trace noise, and temperature stability guarantee reliability and repeatability.Test consistently across your entire workflow with the same UI and SCPI commands as high-end PNAs.The E5080B enables complete device characterization for passive components, amplifiers, mixers, andfrequency converters. You can perform more tests with one box with integrated features such as DCsources, bias tees, pulse generators, pulse modulators, and internal second source. Gain deeper insightswith software applications including spectrum analysis, mixer measurements, and noise figure. Choosefrom a 2- or 4-port option with frequency coverage from 9 kHz up to 20 GHz or for higher frequencies,100 kHz up to 53 GHz.The E5080B utilizes the same measurement science as other Keysight Vector Network Analyzers (VNAs)such as the PNA, PXI, and Streamline Series VNA. A common software platform makes it easy to choosethe right level of performance to match budget and measurement needs. This commonality guaranteesmeasurement consistency, repeatability, and a common remote-programming interface across multipleinstruments in R&D and manufacturing.

Highlights

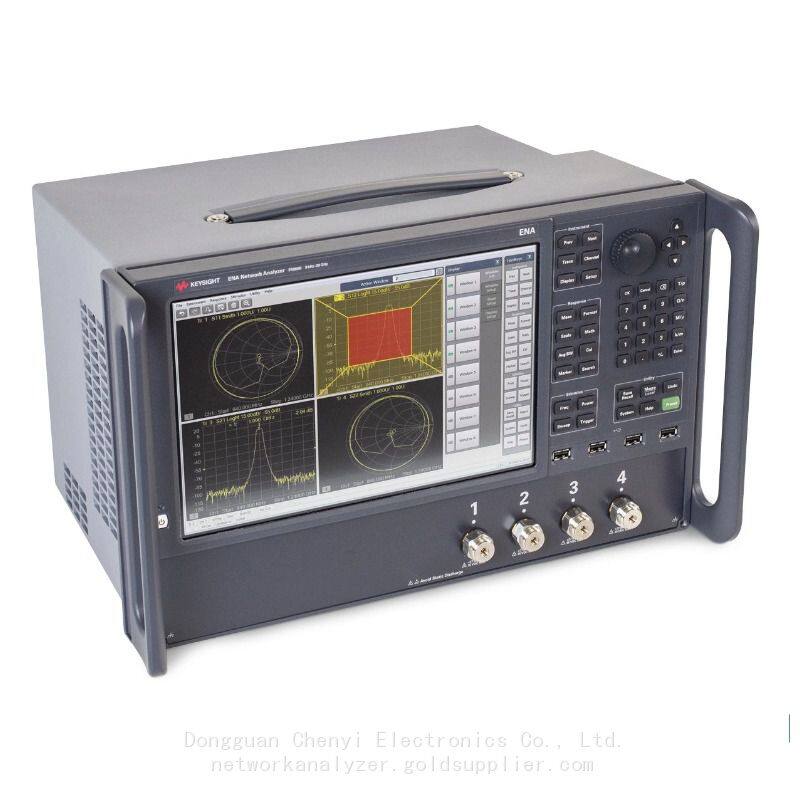

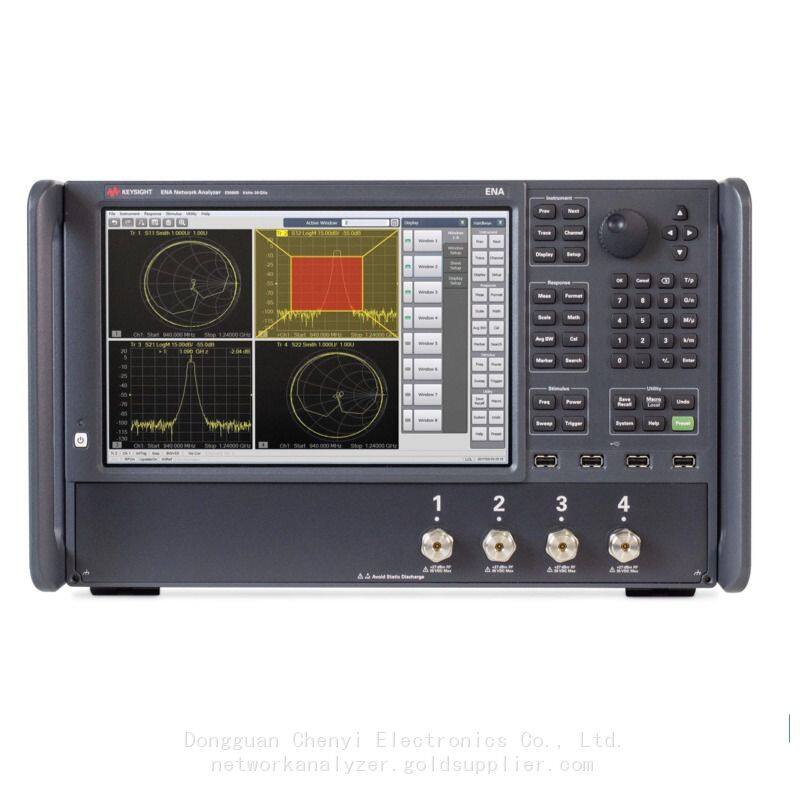

Industry's Most Flexible and Integrated ENA Vector Network Analyzer

Highly integrated devices require an RF and microwave measurement solution offering complete characterization. The Keysight E5080B vector network analyzer (VNA) provides R&D performance up to 53 GHz and advanced test flexibility. Dynamic range, trace noise, and temperature stability guarantee reliability and repeatability.

The E5080B VNA enables complete device characterization for passive components, amplifiers, mixers, and frequency converters. Integrated DC sources, bias tees, pulse generators, pulse modulators, and an internal second source enable more measurements on one instrument. Gain deeper insights with software applications including spectrum analysis, mixer measurements, and noise figure.

The E5080B utilizes the same measurement science as other Keysight vector network analyzers such as the PNA, PXI, and USB VNA. The common software platform makes it easy to balance measurement, performance, and budget needs. This commonality guarantees measurement consistency, repeatability, and a common remote programming interface across R&D and manufacturing instruments.

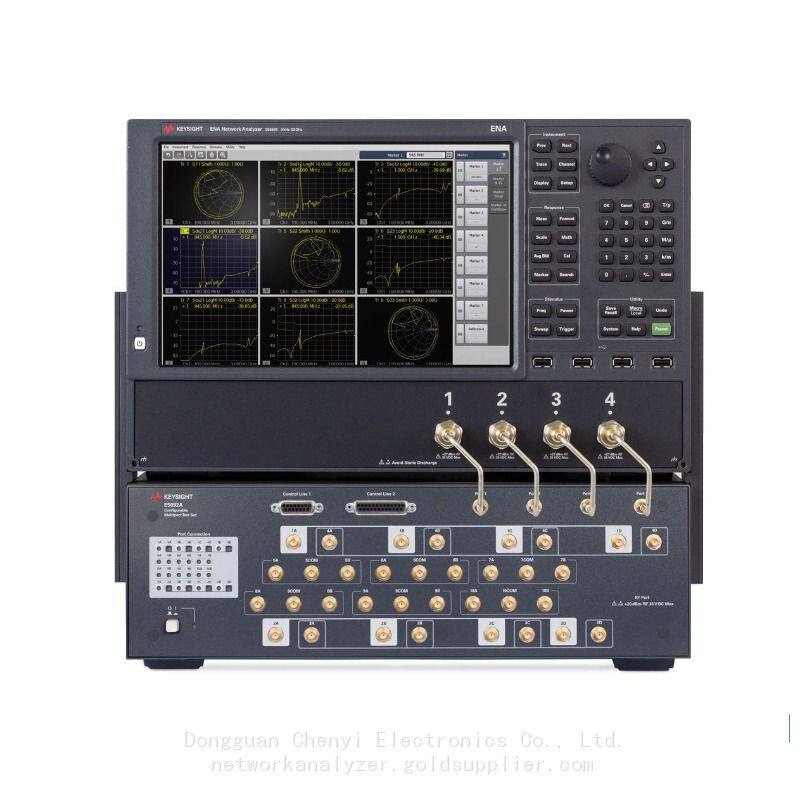

▶choose either a 2- or 4-port option

▶select a frequency range from 9 kHz to 4.5/6.5/9/14/20 GHz or 100 kHz to 26.5/32/44/53 GHz

▶achieve complete device characterization with optional built-in DC sources, bias tees, pulse generators

    and pulse modulators

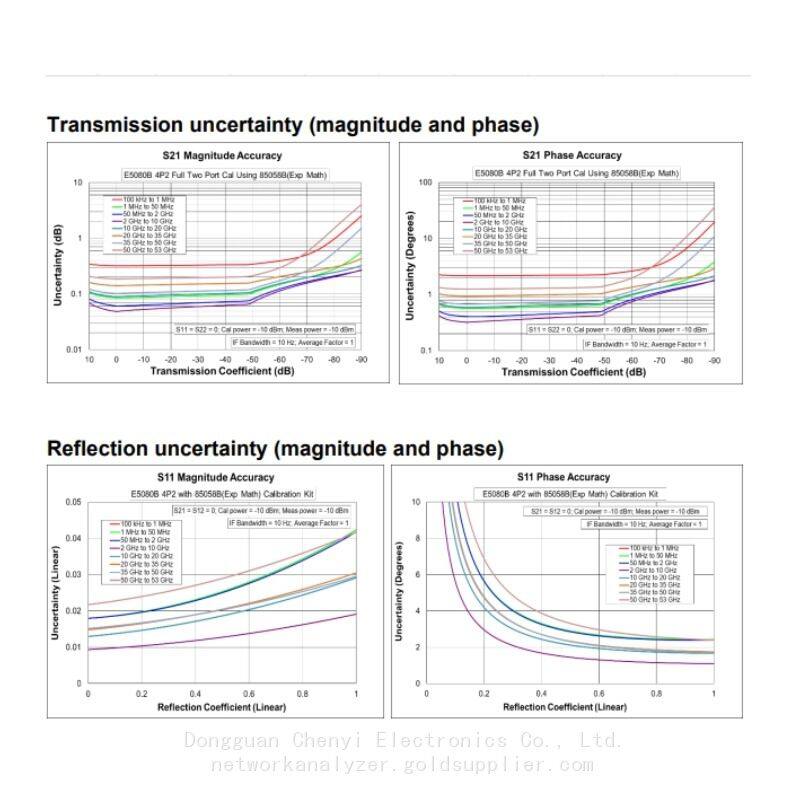

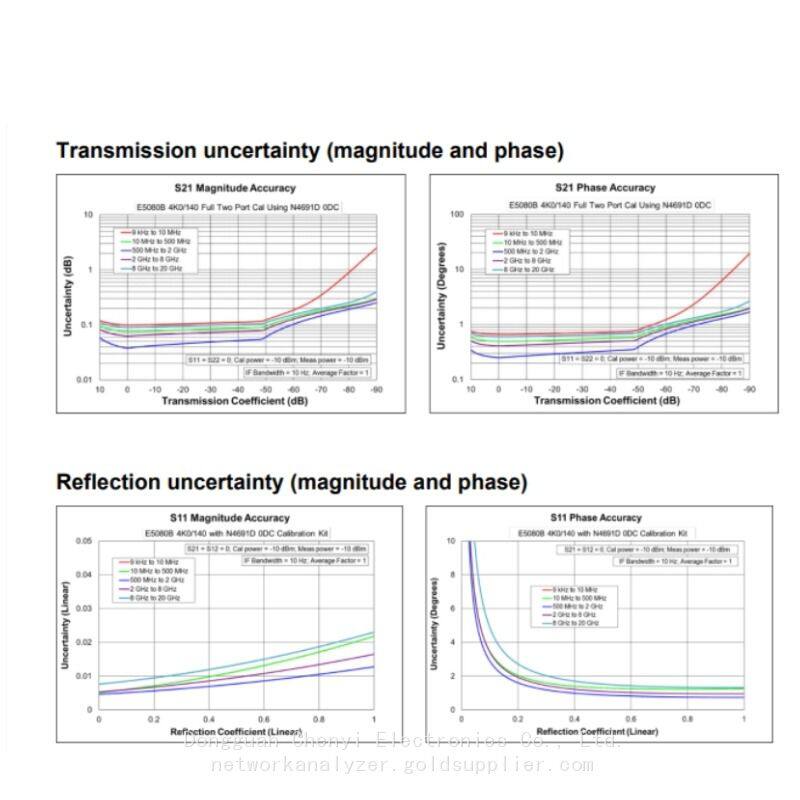

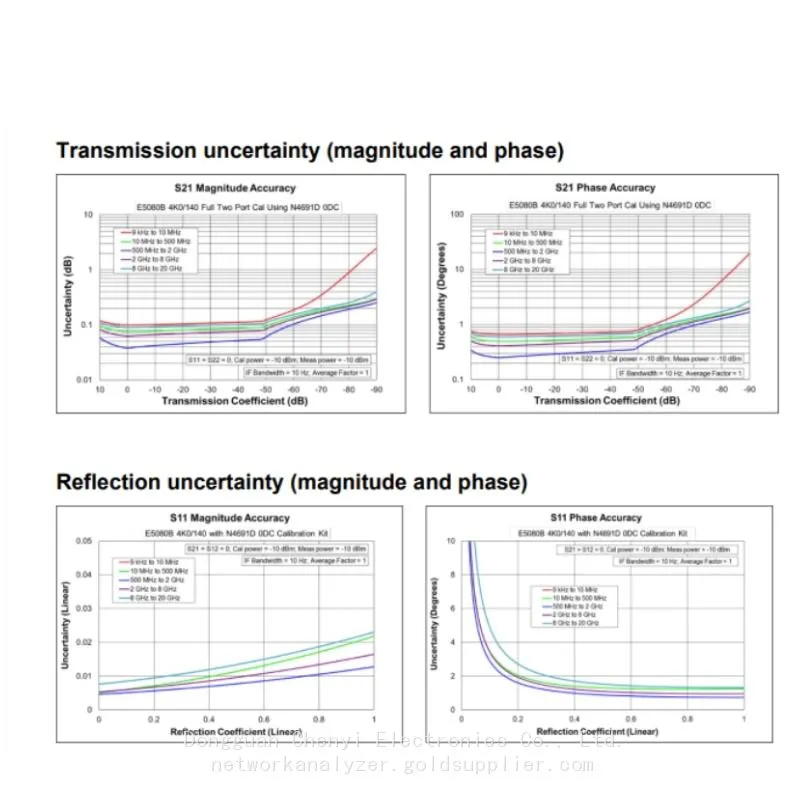

▶capture device performance with a wide dynamic range of 140 dB

▶test from R&D through production with confidence using the same UI and SCPI commands as high-end

    PNA network analyzers

▶improve throughput using spectrum analysis, pulsed-RF measurements, vector mixer measurements, noise

    figure, and more software applications on a single instrument

Integrated Functionality

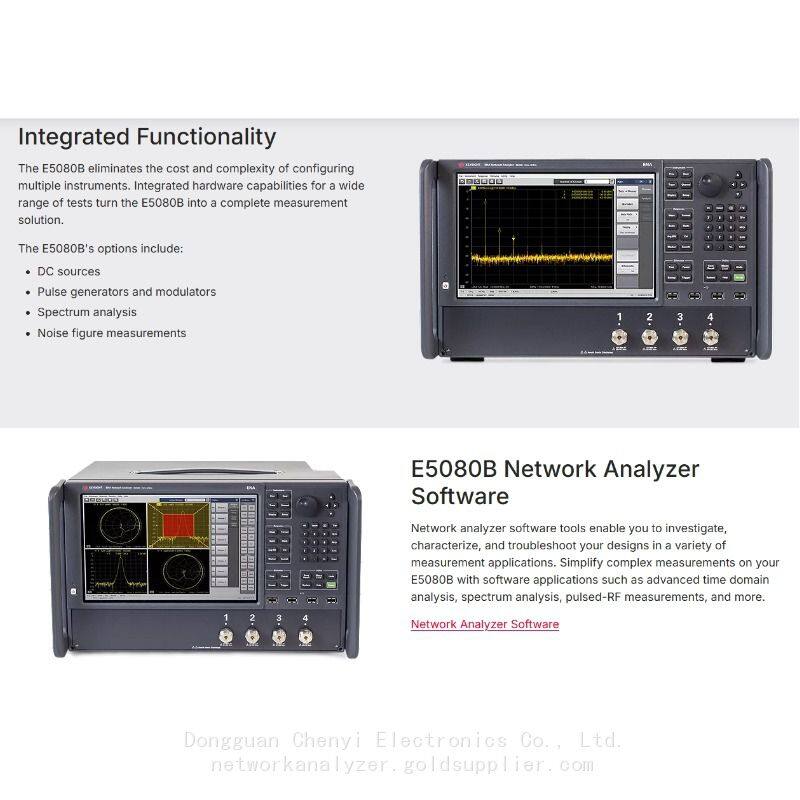

The E5080B eliminates the cost and complexity of configuring multiple instruments. Integrated hardware capabilities for a wide range of tests turn the E5080B into a complete measurement solution.

The E5080B's options include:

▶DC sources

▶Pulse generators and modulators

▶Spectrum analysis

▶Noise figure measurements

E5080B Network Analyzer Software

Network analyzer software tools enable you to investigate, characterize, and troubleshoot your designs in a variety of measurement applications. Simplify complex measurements on your E5080B with software applications such as advanced time domain analysis, spectrum analysis, pulsed-RF measurements, and more.

Advance Software, Flexible Hardware, Best Performance

The E5080B vector network analyzer provides a more comprehensive solution for R&D and manufacturing test with robust software application coverage, flexible hardware, and fast cycle time to accelerate your device characterization.
