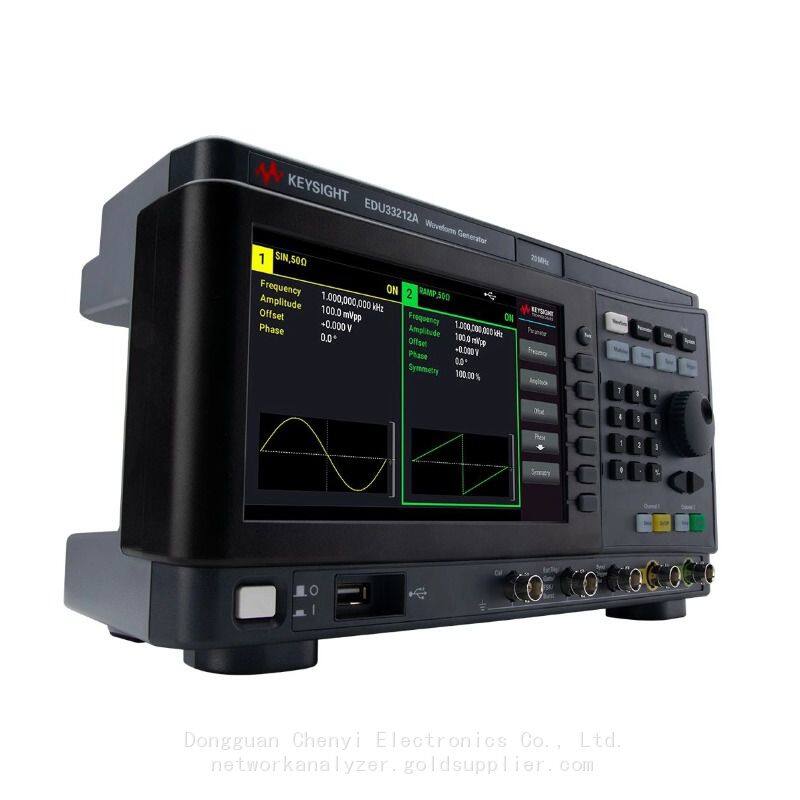

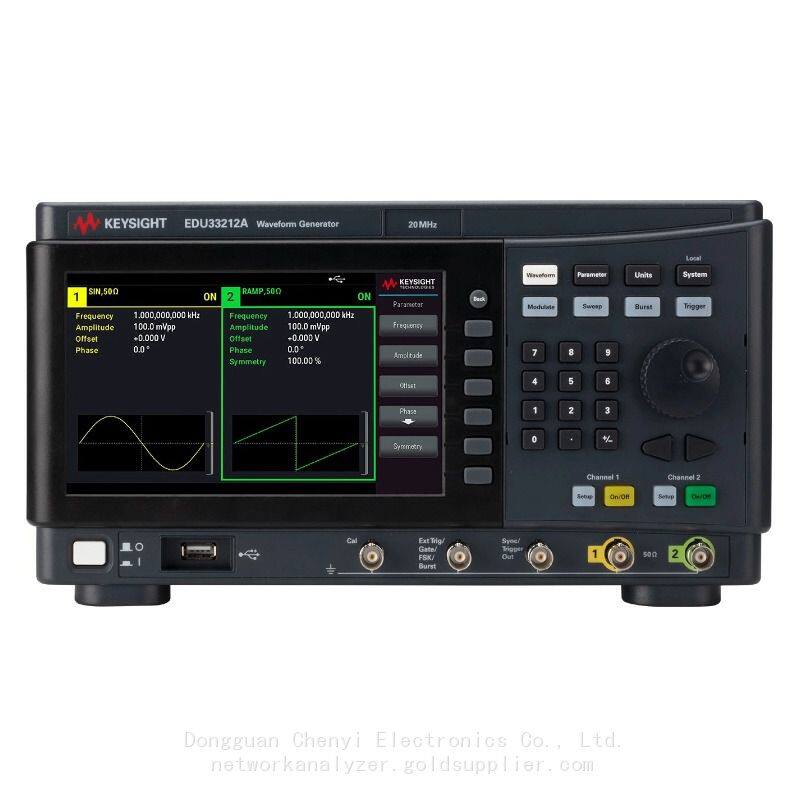

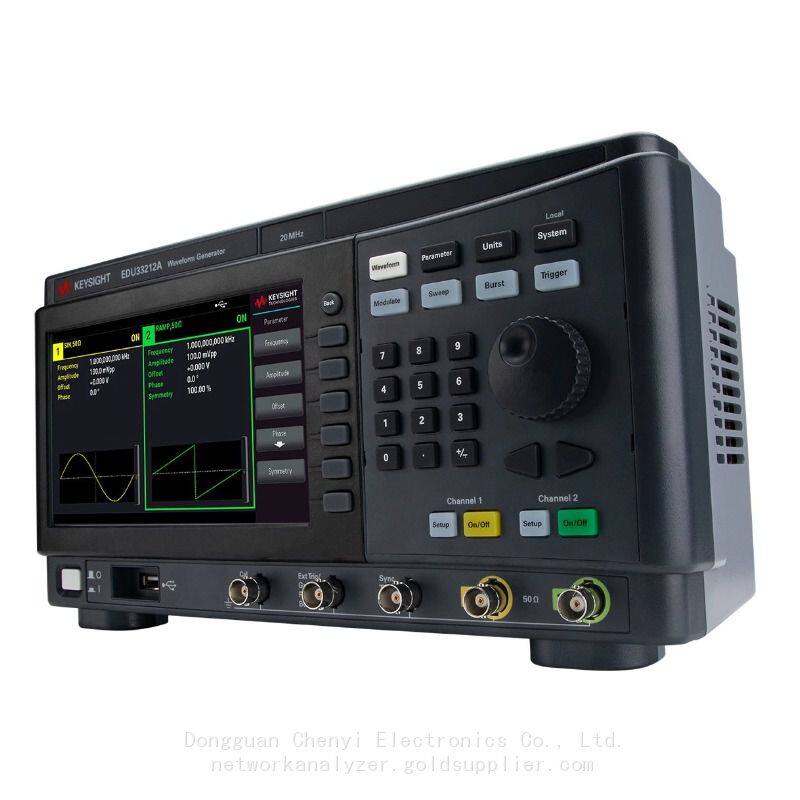

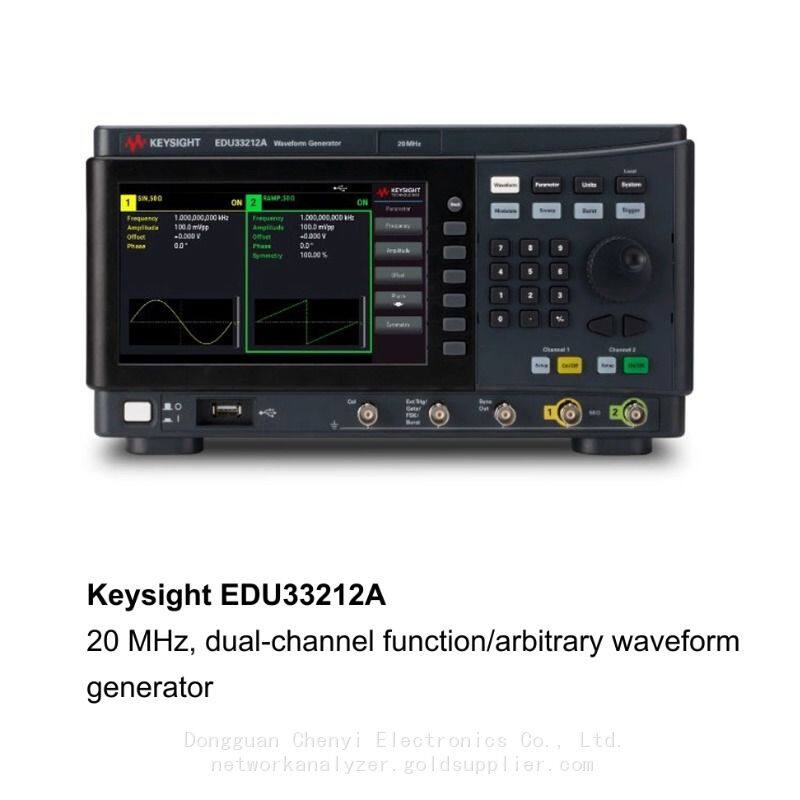

The EDU33212A dual channel function / arbitrary waveform generator provides uncompromising performance

for dual channel synchronized test output signals.

Highlights

Entry Level Never Look This Good

The EDU33210 series function / arbitrary waveform generators brings uncompromising performance to an entry-level

function generator. Get all the basic functions and waveforms with the most stable, lowest distortion function generator

 in its class. It also provides features that  give you the capabilities and flexibility you need to get your job done quickly,

no matter how complex. An intuitive, information-packed front-panel interface enables you to easily recall where you left

off when your attention is focused elsewhere.

▶USB  and LAN IO  interfaces for remote connectivity

▶20 MHz sine and square waveforms

▶Ramp, triangle, noise, pulse generation with a variable edge, and DC waveform

▶Received Keysight's PathWave BenchVue software to enable PC control

▶Six built-in modulation types and 17 popular waveforms to simulate typical application for testing

▶7-inch color display for simultaneous parameter set up, signal viewing, and editing

▶16-bit arbitrary waveform capability with memory up to 8 M samples per channel

Features

▶Use the signature 7-inch color display for a simultaneous parameter set up, signal viewing, and editing

▶Get six built-in modulation types and 17 popular waveforms to simulate typical applications for testing

▶Acquire 16-bit arbitrary waveform capability with memory up to 8 M samples per channel

▶Begin using the USB and LAN IO interface for remote connectivity

▶Receive Keysight's PathWave BenchVue software to enable PC control

Simple set up and operation

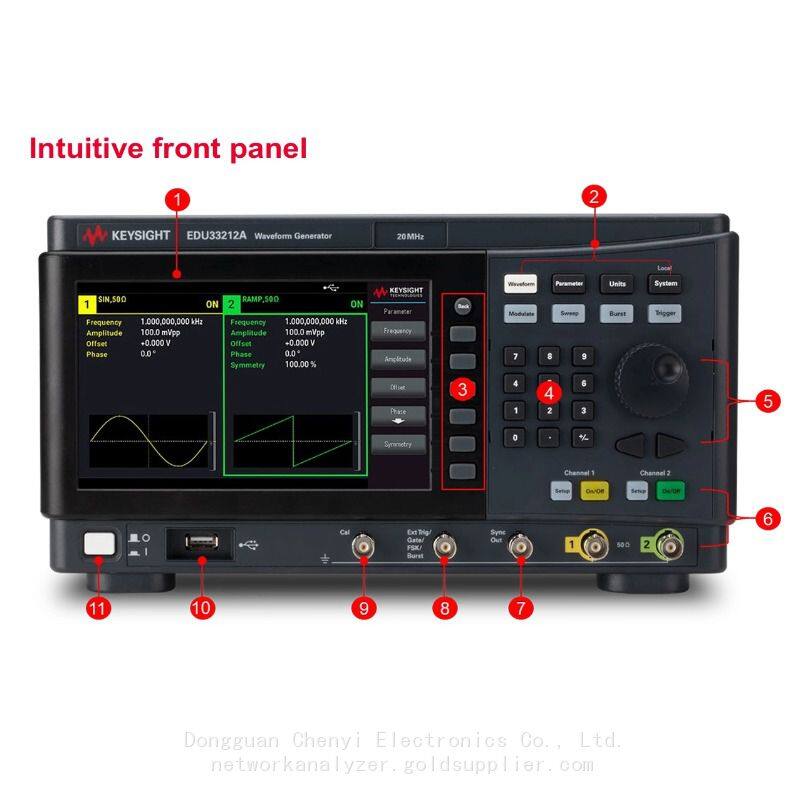

The 7-inch wide video graphics array (WVGA) color display gives you both the waveform setting and other parameters

in one view. The EDU33212A 20 MHz dual-channel function/arbitrary waveform generator can simultaneously display

both channels' waveform information. Color-coded keypads  along with display and output connectors help you prevent

 set up and connection errors.

The EDU33210 Series 20 MHz function/arbitrary waveform generators ship standard with USB and LAN connectivity,

making it easy for remote access and control. It supports operation using standard commands for programmable

instruments (SCPI) language, interchangeable virtual instruments (IVI) driver, web browser, or Keysight's Pathwave

BenchVue software.

The EDU33210 Series 20 MHz function/arbitrary waveform generators feature a built-in USB memory port enabling

 you to store setup parameters with a USB flash drive. This feature maximizes efficiency when you need to restore the

 same setup into all the function/arbitrary waveform generators in your lab. It also enables you to load the arbitrary

waveform signal to the function generator quickly.

Signal Integrity: Outputting the Signals You Expect

If your generator is introducing spurious signals or harmonics, you will have a challenging time producing reliable

designs. To be successful, you need to test with clean, precise, low-noise signals. The EDU33210 Series function/arbitrary

waveform generators has the highest signal fidelity,  so you can generate the exact waveforms you need for your most

challenging measurements.  You can be confident you are seeing your design's characteristics and not your waveform

generator's measurements.

Arbitrary Waveform with Deep Memory

Are you looking to test your design with long, complex waveforms with a variety of anomalies? The EDU33210 Series

function/arbitrary waveform generators come standard with up to 8 M samples per channel deep memory at a maximum

of 1 M sample per waveform, providing sufficient memory to overcome your test challenges.
