Highlights

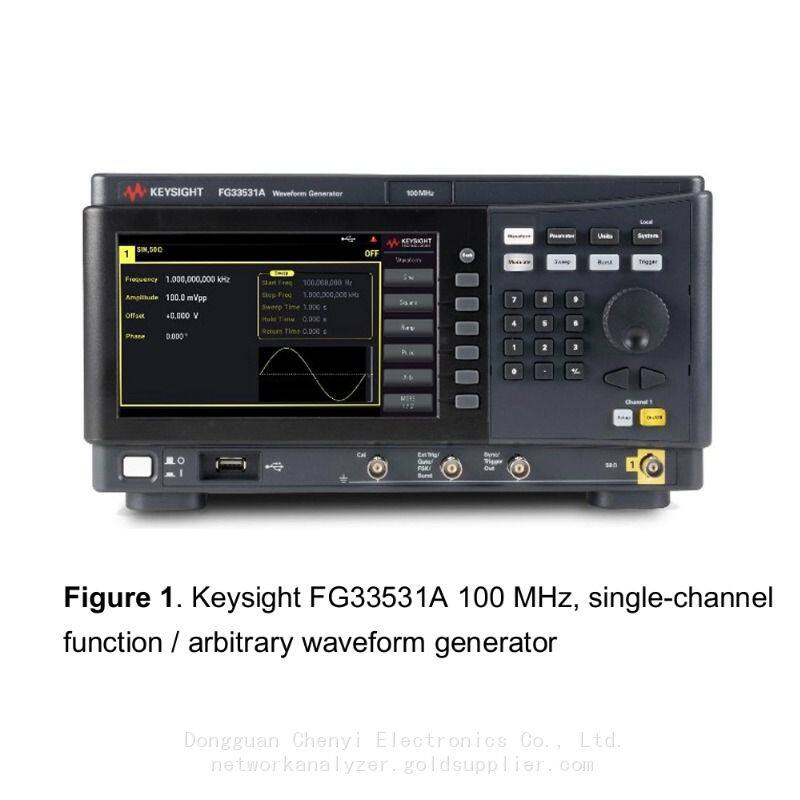

Perform accurate hardware design validation using Keysight FG33531A function / waveform generators, equipped

with pro-level technology from advanced models. Trueform technology employs a virtual variable clock with advanced

 filtering techniques to track the waveform’s sample rate. The technology gives you predictable low jitter, low harmonic

 distortion, and high signal integrity to deliver a true representation of your programmed waveform. The FG33531A also

 comes with built-in 16-bit arbitrary waveform generation capabilities and waveform builder software.

Similar to all products in the Smart Bench Essentials Plus family, it comes with a three-year warranty and KeysightCare

technical support to de-risk your project. The FG33531A enables you to do the following:

▶View and edit signal, or set up parameters simultaneously on a 7-inch color display.

▶Achieve jitter of less than 50 ps.

▶Maintain total harmonic distortion of less than 0.06%.

▶Enable 16-bit arbitrary waveform capability with up to 16 M samples per channel memory.

▶Simulate typical test applications with six built-in modulation types and 17 popular waveforms.

Introduction

The Keysight FG33530 Series function / arbitrary waveform generators offer up to 100 MHz with all the

essential signals and features you expect, including modulation, sweep, and burst capabilities. Enjoy

seamless navigation through the intuitive front-panel interface, allowing you to effortlessly adjust and

review your settings for maximum efficiency. The Trueform technology replicates every waveform point,

providing up to 16 Mega Samples (MSa) record length per channel. Enhance your waveform creation

process with Keysight BenchVue software and BenchLink Waveform Builder Pro software, making it

simple to create and edit even your most complex waveforms.

Features

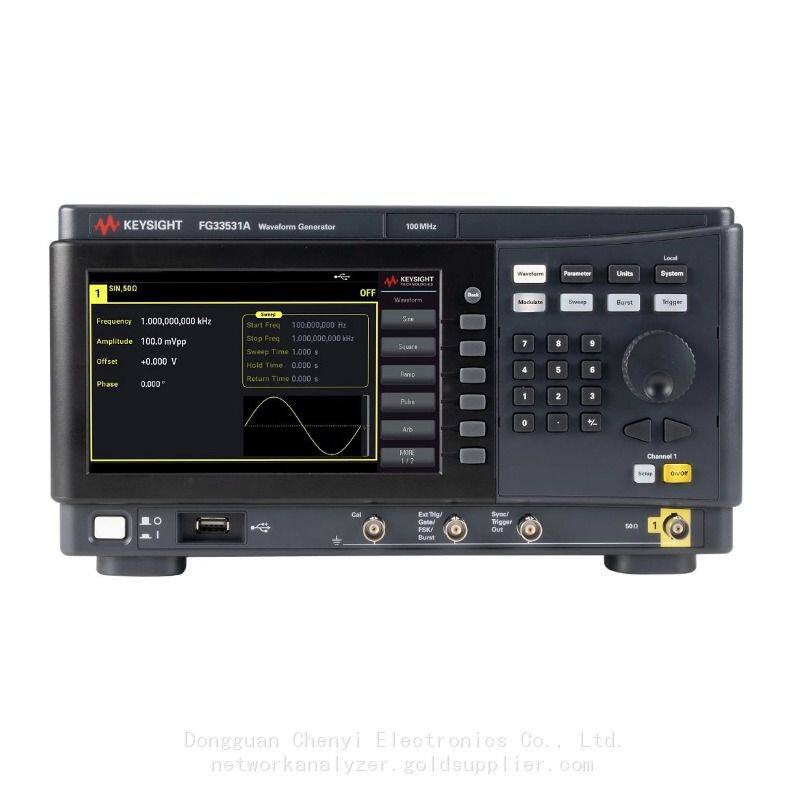

▶Seven-inch color display for parameter setup, signal viewing, and editing.

▶Jitter of less than 50 ps.

▶Total harmonic distortion of less than 0.06%.

▶Six built-in modulation types and seventeen popular waveforms to simulate typical applications for testing.

▶16-bit arbitrary waveform capability with maximum sampling rate of 320 MSa/s and memory of up to

16 MSa per channel.

Ease of use: Simple setup and operation

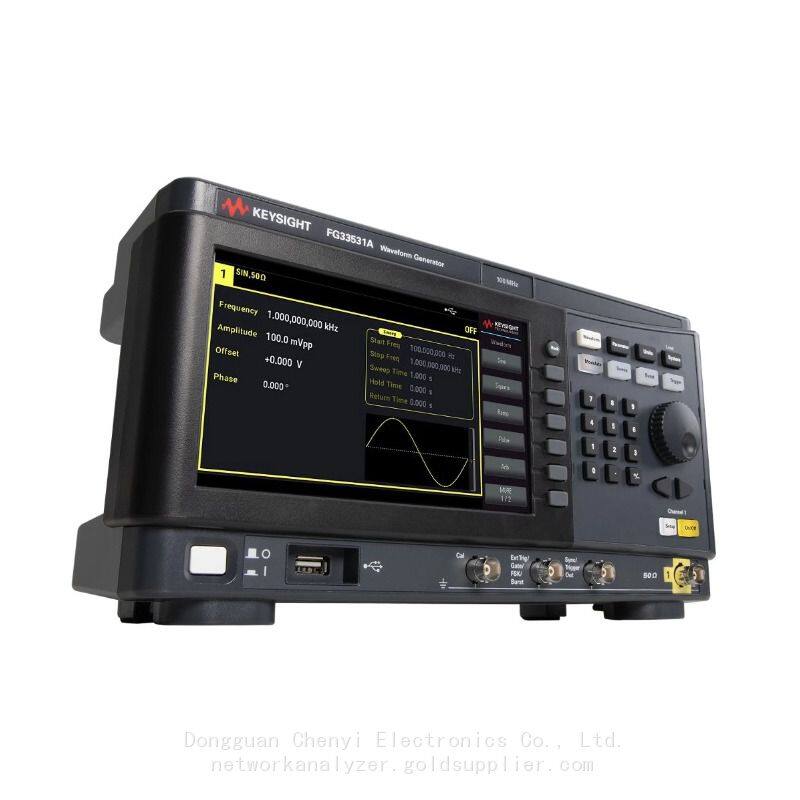

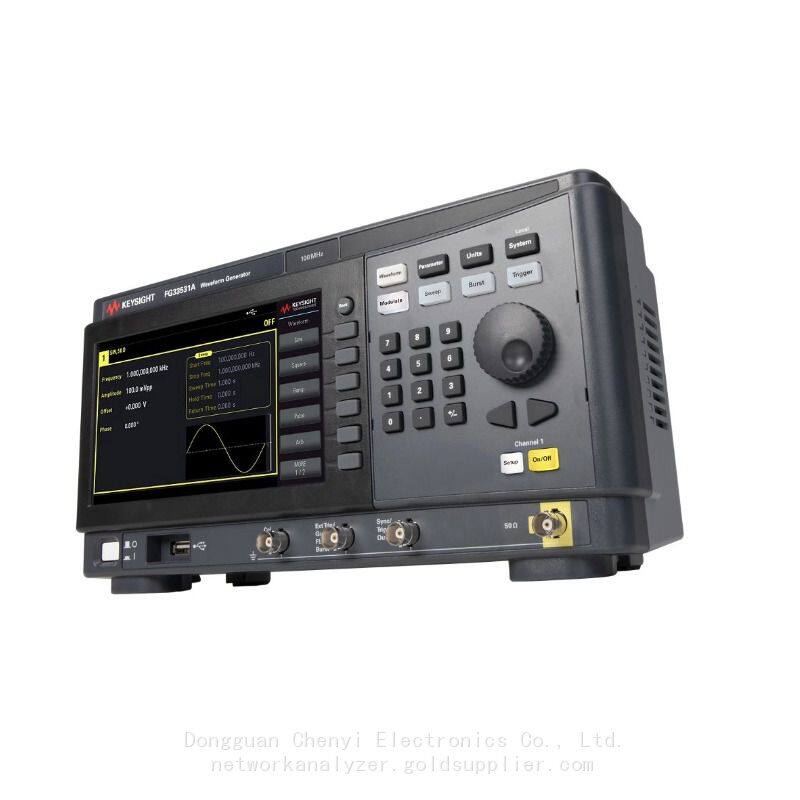

The seven-inch color display shows the waveform setting and other parameter details in one view. The

large display also accommodates dual-channel displays, providing an uncluttered view and making

complex tasks seamless, such as setting up sync, sum, track, or differential waveform generation from

both channels. Color-coded keypads, display, and output connectors help prevent setup and connection

errors.

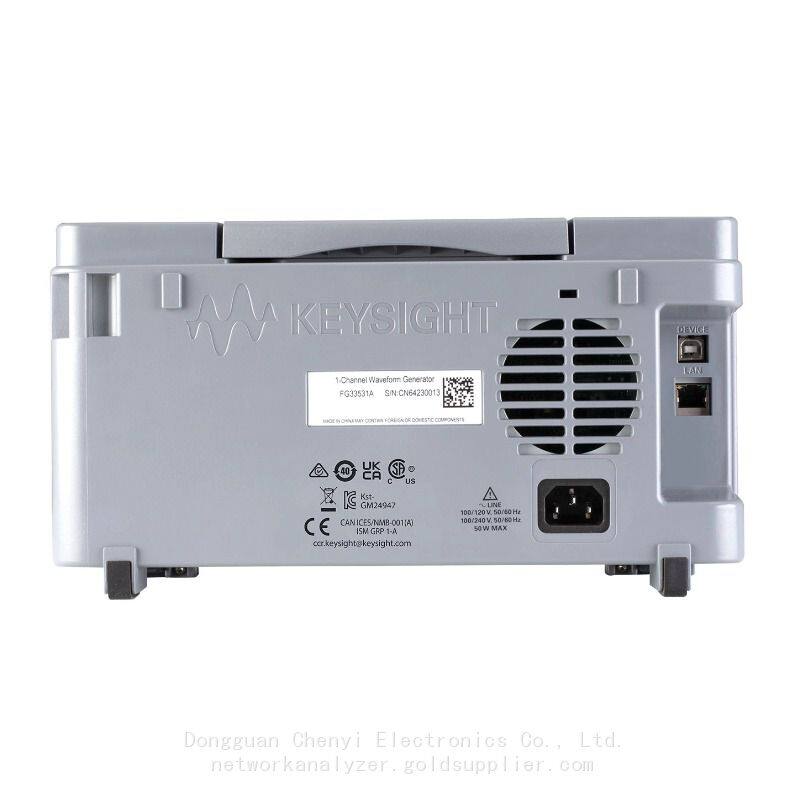

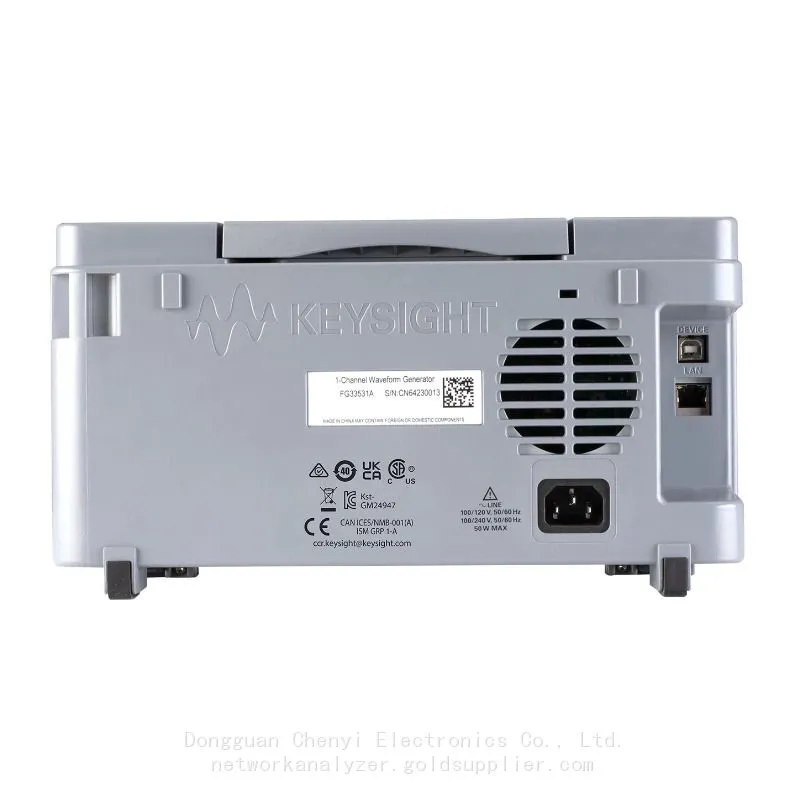

The FG33530 Series ships standard with USB and LAN connectivity, making it easy to access and

control remotely. It supports operation using Standard Commands for Programmable Instruments (SCPI)

language, Interchangeable Virtual Instruments (IVI) driver, web browser, or Keysight's Pathwave

BenchVue software.

Additionally, it features a built-in USB memory port, enabling you to store setup parameters with a USB

flash drive. This feature maximizes efficiency when restoring the same setup into all the function /

arbitrary waveform generators in your lab. It also lets you quickly import your arbitrary waveform file to the

function generator.
