Signal Hound VSG25A Vector Signal Generator: Core Product Advantages

Signal Hound VSG25A Vector Signal Generator : Core Product Advantages

As a high-performance, compact vector signal generator, the Signal Hound VSG25A is engineered to meet the rigorous demands of modern RF testing and development workflows. Covering a frequency range of 9 kHz to 25 GHz with a 160 MHz real-time bandwidth, it stands out in the market by combining professional-grade signal generation capabilities with exceptional portability, user-friendly operation, and cost-effectiveness. Whether for 5G Sub-6 GHz/FR2 research, Wi-Fi 6E/7 device testing, or microwave component validation, the VSG25A delivers tangible value to engineers, researchers, and technicians. Below are its key product advantages that set it apart from competitors.

1. Broad Frequency Coverage & High Real-Time Bandwidth for Versatile Testing

The VSG25A’s extended frequency range (9 kHz to 25 GHz) and 160 MHz real-time bandwidth (RTBW) make it adaptable to a wide spectrum of RF applications, from low-frequency IoT sensor testing to high-frequency 5G millimeter-wave (mmWave) and satellite communication system development. This broad coverage eliminates the need for multiple signal generators to address different frequency bands, simplifying test setups and reducing equipment redundancy.

The 160 MHz RTBW is particularly critical for testing modern wideband wireless standards, such as 5G NR (with 100 MHz channel bandwidth) and Wi-Fi 7 (supporting up to 320 MHz channel bandwidth via multi-link operation). It enables the generation of high-fidelity, wideband signals with precise modulation characteristics, ensuring accurate simulation of real-world wireless environments. For example, engineers testing 5G mmWave transceivers can use the VSG25A to generate 28 GHz or 39 GHz signals with QAM-256 modulation, validating receiver sensitivity and demodulation performance under realistic conditions.

2. Compact, USB-Powered Design for Portable & Flexible Deployment

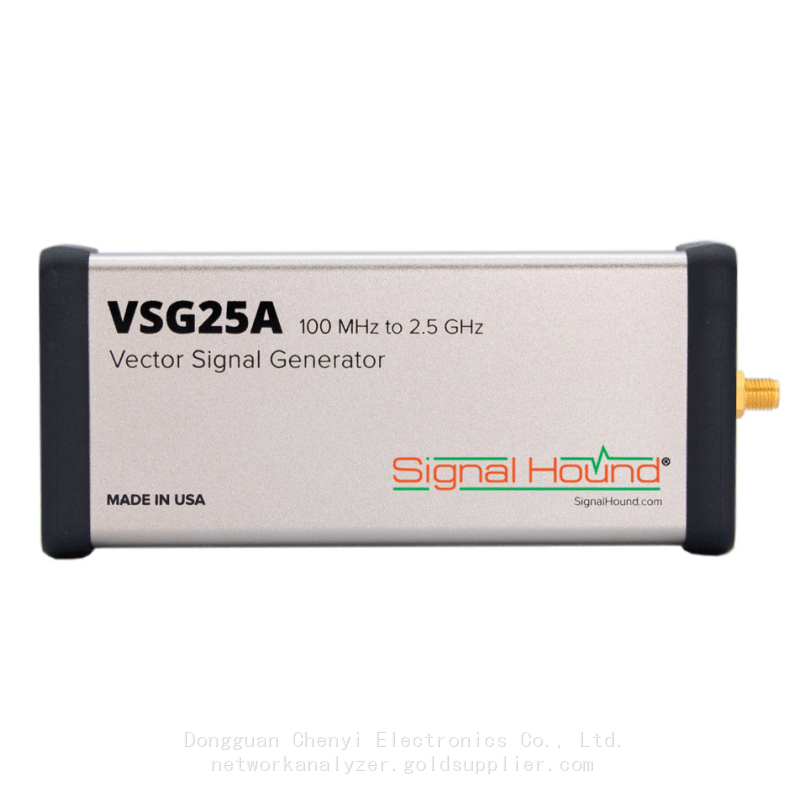

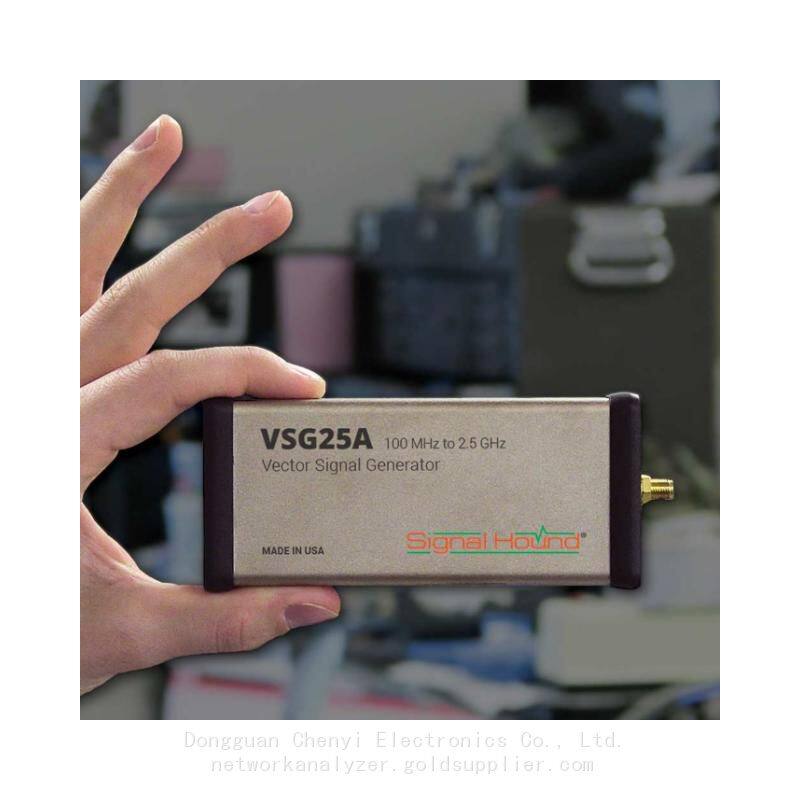

Unlike bulky, rack-mounted benchtop signal generators, the VSG25A features a compact, lightweight form factor (6.5 x 4.5 x 1.5 inches) and is powered via USB 3.0 or an optional external 12V DC power supply. This portability revolutionizes RF testing by enabling on-site fieldwork, remote test site deployments, and space-constrained lab setups—scenarios where traditional benchtop equipment is impractical or impossible to use.

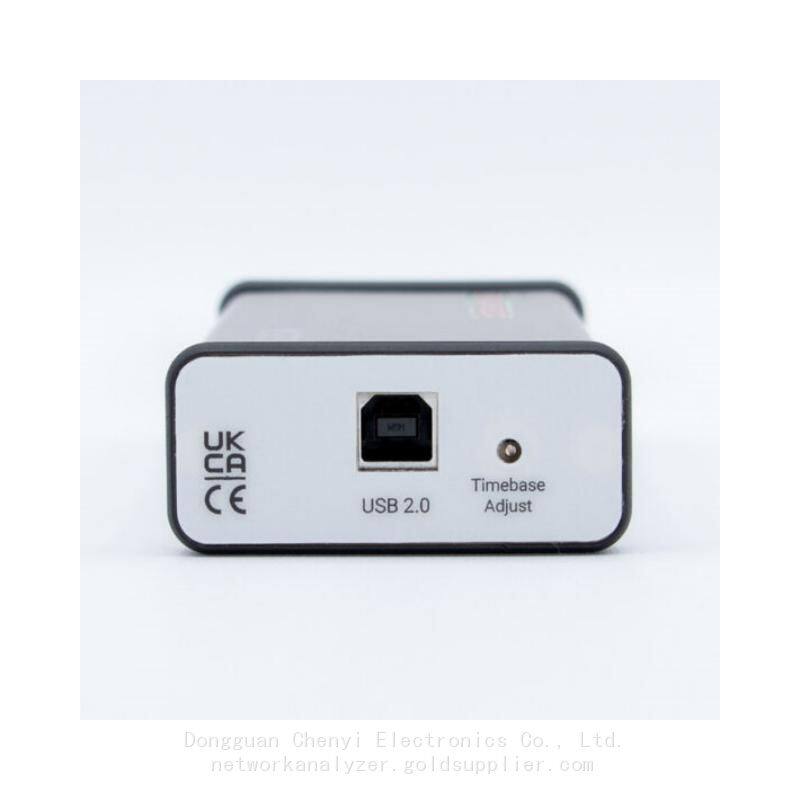

For field engineers troubleshooting 5G base station issues or researchers conducting outdoor propagation studies, the VSG25A can be easily paired with a laptop and portable battery pack, providing hours of continuous operation. In lab environments, its small footprint allows for dense test station configurations, maximizing workspace utilization. Additionally, its USB connectivity ensures plug-and-play integration with most Windows and Linux systems, eliminating the need for complex power wiring or dedicated rack space.

3. High Signal Fidelity & Modulation Capability for Accurate Testing

The VSG25A delivers exceptional signal quality, a critical factor for reliable RF testing. It boasts low phase noise (-130 dBc/Hz at 1 GHz, 10 kHz offset) and high output power accuracy (±0.5 dB), ensuring that generated signals closely mimic real-world transmission conditions. Low phase noise is essential for testing sensitive receivers, as it minimizes interference and ensures accurate measurement of receiver noise floor and sensitivity.

Furthermore, the VSG25A supports a comprehensive range of modulation formats, including digital modulations (QPSK, 16QAM, 64QAM, 256QAM, OFDM) and analog modulations (AM, FM, PM). It also offers custom IQ waveform playback, allowing engineers to import pre-recorded real-world signals (e.g., captured 5G or Wi-Fi traffic) for realistic scenario testing. This versatility makes it suitable for a wide range of applications, from basic component testing (e.g., amplifier linearity) to advanced system-level validation (e.g., 5G end-to-end performance testing).

4. Seamless Integration with Spike Software & Signal Hound Ecosystem

The VSG25A is fully integrated with Signal Hound’s intuitive Spike RF analysis software, providing a unified user interface for both signal generation and spectrum analysis when paired with Signal Hound spectrum analyzers (e.g., SA124B, SM435C). This integration streamlines testing workflows by allowing engineers to control both instruments from a single software platform, eliminating the need to switch between multiple applications.

Spike software offers a wealth of features to enhance the VSG25A’s functionality, including easy-to-use modulation parameter configuration, waveform editing tools, and real-time signal monitoring. For automated testing, the VSG25A supports Signal Hound’s SDK (Software Development Kit), enabling custom script development in Python, C/C++, or .NET. This allows integration with automated test systems (ATE) for high-volume production testing or long-term unattended research experiments.

5. Cost-Effective Solution Without Compromising Performance

One of the most significant advantages of the VSG25A is its exceptional cost-effectiveness. Traditional benchtop vector signal generators with comparable frequency coverage and bandwidth often cost two to three times more than the VSG25A. By leveraging innovative design and manufacturing techniques, Signal Hound delivers professional-grade performance at a fraction of the cost, making high-quality RF signal generation accessible to small and medium-sized enterprises (SMEs), academic research labs, and budget-constrained teams.

Additionally, the VSG25A eliminates hidden costs associated with traditional equipment. It includes free, lifetime access to Spike software and firmware updates, ensuring that users always have access to the latest features and performance improvements without paying for expensive software licenses. Its low power consumption also reduces long-term operational costs compared to energy-intensive benchtop generators.

6. Robust Build Quality for Reliable Long-Term Operation

Designed for both lab and field use, the VSG25A features a rugged, durable enclosure that can withstand the rigors of transportation and harsh testing environments. It undergoes rigorous quality control testing to ensure consistent performance over a wide temperature range (-10°C to 55°C), making it suitable for deployment in industrial settings, outdoor test sites, and other challenging environments.

Signal Hound also backs the VSG25A with a 2-year warranty and responsive technical support, providing users with peace of mind and minimizing downtime in case of issues. This reliability makes it a trusted tool for critical testing applications where equipment failure could lead to costly delays.

Conclusion: A Versatile, Accessible Tool for Modern RF Testing

The Signal Hound VSG25A combines broad frequency coverage, high signal fidelity, portability, and cost-effectiveness into a single, powerful vector signal generator. Its ability to adapt to diverse testing scenarios—from lab-based R&D to field-based troubleshooting—makes it an invaluable tool for engineers and researchers working with the latest RF technologies. By eliminating the trade-offs between performance, portability, and cost that plague traditional signal generators, the VSG25A empowers teams to conduct more accurate, efficient, and flexible RF testing, accelerating product development and ensuring optimal performance of wireless systems.
