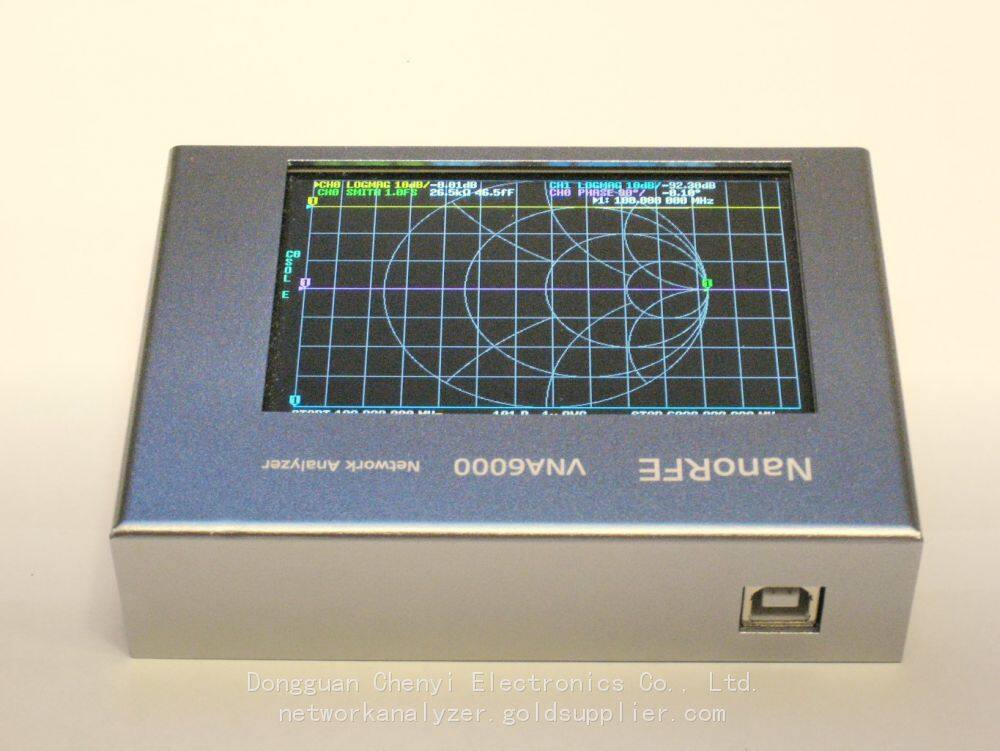

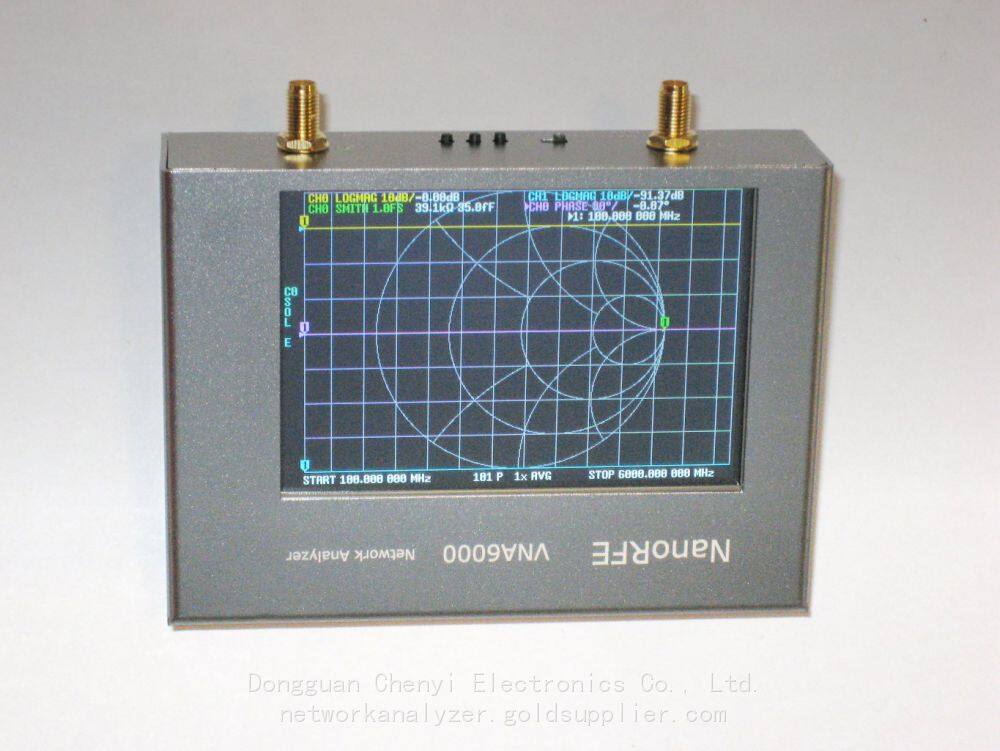

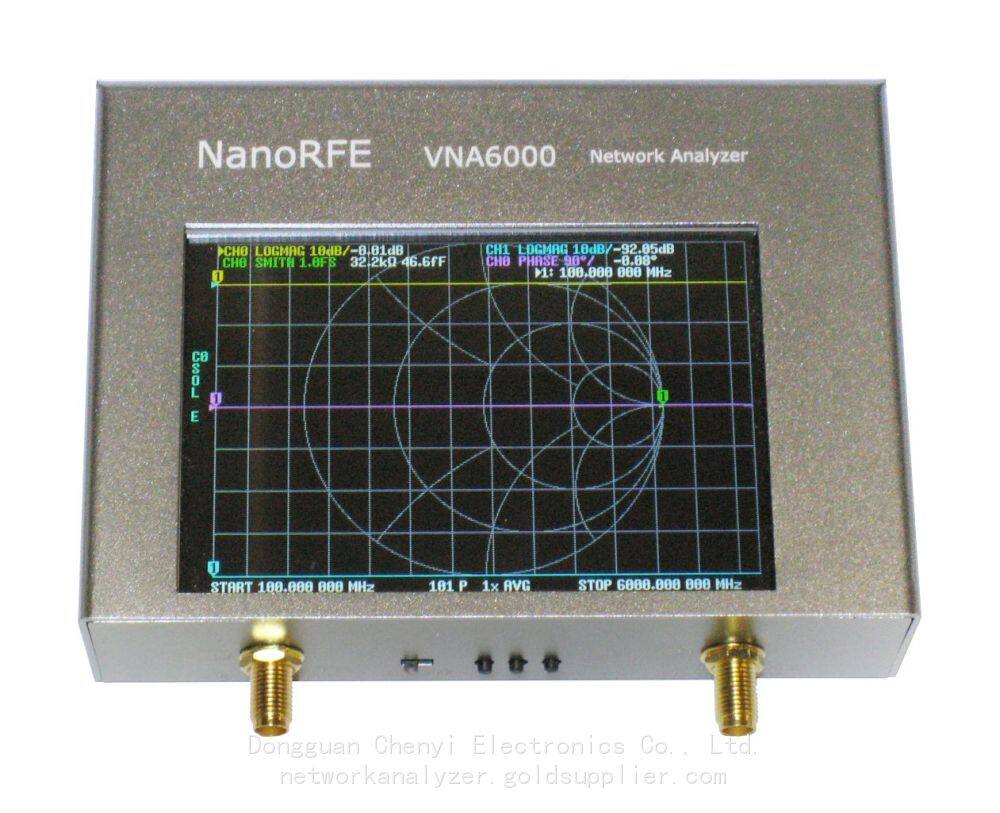

Quick Look at NanoRFE VNA6000‑B Portable Vector Network Analyzer

VNA6000‑B, launched by NanoRFE, is a dual-port, portable VNA operating within the frequency range of 50kHz–6GHz. It is designed for on-site rapid verification and R&D debugging. Its core advantages include a high dynamic range of 110dB, low drift, and a lightweight design weighing only 300g. It is suitable for testing antennas, RF components, cables, filters, and other related items

Key capabilities and applicable scenarios Core measurement reflection tests: return loss, VSWR, impedance (including Smith chart), used for antenna matching, cable breakpoints, and filter reflection characteristics.

Transmission testing: insertion loss, gain/attenuation, phase, and group delay, used for amplifier flatness, cable loss, and phase consistency.

Time domain analysis: TDR/TDT can locate cable/connector breakpoints, making it suitable for engineering troubleshooting.

Typical scenario antenna engineering: base station/drone/Wi-Fi antenna tuning and matching, rapid verification of resonant frequency points and bandwidth.

RF components: passband/stopband and insertion loss testing of filters, power dividers, couplers, and attenuators.

Cable and connector: Loss, standing wave, and breakpoint positioning, suitable for on-site maintenance.

R&D and production line: small signal module debugging, production line sampling inspection, and quick after-sales diagnosis.

Amateur radio: shortwave/UHF/VHF antenna and tuner tuning

Quick start and basic steps of calibration process: Power on and preheat for 10-15 minutes to stabilize the local oscillator.

Set the frequency sweep range (start/end or center/span).

Perform SOL/SOLT calibration (Short/Open/Load/Thru) and save to the slot.

Connect the DUT and select the display format (LOGMAG/PHASE/SMITH/SWR, etc.).

Mark key frequency points and export Touchstone/CSV/PNG data.

Calibration points must be re-calibrated after each change of line, temperature, or frequency to ensure accuracy.

Give priority to using original factory calibration parts, and conduct regular cleaning and calibration.

The NanoVNA‑QT/Saver software for PC allows for customizable calibration kits and advanced calibration.

Common problems and troubleshooting: Measurement inaccuracy / trace jitter RF connector issues: SMA looseness / oxidation / dirt → Tighten with a 0.5–0.8N·m torque wrench, and clean with anhydrous ethanol.

Uncalibrated or calibration failure: Re-execute SOL/SOLT. Recalibration is required if the temperature changes by > 5℃.

IFBW and average setting: For narrowband testing, use 0.8–1.7kHz and increase the average times to reduce noise.

Electromagnetic interference: Keep away from WiFi, frequency converters, and motors. If necessary, add shielding.

Phase drift / unstable startup requires a warm-up period of ≥10 minutes, and exposure to strong winds and direct sunlight should be avoided.

Enable built-in temperature compensation to maintain environmental stability.

If there are issues with startup or connection, try using a short and thick USB3.0 cable to avoid using the Hub for power supply.

Long press the power button to reset, or enter DFU mode to update the firmware.

When there is a driver/software mismatch, use the original VNA View software.

Use and maintenance advice: For connector protection, cover the protective cap when not in use for a long period of time to avoid touching the inner conductor with bare hands.

Power supply specification: Prioritize stable USB power supply; use 18650 flat-top batteries to avoid over-discharge.

Firmware update: Regularly updated through VNA View to fix drift and linearity issues.

Data management: Save measurement data in a timely manner for easy tracing and comparison.
